Sandvik Coromant
5765268

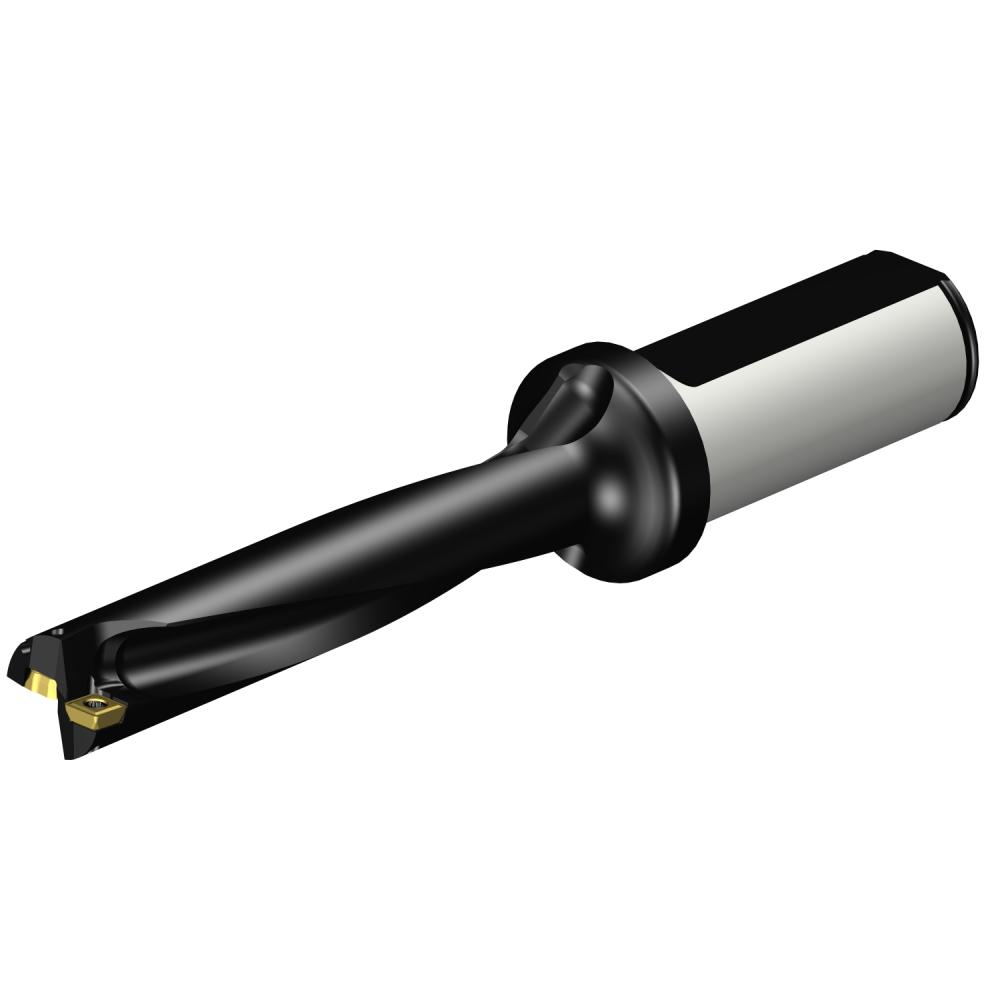

Sandvik Coromant 5765268
Specifications
| Cutting Diameter (Metric) | 17.5 |
|---|---|
| Shank Diameter (Metric) | 25 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 0.69 |
| Shank Diameter (Inch) | 0.98 |
| Depth x Diameter Ratio | 5 x D |
| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 17.5 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 25 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D1750L25-05 |
| Overall Length (Decimal) | 6.42 |
| Overall Length (Metric) | 163 |
| Functional Length (Decimal) | 4.2 |
| Point Length (Decimal) | 0.01 |
| Point Length (Metric) | 0.31 |
| Functional Length (Metric) | 106.69 |
| Body Length (Decimal) | 3.58 |
| Body Length (Metric) | 91 |
| Usable Length (Decimal) | 3.47 |
| Usable Length (Metric) | 88 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.4 |
| Usable Length Diameter Ratio | 5.029 |
| Torque | 0.9 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Body Length (Inch) | 3.58 |
| Max. Adjustment Limit (Decimal) | 0.02 |
| Max. Adjustment Limit (Metric) | 0.5 |
| Max. Rotational Speed | 13500 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.732 LB |
| Height Packed Product Metric | 50 mm |
| Height Packed Product Imperial | 1.969 inch |
| ISO Code (packed) | 880-D1750L25-05 |
| Length Packed Product Metric | 165 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D1750L25-05 |
| Length Packed Product Imperial | 6.496 inch |
