Sandvik Coromant
5765357

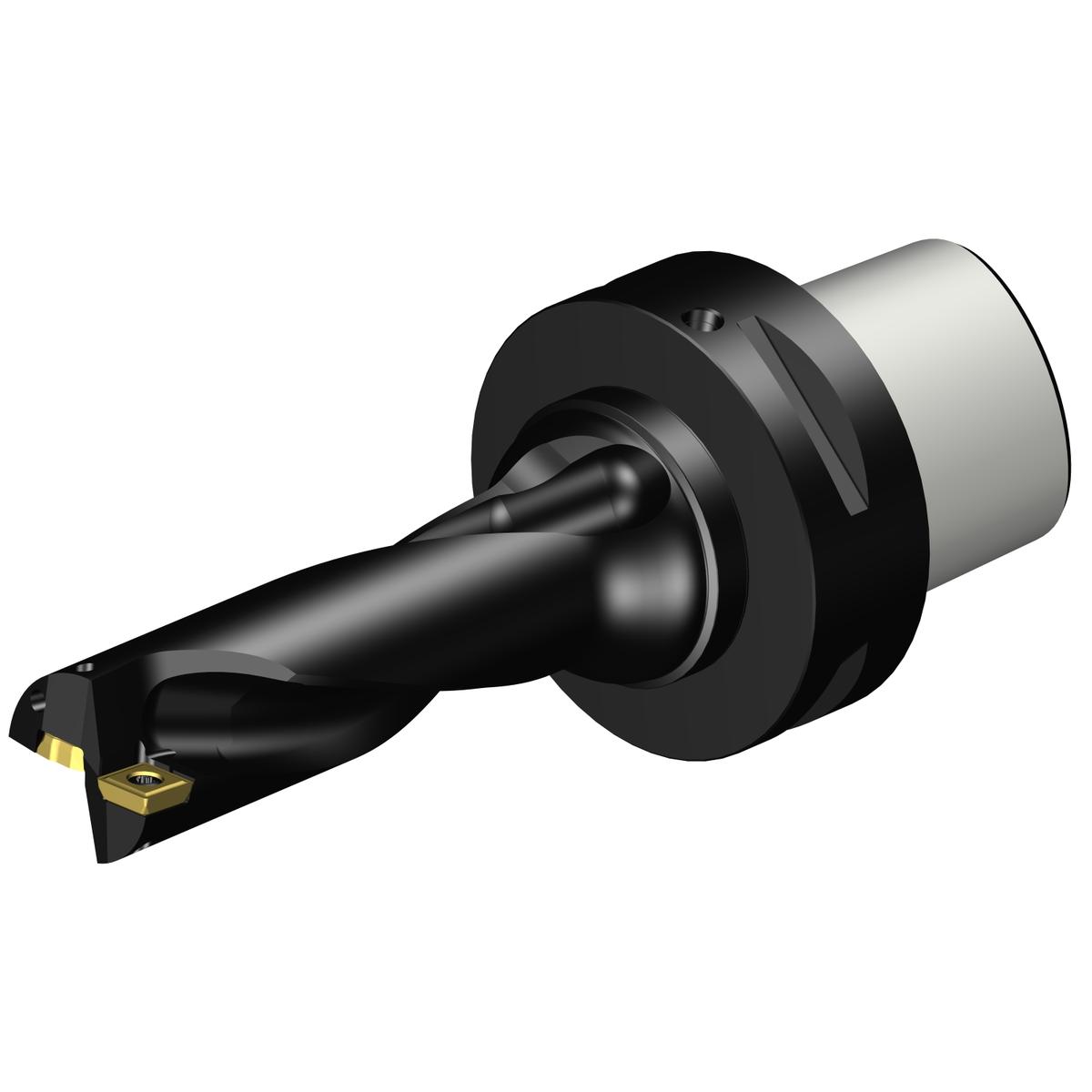

Sandvik Coromant 5765357
Specifications
| Cutting Diameter (Metric) | 26 |
|---|---|
| Shank Diameter (Metric) | 63 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 1.02 |
| Connection Size | C6 |
| Shank Diameter (Inch) | 2.48 |
| Depth x Diameter Ratio | 3 x D |
| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 26 mm |
| Shank Diameter | 63 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D2600C6-03 |
| Overall Length (Decimal) | 6.38 |
| Overall Length (Metric) | 162 |
| Functional Length (Decimal) | 4.86 |
| Point Length (Decimal) | 0.02 |
| Point Length (Metric) | 0.52 |
| Functional Length (Metric) | 123.48 |
| Body Length (Decimal) | 3.19 |
| Body Length (Metric) | 81 |
| Usable Length (Decimal) | 3.07 |
| Usable Length (Metric) | 78 |
| Functional Diameter (Decimal) | 1.73 |
| Functional Diameter (Metric) | 44 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.25 |
| Usable Length Diameter Ratio | 3 |
| Torque | 1.4 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Body Length (Inch) | 3.19 |
| Max. Adjustment Limit (Decimal) | 0.04 |
| Max. Adjustment Limit (Metric) | 0.9 |
| Max. Rotational Speed | 16000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.249 LB |
| Height Packed Product Metric | 83 mm |
| Height Packed Product Imperial | 3.268 inch |
| ISO Code (packed) | 880-D2600C6-03 |
| Length Packed Product Metric | 171 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D2600C6-03 |
| Length Packed Product Imperial | 6.732 inch |
| EAN Code | 12069422 |
