Sandvik Coromant
5765430

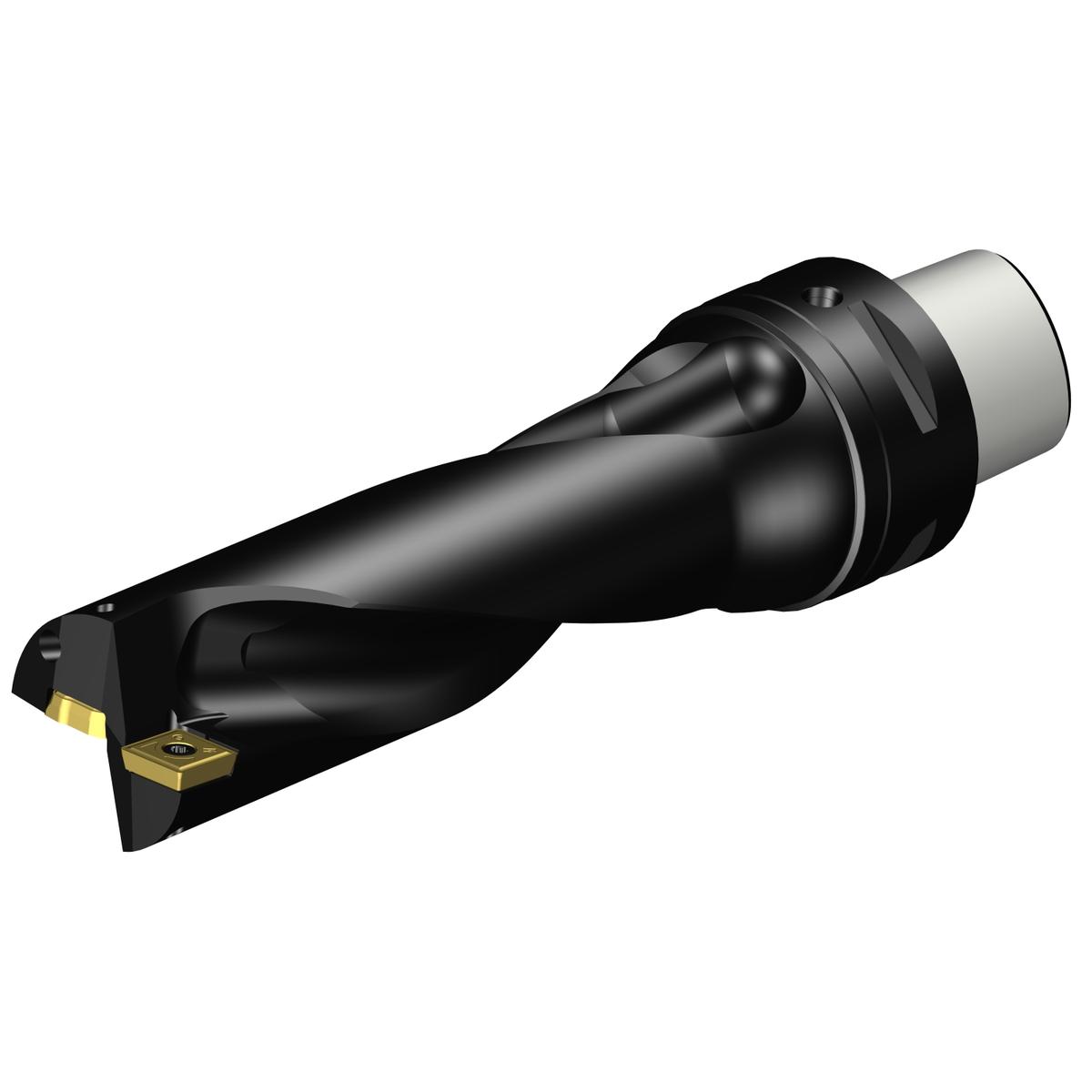

Sandvik Coromant 5765430
Specifications
| Cutting Diameter (Metric) | 38 |
|---|---|
| Shank Diameter (Metric) | 50 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 1.5 |
| Connection Size | C5 |
| Shank Diameter (Inch) | 1.97 |
| Depth x Diameter Ratio | 3 x D |
| Short Description | corodrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 38 mm |
| Shank Diameter | 50 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D3800C5-03 |
| Overall Length (Decimal) | 7.72 |
| Overall Length (Metric) | 196 |
| Functional Length (Decimal) | 6.51 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.69 |
| Functional Length (Metric) | 165.31 |
| Body Length (Decimal) | 4.65 |
| Body Length (Metric) | 118 |
| Usable Length (Decimal) | 4.49 |
| Usable Length (Metric) | 114 |
| Functional Diameter (Decimal) | 1.38 |
| Functional Diameter (Metric) | 35 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.25 |
| Usable Length Diameter Ratio | 3 |
| Torque | 2 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Body Length (Inch) | 4.65 |
| Max. Adjustment Limit (Decimal) | 0.04 |
| Max. Adjustment Limit (Metric) | 1.13 |
| Max. Rotational Speed | 16000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.496 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | 880-D3800C5-03 |
| Length Packed Product Metric | 222 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D3800C5-03 |
| Length Packed Product Imperial | 8.74 inch |
