Sandvik Coromant
5765439
Sandvik Coromant 5765439
Specifications
| Cutting Diameter (Metric) | 24 |
|---|---|
| Shank Diameter (Metric) | 25 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 0.95 |
| Shank Diameter (Inch) | 0.98 |
| Depth x Diameter Ratio | 4 x D |

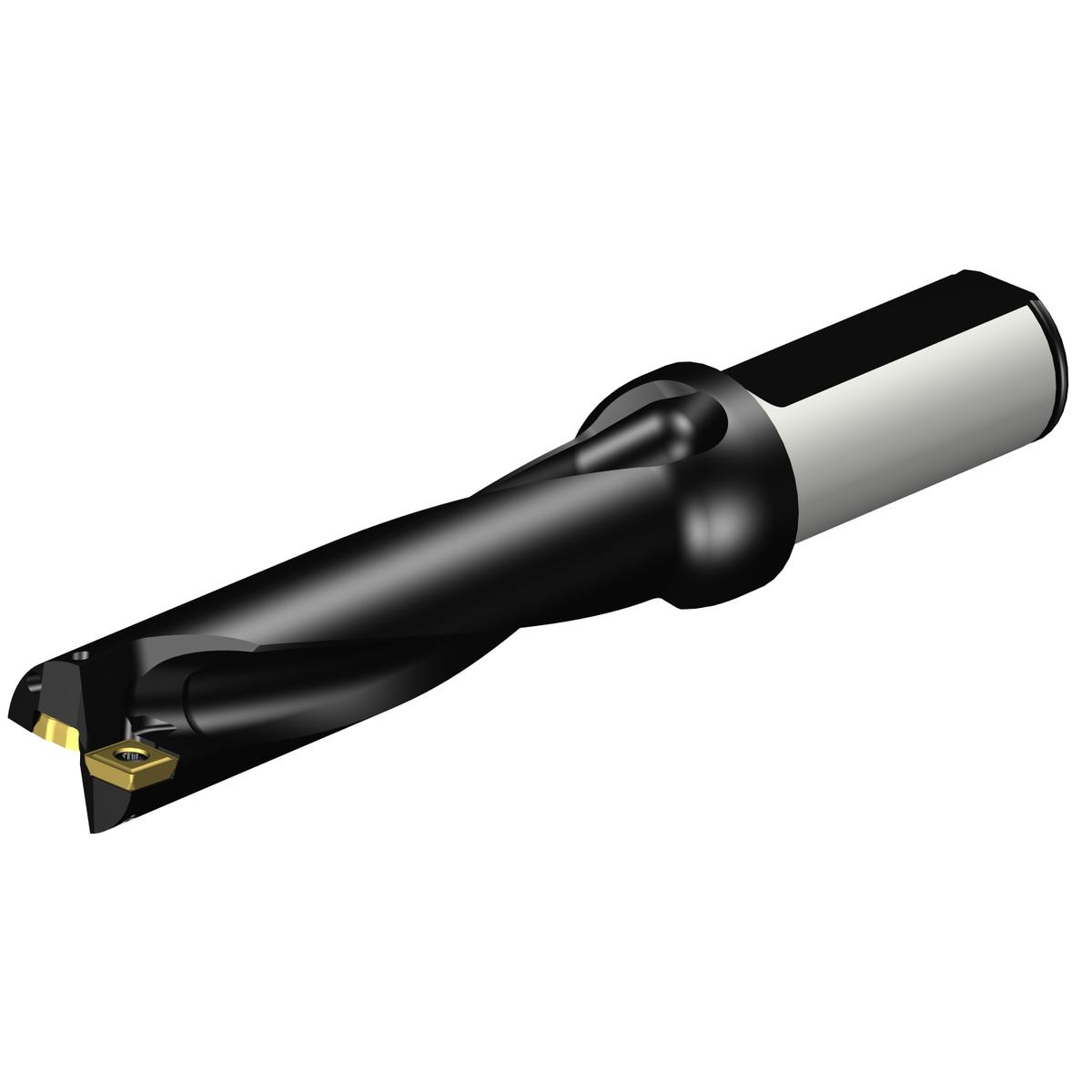

| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 24 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 25 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D2400L25-04 |
| Overall Length (Decimal) | 6.89 |
| Overall Length (Metric) | 175 |
| Functional Length (Decimal) | 4.67 |
| Point Length (Decimal) | 0.02 |
| Point Length (Metric) | 0.47 |
| Functional Length (Metric) | 118.53 |
| Body Length (Decimal) | 3.94 |
| Body Length (Metric) | 100 |
| Usable Length (Decimal) | 3.78 |
| Usable Length (Metric) | 96 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.4 |
| Usable Length Diameter Ratio | 4 |
| Torque | 1.4 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Body Length (Inch) | 3.94 |
| Max. Adjustment Limit (Decimal) | 0.04 |
| Max. Adjustment Limit (Metric) | 1.1 |
| Max. Rotational Speed | 15500 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.944 LB |
| Height Packed Product Metric | 45 mm |
| Height Packed Product Imperial | 1.772 inch |
| ISO Code (packed) | 880-D2400L25-04 |
| Length Packed Product Metric | 210 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D2400L25-04 |
| Length Packed Product Imperial | 8.268 inch |
