Sandvik Coromant
5765519

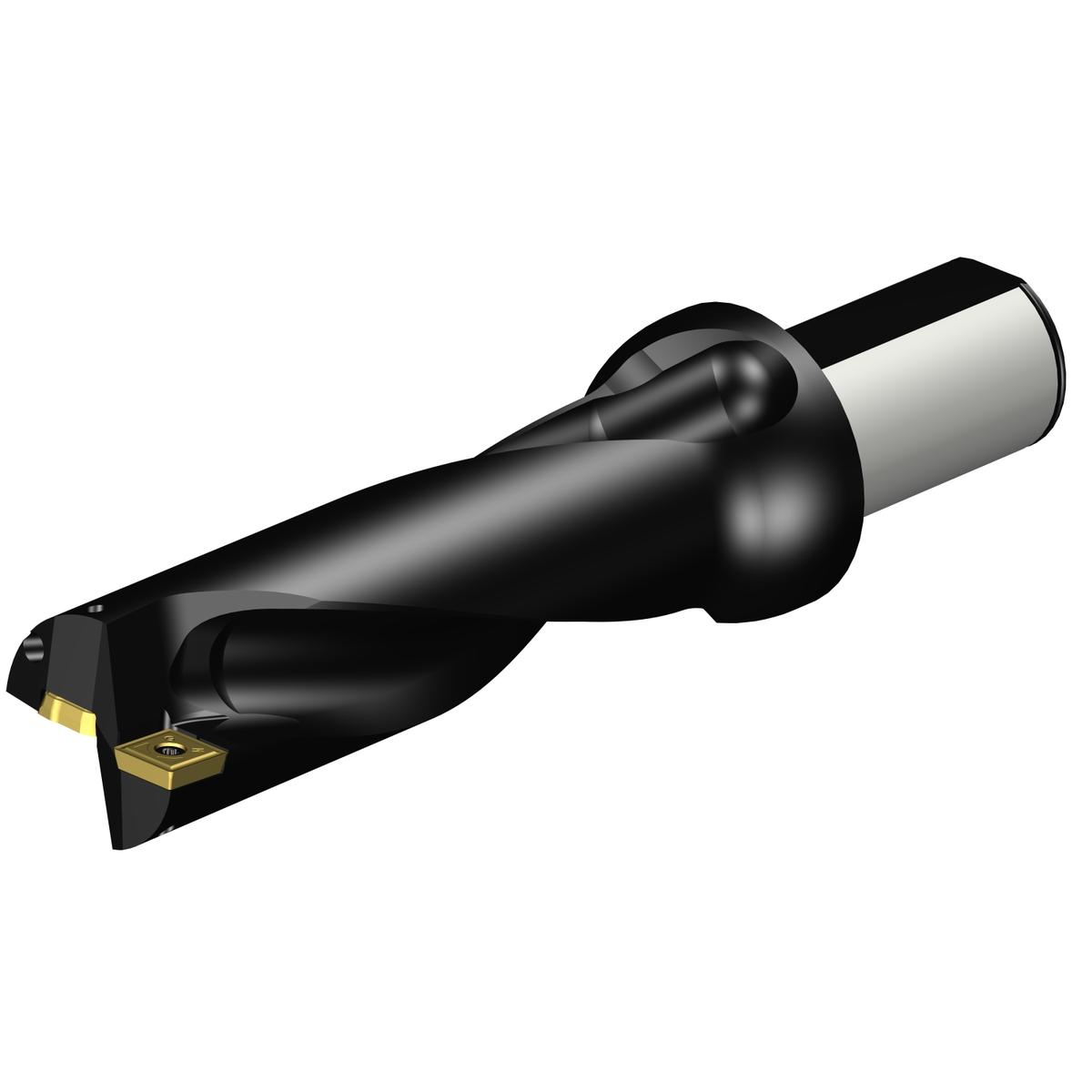

Sandvik Coromant 5765519
Specifications
| Cutting Diameter (Metric) | 47 |
|---|---|
| Shank Diameter (Metric) | 40 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 1.85 |
| Shank Diameter (Inch) | 1.58 |
| Depth x Diameter Ratio | 3 x D |
| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 47 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 40 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D4700L40-03 |
| Overall Length (Decimal) | 9.8 |
| Overall Length (Metric) | 249 |
| Functional Length (Decimal) | 7.02 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.79 |
| Functional Length (Metric) | 178.21 |
| Body Length (Decimal) | 5.75 |
| Body Length (Metric) | 146 |
| Usable Length (Decimal) | 5.55 |
| Usable Length (Metric) | 141 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.28 |
| Usable Length Diameter Ratio | 3 |
| Torque | 3 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Body Length (Inch) | 5.75 |
| Max. Adjustment Limit (Decimal) | 0.04 |
| Max. Adjustment Limit (Metric) | 1.1 |
| Max. Rotational Speed | 15000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 4.385 LB |
| Height Packed Product Metric | 83 mm |
| Height Packed Product Imperial | 3.268 inch |
| ISO Code (packed) | 880-D4700L40-03 |
| Length Packed Product Metric | 266 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D4700L40-03 |
| Length Packed Product Imperial | 10.472 inch |
