Sandvik Coromant
5765521

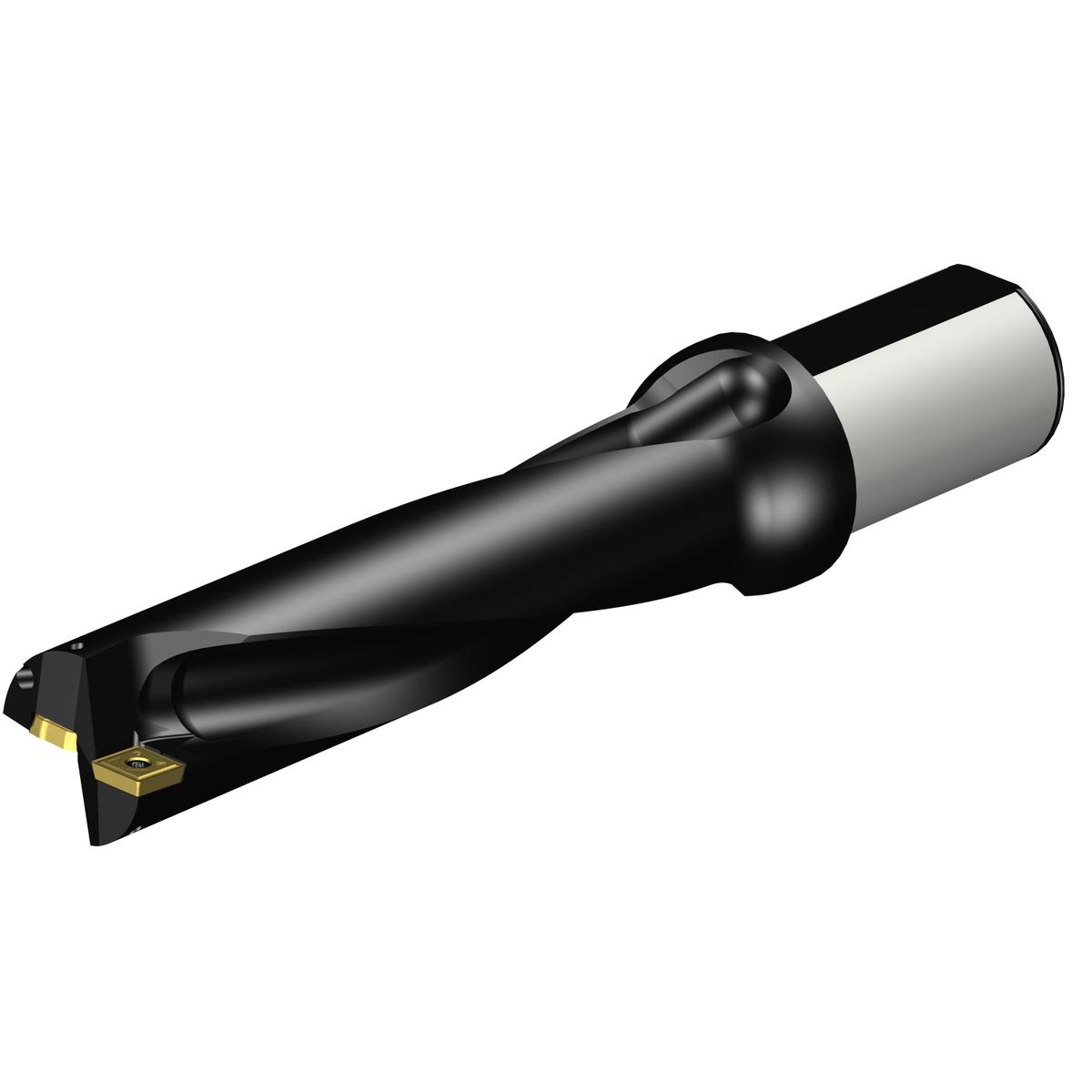

Sandvik Coromant 5765521
Specifications
| Cutting Diameter (Metric) | 47 |
|---|---|
| Shank Diameter (Metric) | 50 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 1.85 |
| Shank Diameter (Inch) | 1.97 |
| Depth x Diameter Ratio | 4 x D |
| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 47 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 50 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D4700L50-04 |
| Overall Length (Decimal) | 12.05 |
| Overall Length (Metric) | 306 |
| Functional Length (Decimal) | 8.87 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.75 |
| Functional Length (Metric) | 225.25 |
| Body Length (Decimal) | 7.60 |
| Body Length (Metric) | 193 |
| Usable Length (Decimal) | 7.4 |
| Usable Length (Metric) | 188 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.43 |
| Usable Length Diameter Ratio | 4 |
| Torque | 3 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Body Length (Inch) | 7.6 |
| Max. Adjustment Limit (Decimal) | 0.04 |
| Max. Adjustment Limit (Metric) | 1.1 |
| Max. Rotational Speed | 9000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 6.281 LB |
| Height Packed Product Metric | 100 mm |
| Height Packed Product Imperial | 3.937 inch |
| ISO Code (packed) | 880-D4700L50-04 |
| Length Packed Product Metric | 315 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D4700L50-04 |
| Length Packed Product Imperial | 12.402 inch |
