Sandvik Coromant
5765536

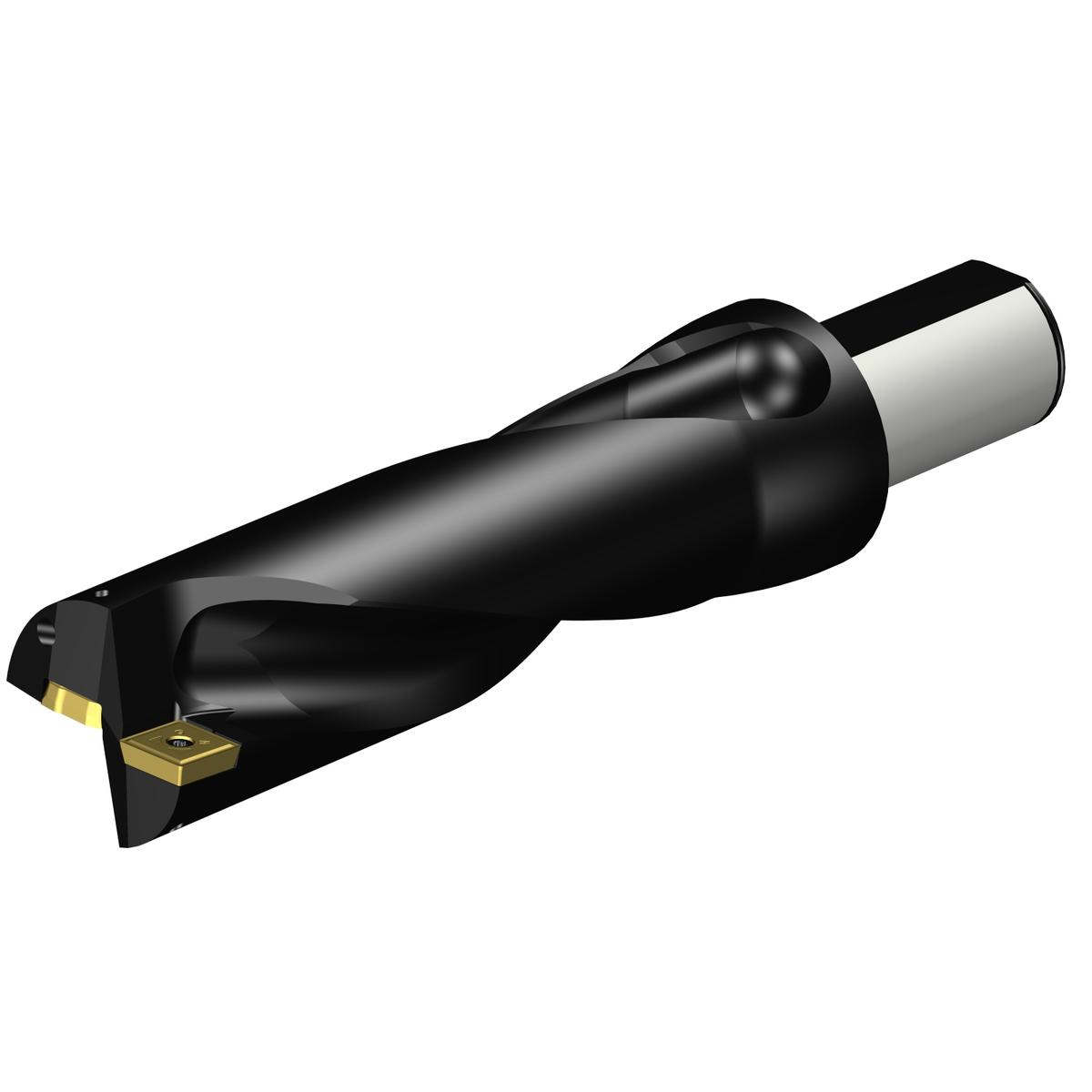

Sandvik Coromant 5765536
Specifications
| Cutting Diameter (Metric) | 56 |
|---|---|
| Shank Diameter (Metric) | 40 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 2.21 |
| Shank Diameter (Inch) | 1.58 |
| Depth x Diameter Ratio | 3 x D |
| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 56 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 40 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D5600L40-03 |
| Overall Length (Decimal) | 11.14 |
| Overall Length (Metric) | 283 |
| Functional Length (Decimal) | 8.35 |
| Point Length (Decimal) | 0.04 |
| Point Length (Metric) | 0.9 |
| Functional Length (Metric) | 212.1 |
| Body Length (Decimal) | 6.85 |
| Body Length (Metric) | 174 |
| Usable Length (Decimal) | 6.61 |
| Usable Length (Metric) | 168 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.3 |
| Usable Length Diameter Ratio | 3 |
| Torque | 3 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Body Length (Inch) | 6.85 |
| Max. Adjustment Limit (Decimal) | 0.06 |
| Max. Adjustment Limit (Metric) | 1.6 |
| Max. Rotational Speed | 5000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 6.301 LB |
| Height Packed Product Metric | 70 mm |
| Height Packed Product Imperial | 2.756 inch |
| ISO Code (packed) | 880-D5600L40-03 |
| Length Packed Product Metric | 302 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D5600L40-03 |
| Length Packed Product Imperial | 11.89 inch |
