Sandvik Coromant
5765700

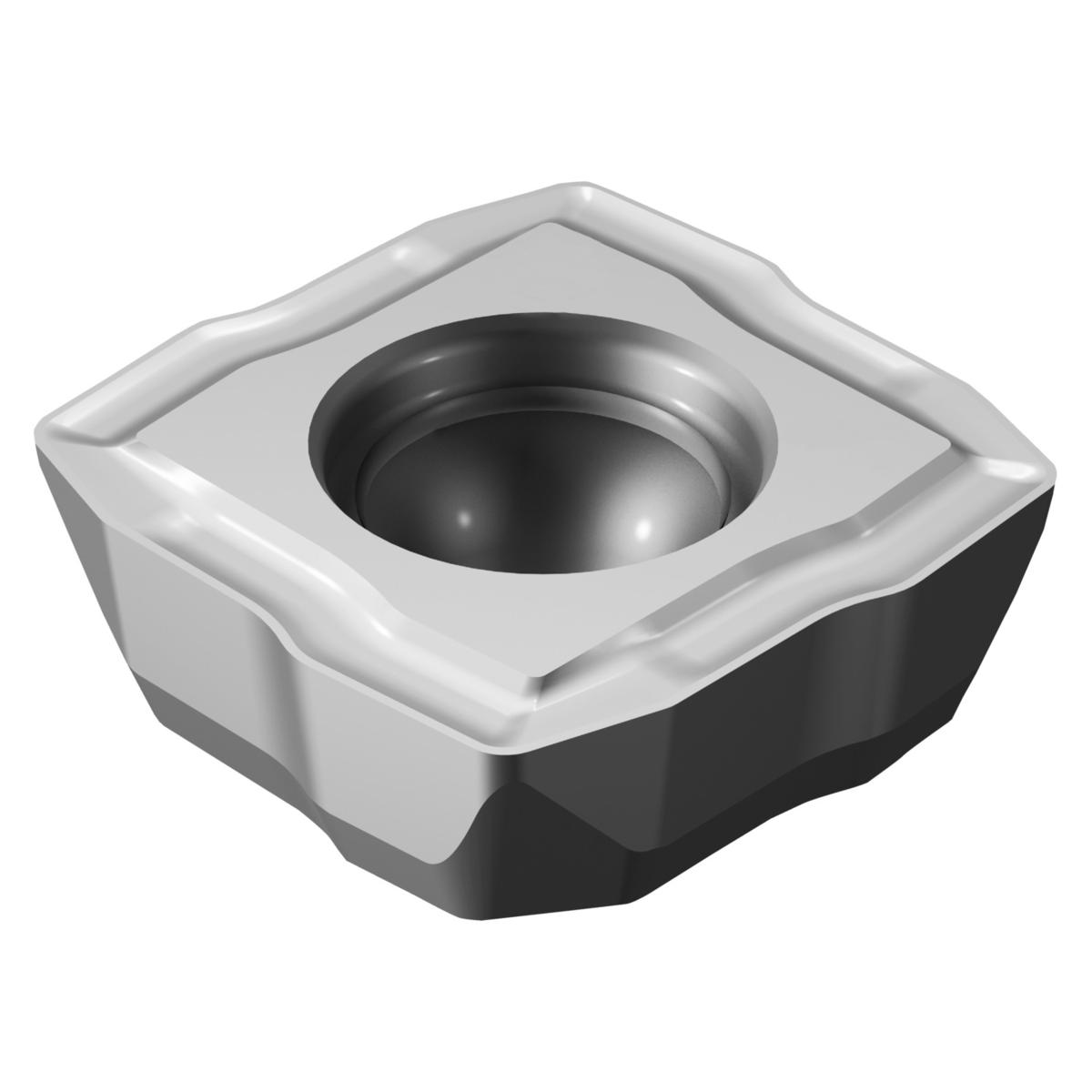

Sandvik Coromant 5765700
Specifications
| Corner Radius (Metric) | 0.8 |
|---|---|
| Type | Asymmetrical Point |
| Series | CoroDrill 880 |
| Coating/Finish | Uncoated |
| Material | WC |
| Corner Radius (Inch) | 0.03 |
| Chip Breaker Type | LM |
| Unit Of Measure | Metric |
| Style | 880 |
| Thickness | 4.5 mm |
| Grade | H13A |
| Thickness (Metric) | 4.5 |
| Short Description | CoroDrill® 880 insert for drilling |
| Size | 805 |
| Inscribed Circle Diameter | 14.85 mm |
| Corner Radius | 0.8 mm |
| Inscribed Circle Diameter (Decimal) | 0.59 |
| Inscribed Circle Diameter (Metric) | 14.85 |
| Thickness (Decimal) | 0.18 |
| ANSI Code | 880-08 05 08H-C-LM H13A |
| ISO Code | 880-08 05 08H-C-LM H13A |
| Fixing Hole Diameter (Decimal) | 0.19 |
| Fixing Hole Diameter (Metric) | 4.7 |
| Coating Process Type | Uncoat |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 15 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Insert Usage Code | Central |
| ISO Material Classification | NS |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.026 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | 880 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | 880-080508H-C-LMH13A |
| Insert Size | 0805 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-08 05 08H-C-LM H13A |
| Length Packed Product Imperial | 3.74 inch |
