Sandvik Coromant
5781862

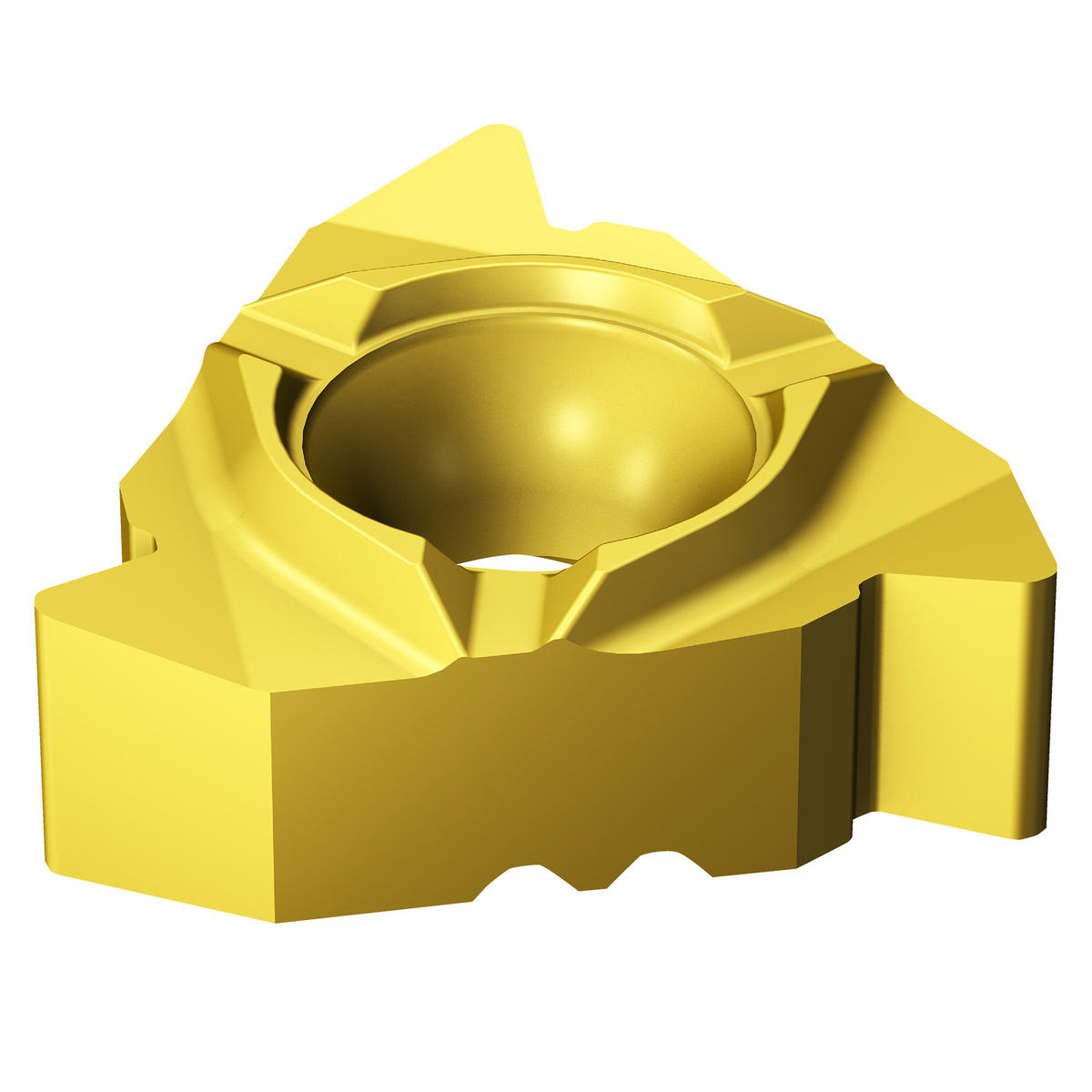

Sandvik Coromant 5781862
Specifications
| Insert Style | 266RG |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiAlN |
| Short Description | CoroThread® 266 insert for thread turning |
| Unit Of Measure | Metric |
| Grade | 1135 |
| Series | CoroThread 266 |
| Size | 16 |
| Thread Type | External |
| Thread Form | M60 |
| Thread Pitch | 0.5 mm |
| Inscribed Circle Diameter | 9.53 mm |
| Thread Profile Type | Full |
| Thickness | 3.97 mm |
| Chip Breaker Type | A |
| Thread Pitch (Decimal) | 0.02 |
| Thread Pitch (Metric) | 0.5 |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Thickness (Decimal) | 0.16 |
| Thickness (Metric) | 3.97 |
| ANSI Code | 266RG-16MM01A050M 1135 |
| ISO Code | 266RG-16MM01A050M 1135 |
| Hand of Insert | Right |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | PVD |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Thread Tolerance Class | IT 6 |
| Theoretical Thread Height (Decimal) | 0.02 |
| Theoretical Thread Height (Metric) | 0.37 |
| Thread Height Difference (Decimal) | 0.003 |
| Thread Height Difference (Metric) | 0.08 |
| Profile Distance EX (Decimal) | 0.02 |
| Profile Distance EX (Metric) | 0.5 |
| Profile Distance EY (Decimal) | 0.052 |
| Profile Distance EY (Metric) | 1.32 |
| Application | Turning, Threading |
| ISO Material Classification | PMKNSH |
| Country of Origin | Sweden |
| Base Item Number | 1187 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.012 LB |
| Height Packed Product Metric | 11 mm |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | 266RG-16MM01A050M1135 |
| Insert Size | 16 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 266RG-16MM01A050M 1135 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 12373826 |
