Sandvik Coromant
5845384
Sandvik Coromant 5845384
Specifications
| Shank Diameter (Metric) | 31.75 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 1.25 |
| Shank Type | Cylindrical |
| Series | Coromant EH |

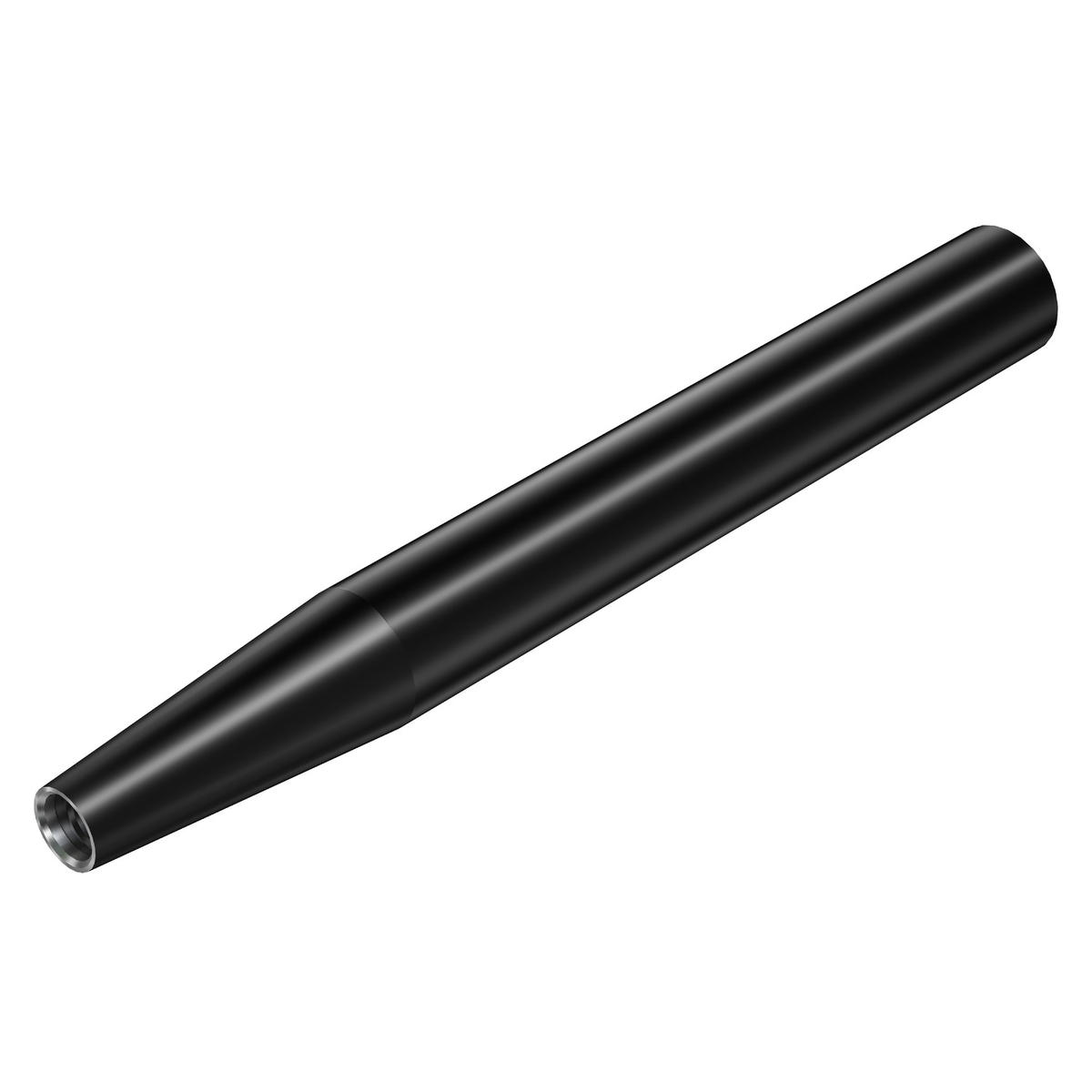

| Short Description | Cylindrical shank to Coromant EH adaptor |
| Unit Of Measure | Imperial |
| Shank Diameter | 1.25 Inch |
| Overall Length | 7.5 Inch |
| Overall Length (Decimal) | 7.5 |
| Overall Length (Metric) | 190.5 |
| ANSI Code | AE25-A32-CS-075 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 1.25 |
| Body Diameter (Metric) | 31.75 |
| Body Length (Decimal) | 1.65 |
| Body Length (Metric) | 42 |
| Body Half Taper Angle | 5 degrees |
| Torque (ft lbf) | 47.942 |
| Torque (NM) | 65 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | United States |
| Base Item Number | 2018 |
| Body Length (Inch) | 1.65 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 17000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.469 LB |
