Sandvik Coromant
5852667

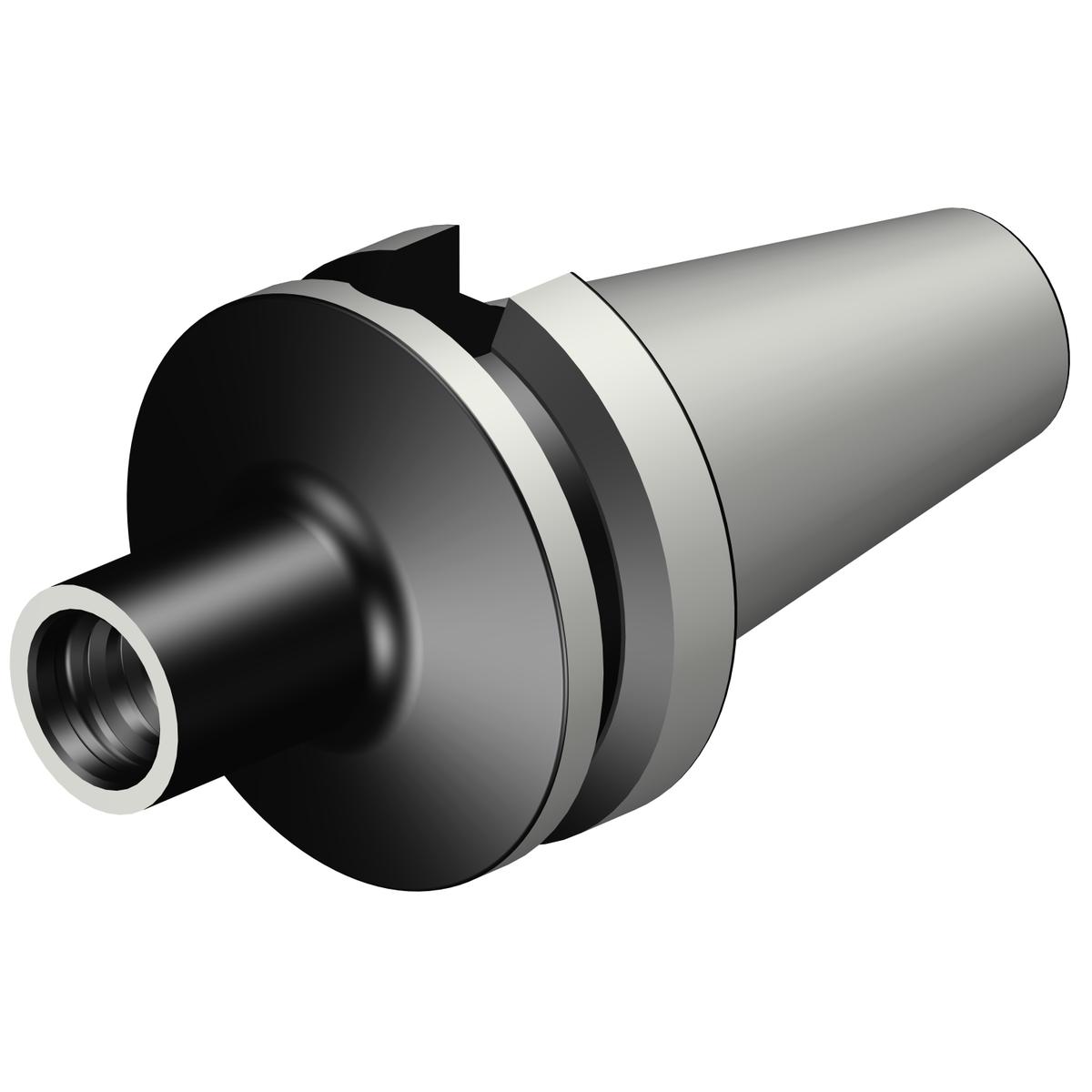

Sandvik Coromant 5852667
Specifications
| Material | Steel |
|---|---|
| Series | Coromant EH |
| Short Description | MAS-BT 403 to Coromant EH adaptor |
| Unit Of Measure | Metric |
| Overall Length | 62 mm |
| Overall Length (Decimal) | 2.44 |
| Overall Length (Metric) | 62 |
| ANSI Code | 392.55EH-40 25 062 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 0.95 |
| Body Diameter (Metric) | 24.1 |
| Body Length (Decimal) | 1.02 |
| Body Length (Metric) | 26 |
| Functional Diameter (Decimal) | 1.75 |
| Functional Diameter (Metric) | 44.45 |
| Connection Retention Knob Thread Size | M16 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 47.942 |
| Torque (NM) | 65 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2018 |
| Body Length (Inch) | 1.02 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 18000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.866 LB |
