Sandvik Coromant
5853395
Sandvik Coromant 5853395
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCrN+Al2O3+TiN |
| Thickness (Metric) | 6.35 |
| Thickness (Inch) | 0.25 |

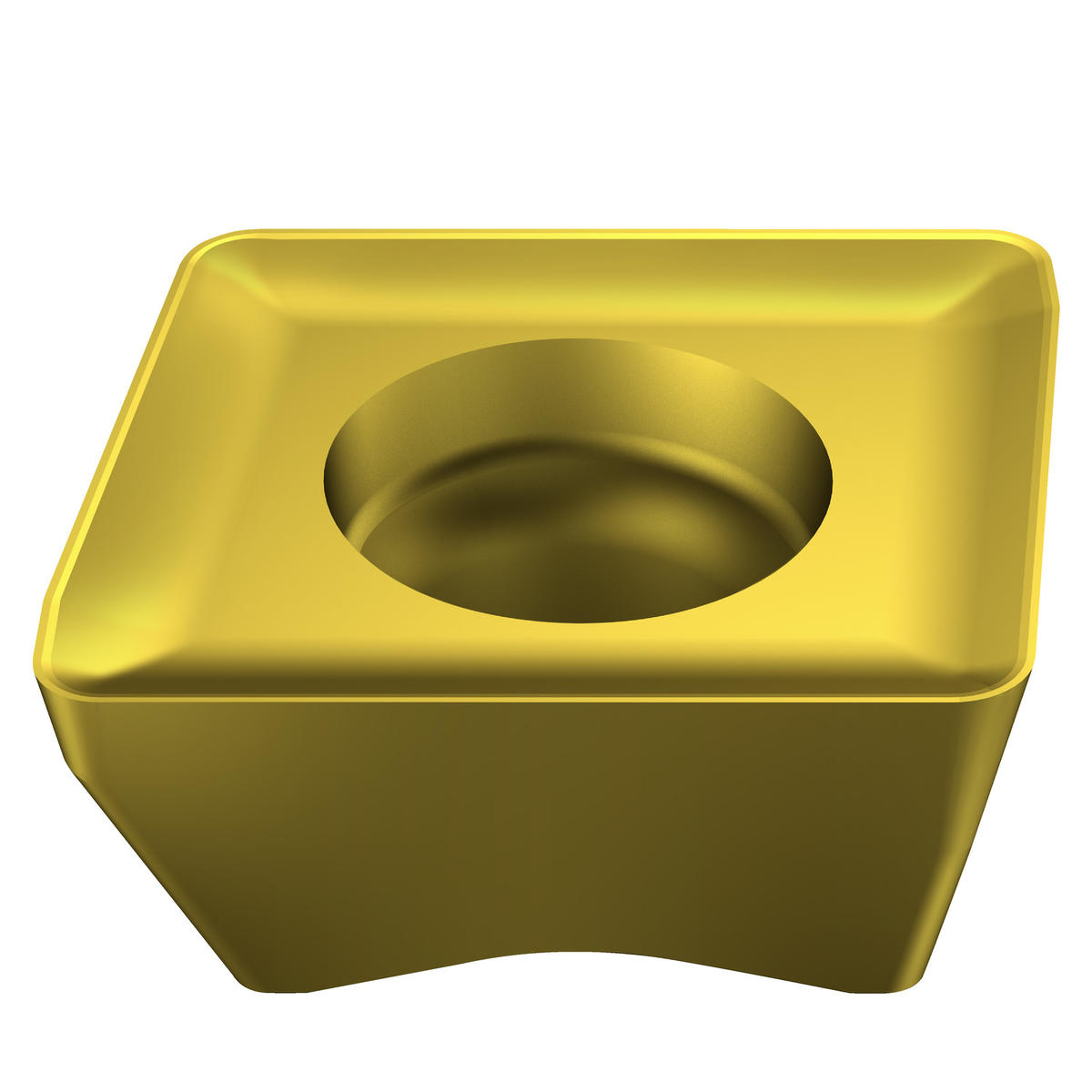

| Short Description | CoroMill® 690 insert for milling |
| Style | 690 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.57 |
| Country of Origin | Sweden |
| Series | CoroMill 690 |
| Size | 1406 |
| Grade | S40T |
| Thickness | 6.35 mm |
| Chip Breaker Type | SL |
| Length (Decimal) | 0.58 |
| ANSI Code | 690-140616M-E-SL S40T |
| ISO Code | 690-140616M-E-SL S40T |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.6 |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.5 |
| Coating Process Type | CVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.04 |
| Wiper Edge Length (Metric) | 1 |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| ISO Material Classification | S |
| Base Item Number | 2008 |
| Insert Size | 1406 |
| Length | 14.75 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.026 LB |
| Width | 14.5 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 690 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 690-140616M-E-SLS40T |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 690-140616M-E-SL S40T |
| Length Packed Product Imperial | 5.079 inch |
