Sandvik Coromant
5853448
Sandvik Coromant 5853448
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCrN+Al2O3+TiN |
| Thickness (Metric) | 3.97 |
| Thickness (Inch) | 0.16 |

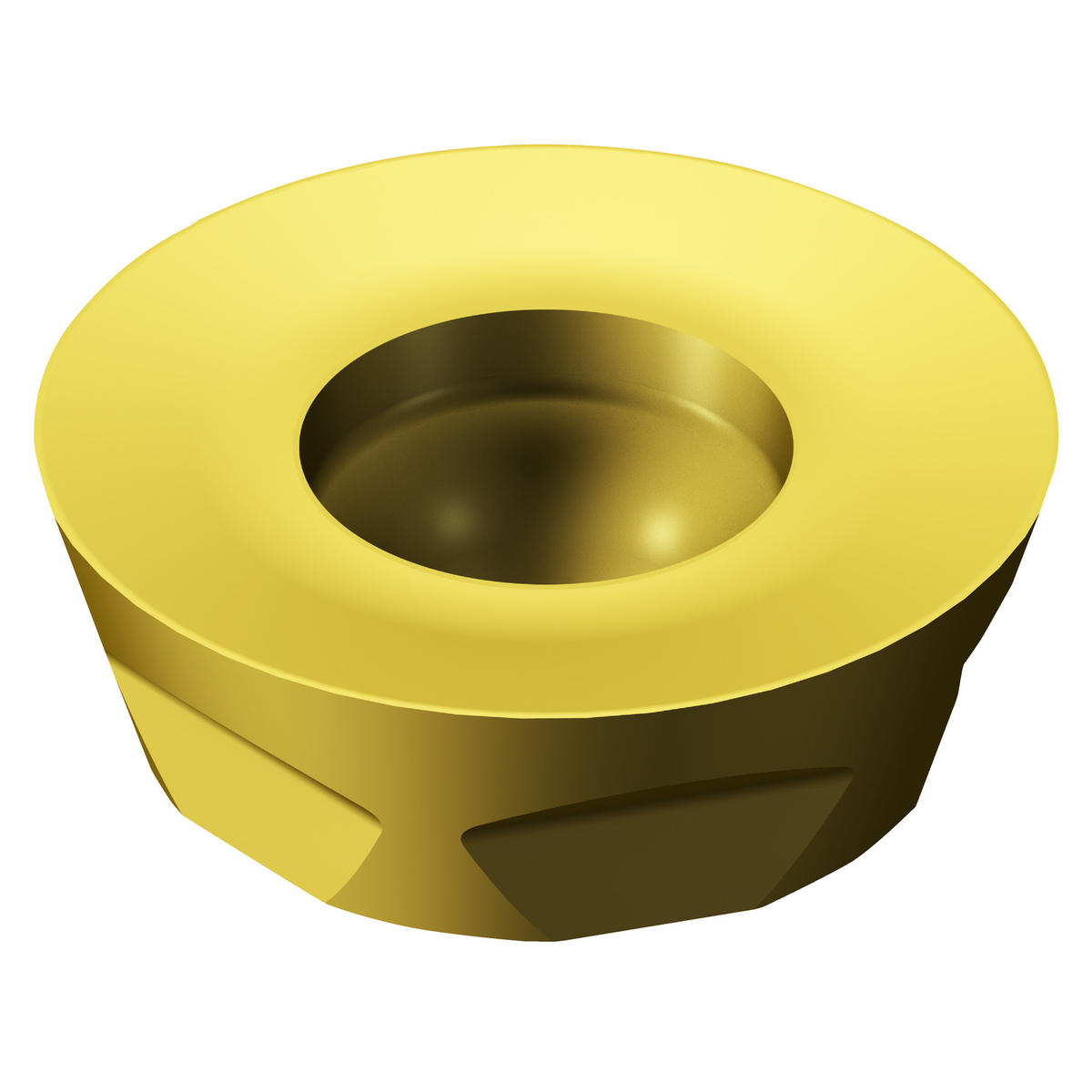

| Short Description | CoroMill® 300 insert for milling |
| Shape | Round |
| Style | R300 |
| Unit Of Measure | Imperial |
| Country of Origin | United States |
| Series | CoroMill 300 |
| Size | 1340 |
| Grade | S40T |
| Inscribed Circle Diameter | 0.5 Inch |
| Thickness | 0.16 Inch |
| Chip Breaker Type | PM |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| ANSI Code | R300-1340E-PM S40T |
| ISO Code | R300-1340E-PM S40T |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.25 |
| Coner Radius (Metric) | 6.35 |
| Fixing Hole Diameter (Decimal) | 0.16 |
| Fixing Hole Diameter (Metric) | 4.1 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| ISO Material Classification | MS |
| Base Item Number | 1008 |
| Insert Size | 1340 |
| Max. Depth Of Cut (Decimal) | 0.13 |
| Max. Depth Of Cut (Metric) | 3.18 |
| Maximum Depth Of Cut (Inch) | 0.13 |
| Maximum Depth Of Cut (Metric) | 3.18 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.011 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | R300 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R300-1340E-PMS40T |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R300-1340E-PM S40T |
| Length Packed Product Imperial | 3.74 inch |
