Sandvik Coromant
5853548
Sandvik Coromant 5853548
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiAlN |
| Thickness (Metric) | 6.35 |
| Thickness (Inch) | 0.25 |

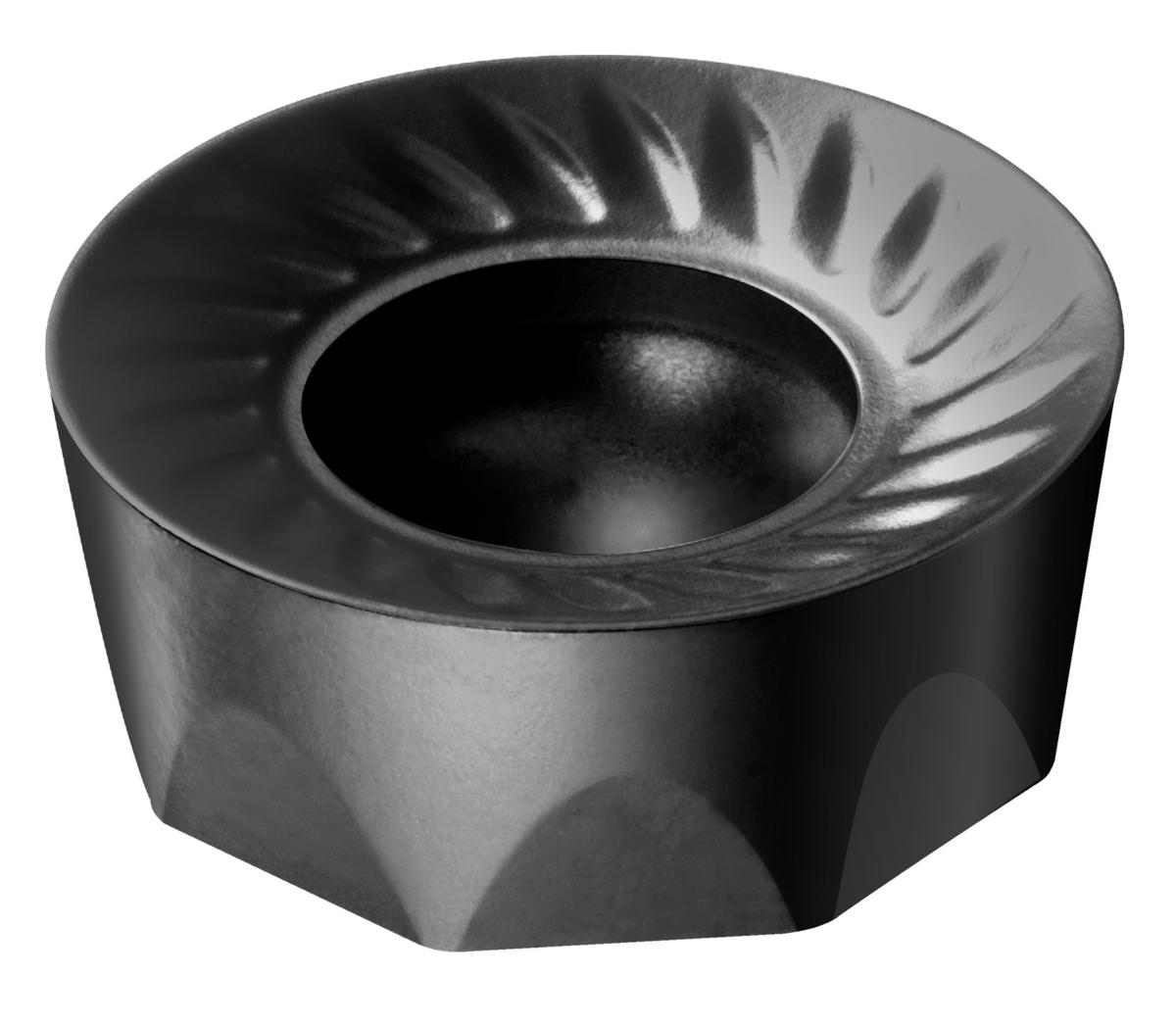

| Short Description | CoroMill® 200 insert for milling |
| Shape | Round |
| Style | RCKT |
| Unit Of Measure | Metric |
| Country of Origin | Japan |
| Series | CoroMill 200 |
| Size | 1606 |
| Grade | S30T |
| Inscribed Circle Diameter | 16 mm |
| Thickness | 6.35 mm |
| Chip Breaker Type | PM |
| Inscribed Circle Diameter (Decimal) | 0.63 |
| Inscribed Circle Diameter (Metric) | 16 |
| ANSI Code | RCKT 16 06 M0-PM S30T |
| ISO Code | RCKT 16 06 M0-PM S30T |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.32 |
| Coner Radius (Metric) | 8 |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.5 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Application | Milling, General |
| ISO Material Classification | MS |
| Base Item Number | 1005 |
| Insert Size | 1606 |
| Max. Depth Of Cut (Decimal) | 0.09 |
| Max. Depth Of Cut (Metric) | 2.34 |
| Maximum Depth Of Cut (Inch) | 0.09 |
| Maximum Depth Of Cut (Metric) | 2.34 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.027 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | RCKT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | RCKT1606M0-PMS30T |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RCKT 16 06 M0-PM S30T |
| Length Packed Product Imperial | 5.079 inch |
