Sandvik Coromant
5853815
Sandvik Coromant 5853815
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 6 |
| Insert Style | R/LG123..BM (INCH) |

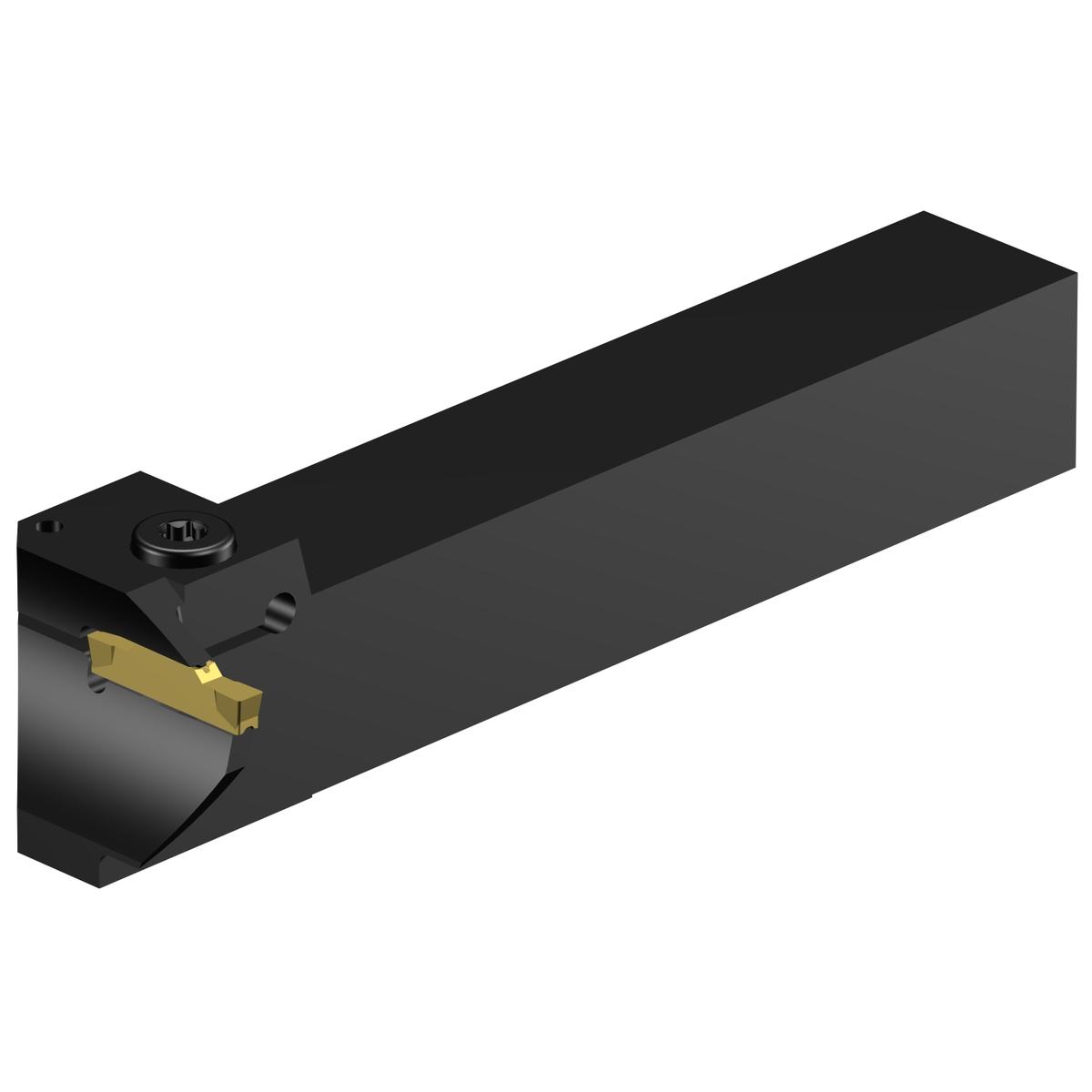

| Short Description | CoroCut® 1-2 shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Shank Width | 1 Inch |
| Shank Width (Decimal) | 1.78 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 6 Inch |
| Insert Compatibility | N123H2-0400-0004-TF |
| ANSI Code | RG123H050-16B-040BM |
| Coolant Through | No |
| Overall Width (Decimal) | 1.58 |
| Overall Width (Metric) | 40 |
| Shank Height (Decimal) | 1 |
| Clamping Type Code | Clamp |
| Torque | 2.847 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 2.36 |
| Max. Axial Groove Outside Diameter (Metric) | 60 |
| Max. Cutting Depth (Decimal) | 0.5 |
| Max. Cutting Depth (Metric) | 12.7 |
| Max. Overhang (Decimal) | 0.94 |
| Max. Overhang (Metric) | 23.9 |
| Min. Axial Groove Inside Diameter (Decimal) | 1.58 |
| Min. Axial Groove Inside Diameter (Metric) | 40 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.79 LB |
