Sandvik Coromant
5854356
Sandvik Coromant 5854356
Specifications
| Overall Length (Metric) | 254 |
|---|---|
| Overall Length (Inch) | 10 |
| Shank Width (Inch) | 1.5 |
| Shank Width (Metric) | 38.1 |
| Insert Style | R/LF123..B (INCH) |
| Base Item Number | 1073 |
| Max. Cutting Depth | 2 Inch |
| Max. Cutting Depth (Decimal) | 2 |
| Max. Cutting Depth (Metric) | 50.8 |
| Max. Overhang (Decimal) | 2.81 |
| Max. Overhang (Metric) | 71.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 5.366 LB |

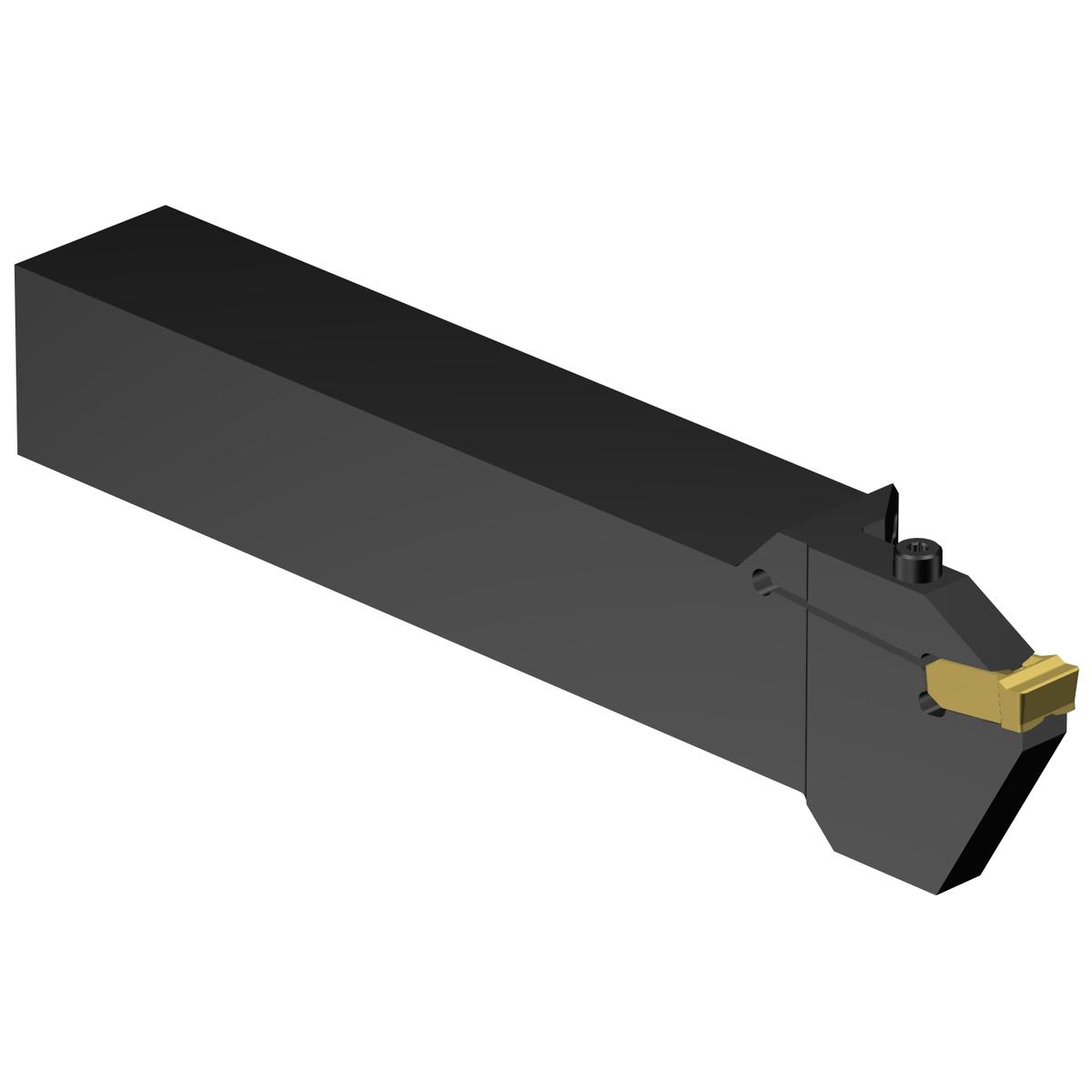

| Short Description | CoroCut® 1-2 shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123R1-1500-0010-GR |
| Shank Height | 1.5 Inch |
| Shank Width | 1.5 Inch |
| Shank Height (Decimal) | 1.5 |
| Shank Height (Metric) | 38.1 |
| ANSI Code | LF123R200-24B |
| Coolant Through | No |
| Overall Width (Decimal) | 1.6 |
| Overall Width (Metric) | 40.6 |
| Overall Height (Decimal) | 1.5 |
| Overall Height (Metric) | 38.1 |
| Insert Seat Size Code | R |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 4.5 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
