Sandvik Coromant
5856120
Sandvik Coromant 5856120
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Size | 40 |
| Series | T-Max P |
| Center to Cutting Edge (Metric) | 27 |

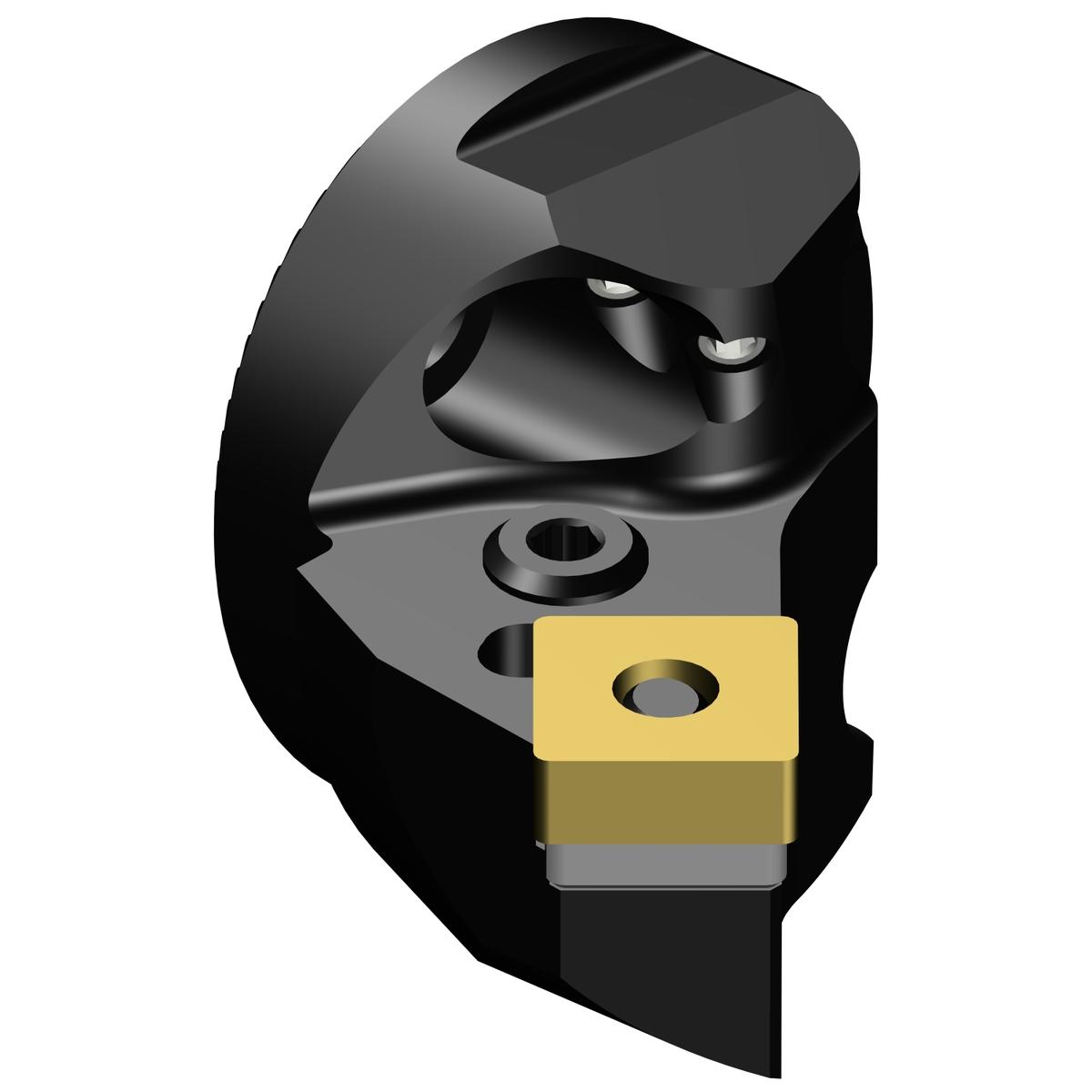

| Short Description | T-Max® P head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | SNMG 120408 |
| ANSI Code | SL-PSSNL-40-12HP-X |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 1160.3 lbf/in2 |
| Torque | 3.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | -8 degrees |
| Tool Cutting Edge Angle | 45 degrees |
| Tool Lead Angle | 45 degrees |
| Protruding Length (Decimal) | 1.51 |
| Protruding Length (Metric) | 38.32 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 7: Axial Inclined Focused Exit With Nozzle |
| Country of Origin | Norway |
| Base Item Number | 1049 |
| Max. Hole Depth | 30 mm |
| Max. Hole Depth (Decimal) | 1.18 |
| Max. Hole Depth (Metric) | 30 |
| Max. Overhang (Decimal) | 1.18 |
| Max. Overhang (Metric) | 30 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.452 LB |
| Height Packed Product Metric | 72 mm |
| Height Packed Product Imperial | 2.835 inch |
| ISO Code (packed) | SL-PSSNL-40-12HP-X |
| Length Packed Product Metric | 83 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL-PSSNL-40-12HP-X |
| Length Packed Product Imperial | 3.268 inch |
