Sandvik Coromant
5856804

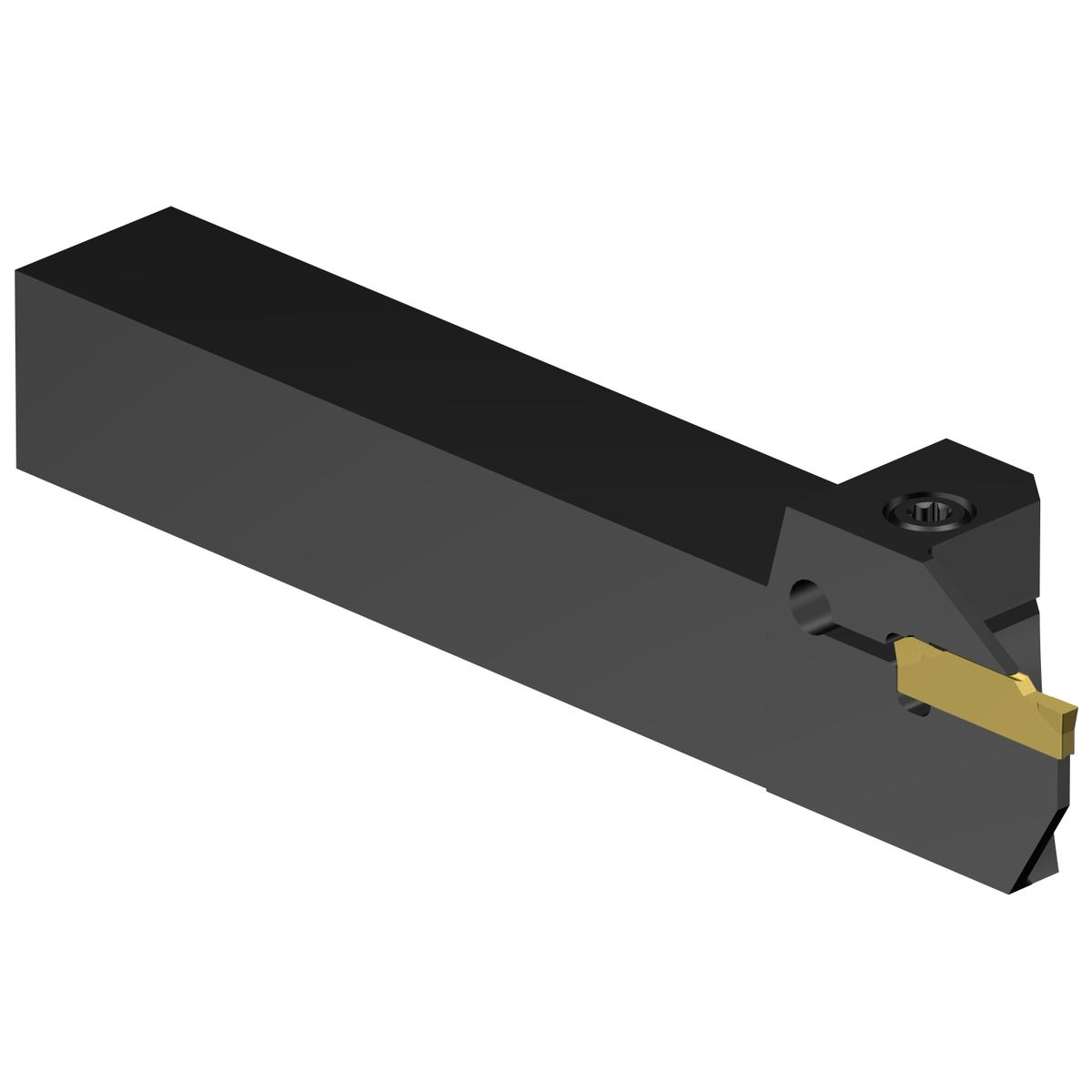

Sandvik Coromant 5856804
Specifications
| Overall Length (Metric) | 127 |
|---|---|
| Overall Length (Inch) | 5 |
| Shank Width (Inch) | 0.75 |
| Shank Width (Metric) | 19.05 |
| Insert Style | R/LF123..D (INCH) |
| Base Item Number | 1073 |
| Max. Cutting Depth | 0.67 Inch |
| Max. Cutting Depth (Decimal) | 0.67 |
| Max. Cutting Depth (Metric) | 17.02 |
| Max. Overhang (Decimal) | 1.4 |
| Max. Overhang (Metric) | 35.52 |
| Max. Work Piece Parting Diameter (Decimal) | 1.66 |
| Max. Work Piece Parting Diameter (Metric) | 42.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.73 LB |
| Short Description | CoroCut® 1-2 shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123E2-0200-0002-CM |
| Shank Height | 0.75 Inch |
| Shank Width | 0.75 Inch |
| Shank Height (Decimal) | 0.75 |
| Shank Height (Metric) | 19.05 |
| ANSI Code | LF123E067-12D |
| Coolant Through | No |
| Overall Width (Decimal) | 0.77 |
| Overall Width (Metric) | 19.55 |
| Overall Height (Decimal) | 0.75 |
| Overall Height (Metric) | 19.05 |
| Insert Seat Size Code | E |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 4 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
