Sandvik Coromant
5859641
Sandvik Coromant 5859641
Specifications
| Coolant Fed | No |
|---|---|
| Coating/Finish | Sp3 |
| Overall Length (Metric) | 124 |
| Diameter (Inch) | 0.5 |
| Material | Solid Carbide |
| Diameter (Metric) | 12.7 |
| Type | Heavy Duty |
| Overall Length (Inch) | 4.88 |

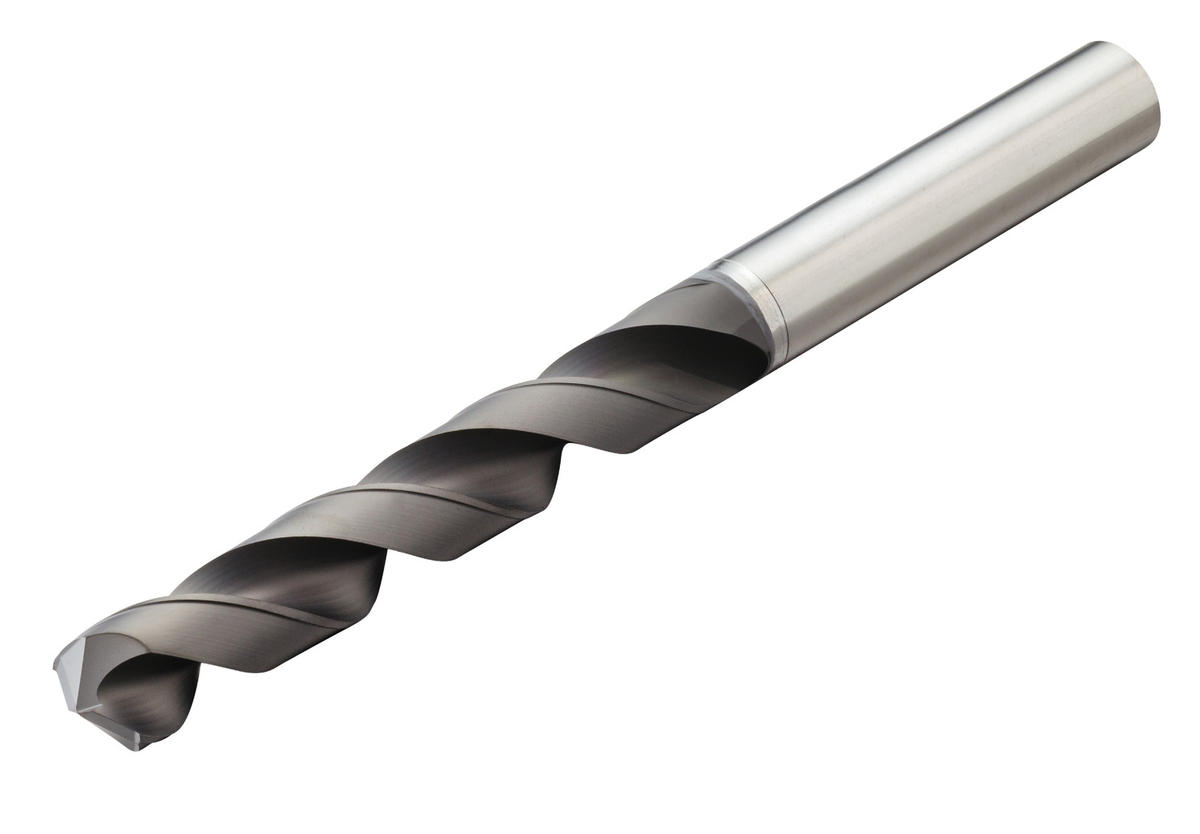

| Short Description | CoroDrill® Delta-C solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.55 |
| Connection Diameter (Metric) | 14 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 2.43 |
| Usable Length (Metric) | 61.8 |
| Diameter | 12.7 mm |
| Flute Length | 77 mm |
| Overall Length | 124 mm |
| Shank Type | Cylindrical |
| Standard | DIN 6537 L |
| Series | CoroDrill Delta-C |
| Country of Origin | France |
| ANSI Code | 854.1-1270-05-A0 N20C |
| Coating Process Type | CVD |
| Depth x Diameter Ratio | 5 x D |
| Grade | N20C |
| Point Length (Decimal) | 0.12 |
| Point Length (Metric) | 3 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 4.76 |
| Functional Length (Metric) | 121 |
| Chip Flute Length (Decimal) | 3.03 |
| Chip Flute Length (Metric) | 77 |
| Usable Length Diameter Ratio | 4.866 |
| Coolant Entry Style Code | 0: Without Coolant |
| Base Item Number | 1099 |
| Max. Rotational Speed | 10026 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.454 LB |
| Height Packed Product Metric | 37 mm |
| Height Packed Product Imperial | 1.457 inch |
| ISO Code (packed) | 854.1-1270-05-A0N20C |
| Length Packed Product Metric | 162 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 854.1-1270-05-A0 N20C |
| Length Packed Product Imperial | 6.378 inch |
| Substrate Type | Carbide |
