Sandvik Coromant
5881581

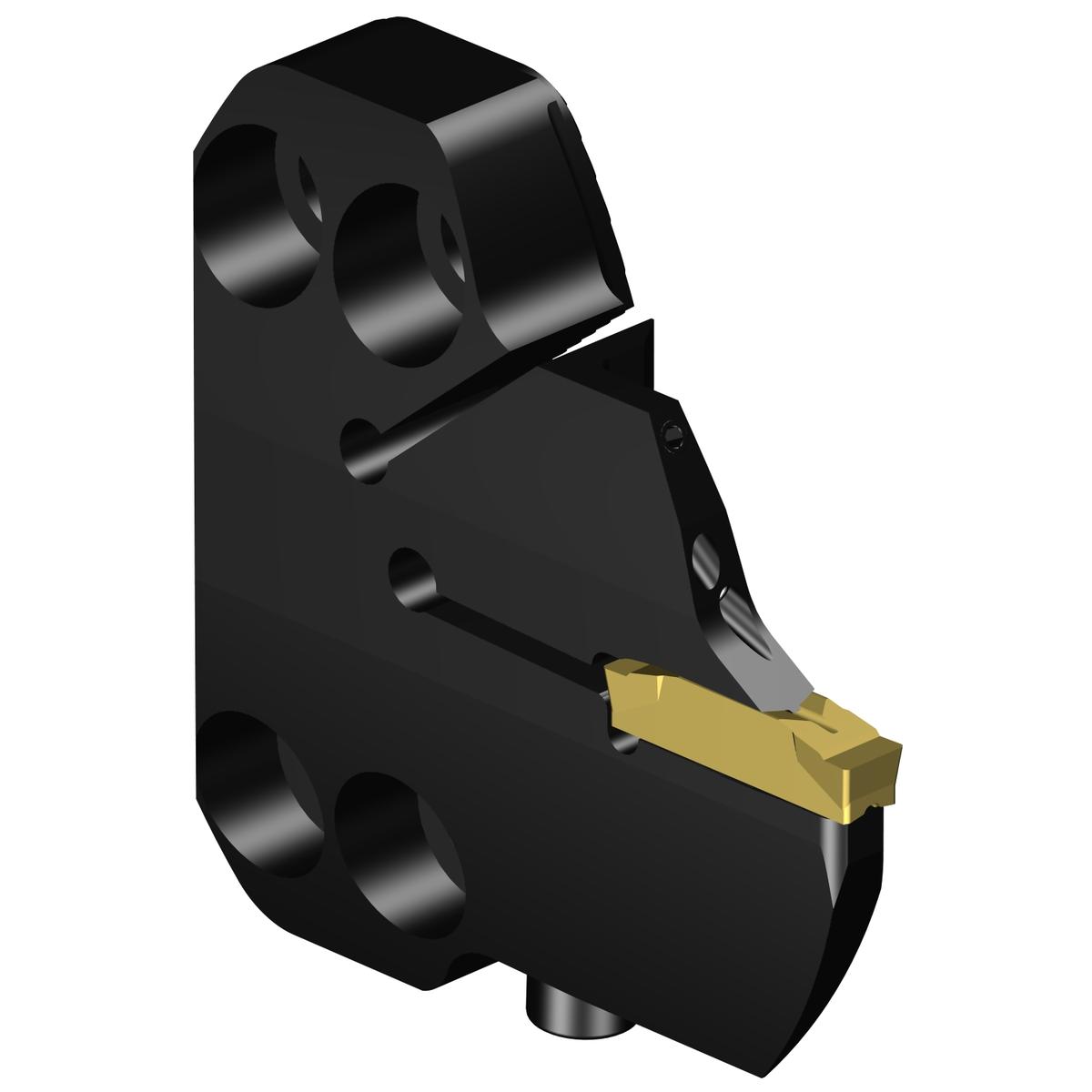

Sandvik Coromant 5881581
Specifications
| Center to Cutting Edge (Inch) | 2.17 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 4.72 |
| Size | 70 |
| Series | CoroCut 1-2 |
| Bore Diameter (Metric) | 120 |
| Center to Cutting Edge (Metric) | 55 |
| Short Description | CoroCutĀ® 1-2 head for profiling |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 55 mm |
| Insert Style | N123K2-GM |
| ANSI Code | SL70-R123K30A-HP-M |
| Clamping Type Code | Clamp |
| Coolant Pressure | 1160.3 lbf/in2 |
| Torque | 4.5 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Body Diameter (Decimal) | 2.76 |
| Body Diameter (Metric) | 70 |
| Clamping Width (Decimal) | 2.76 |
| Clamping Width (Metric) | 70 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 7: Axial Inclined Focused Exit With Nozzle |
| Insert Seat Size Code | K |
| Country of Origin | India |
| Base Item Number | 1073 |
| Max. Cutting Depth (Decimal) | 1.18 |
| Max. Cutting Depth (Metric) | 30 |
| Max. Hole Depth | 17 mm |
| Max. Hole Depth (Decimal) | 0.67 |
| Max. Hole Depth (Metric) | 17 |
| Max. Overhang (Decimal) | 0.55 |
| Max. Overhang (Metric) | 14 |
| Min. Axial Groove Outside Diameter (Decimal) | 12.6 |
| Min. Axial Groove Outside Diameter (Metric) | 320 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.604 LB |
| Height Packed Product Metric | 70 mm |
| Height Packed Product Imperial | 2.756 inch |
| ISO Code (packed) | SL70-R123K30A-HP-M |
| Length Packed Product Metric | 93 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | SL70-R123K30A-HP-M |
| Length Packed Product Imperial | 3.661 inch |
