Sandvik Coromant
5906814

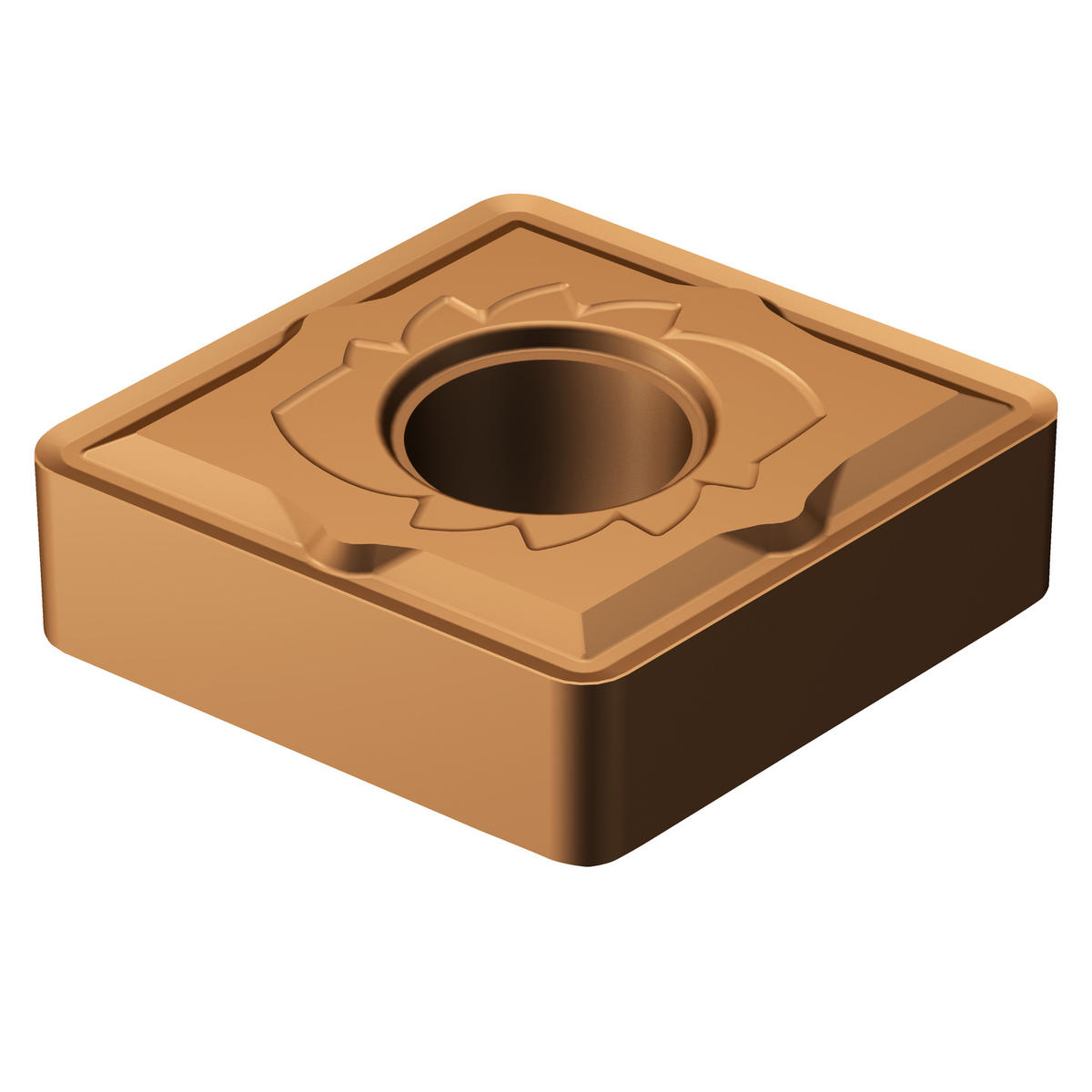

Sandvik Coromant 5906814
Specifications
| Coating/Finish | TiAlN+TiAlN |
|---|---|
| Thickness (Metric) | 6.35 |
| Corner Radius (Metric) | 1.59 |
| Material | WC or Cermet |
| Size | 544 |
| Corner Radius (Inch) | 0.06 |
| Style | CNMG |
| Thickness (Inch) | 0.25 |
| Short Description | T-Max® P insert for turning |
| Grade | 1115 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 15.88 mm |
| Inscribed Circle Diameter (Decimal) | 0.63 |
| Inscribed Circle Diameter (Metric) | 15.88 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.42 |
| Length (Metric) | 10.6 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | SM |
| ANSI Code | CNMG 544-SM 1115 |
| ISO Code | CNMG 16 06 16-SM 1115 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.25 |
| Fixing Hole Diameter (Metric) | 6.35 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | MS |
| Base Item Number | 1049 |
| Length | 10.6 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.044 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | CNMG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | CNMG160616-SM1115 |
| Insert Size | 544 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | CNMG 16 06 16-SM 1115 |
| Length Packed Product Imperial | 5.079 inch |
