Sandvik Coromant
5907968
Sandvik Coromant 5907968
Specifications
| Center to Cutting Edge (Inch) | 2.17 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 7.87; 10.24 |
| Size | C8 |
| Series | T-Max P |
| Bore Diameter (Metric) | 200; 260 |
| Center to Cutting Edge (Metric) | 55 |

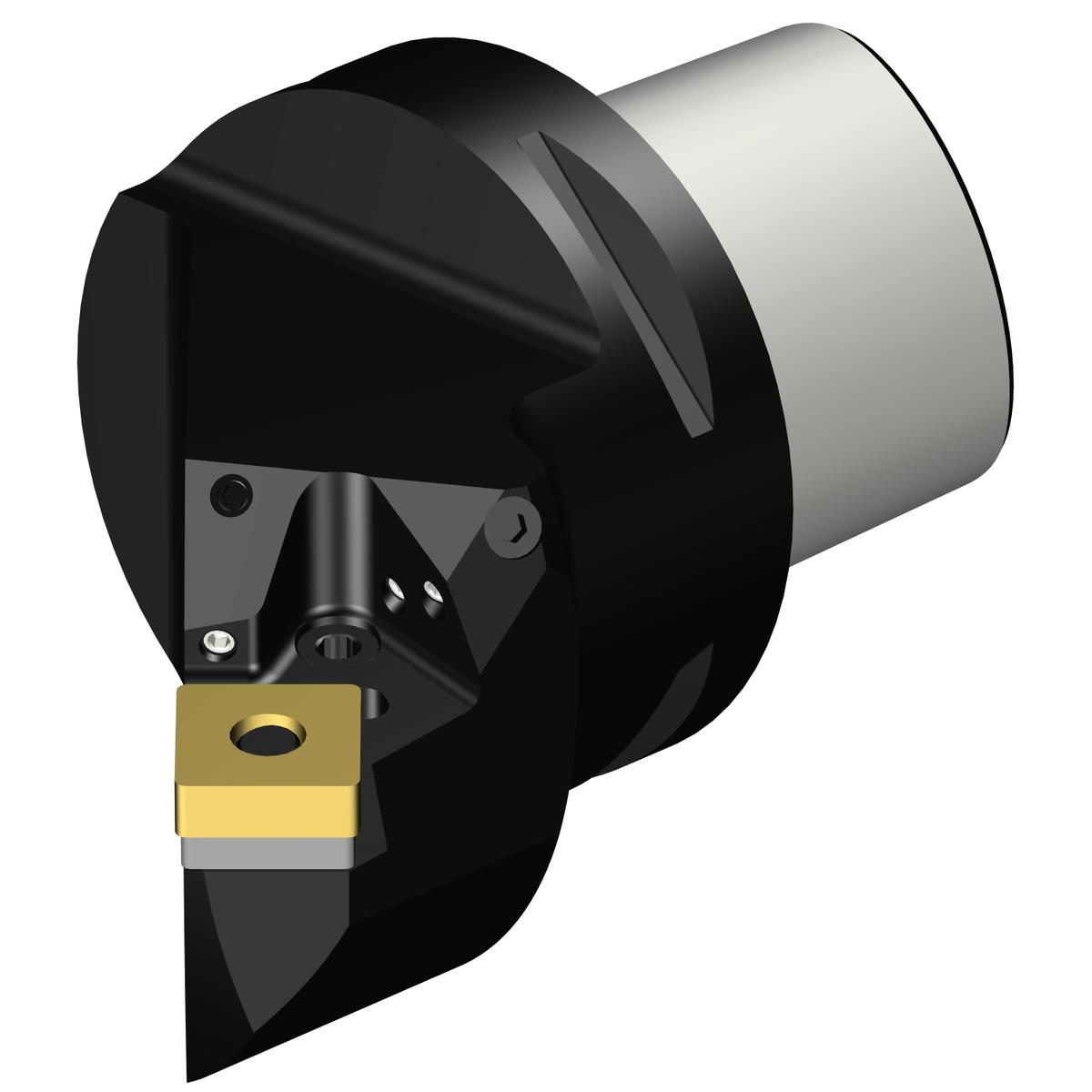

| Short Description | T-Max® P cutting unit for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 55 mm |
| Insert Style | SNMG 190612 |
| ANSI Code | C8-PSSNR-55080-19HP |
| Connection Diameter (Decimal) | 3.15 |
| Connection Diameter (Metric) | 80 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Torque | 10 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | -8 degrees |
| Tool Cutting Edge Angle | 45 degrees |
| Tool Lead Angle | 45 degrees |
| Protruding Length (Decimal) | 3.64 |
| Protruding Length (Metric) | 92.48 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | India |
| Base Item Number | 1049 |
| Max. Hole Depth | 80 mm |
| Max. Hole Depth (Decimal) | 3.15 |
| Max. Hole Depth (Metric) | 80 |
| Max. Overhang (Decimal) | 3.15 |
| Max. Overhang (Metric) | 80 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 5.717 LB |
