Sandvik Coromant
5908161
Sandvik Coromant 5908161
Specifications
| Overall Length (Metric) | 125 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 4.92 |
| Insert Style | R/LF123..B..B |

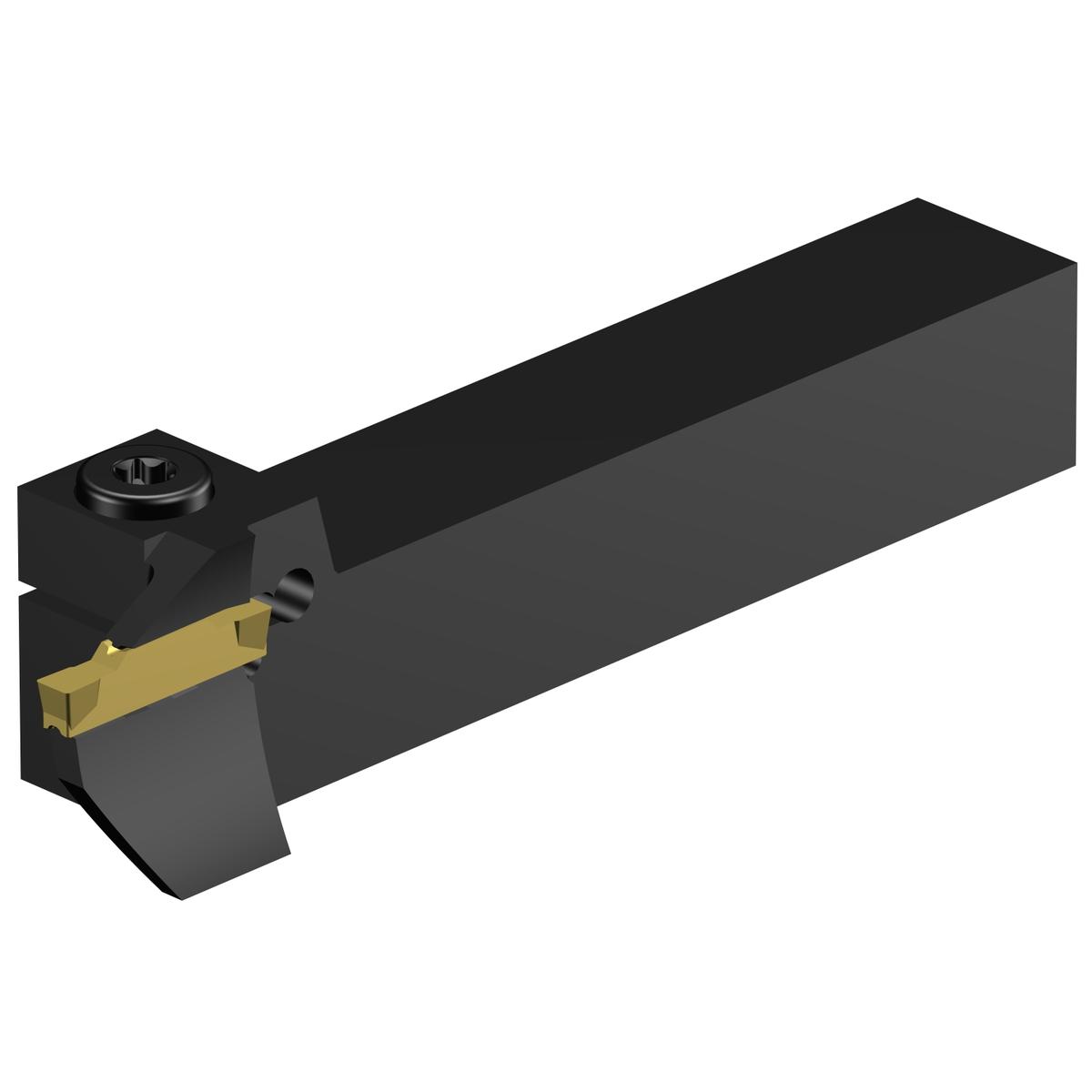

| Short Description | CoroCut® 1-2 shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Shank Width | 20 mm |
| Shank Width (Decimal) | 1.62 |
| Shank Width (Metric) | 20 |
| Shank Height (Metric) | 20 |
| Overall Height (Metric) | 20 |
| Overall Height (Decimal) | 0.79 |
| Overall Length | 125 mm |
| Insert Compatibility | N123H2-0400-0004-TF |
| ANSI Code | RF123H13-2020B-052BM |
| Coolant Through | No |
| Overall Width (Decimal) | 0.83 |
| Overall Width (Metric) | 21 |
| Shank Height (Decimal) | 0.79 |
| Clamping Type Code | Clamp |
| Torque | 3 Nm |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 2.84 |
| Max. Axial Groove Outside Diameter (Metric) | 72 |
| Max. Cutting Depth (Decimal) | 0.51 |
| Max. Cutting Depth (Metric) | 13 |
| Max. Overhang (Decimal) | 1.34 |
| Max. Overhang (Metric) | 34 |
| Min. Axial Groove Inside Diameter (Decimal) | 2.05 |
| Min. Axial Groove Inside Diameter (Metric) | 52 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.816 LB |
