Sandvik Coromant
5908201

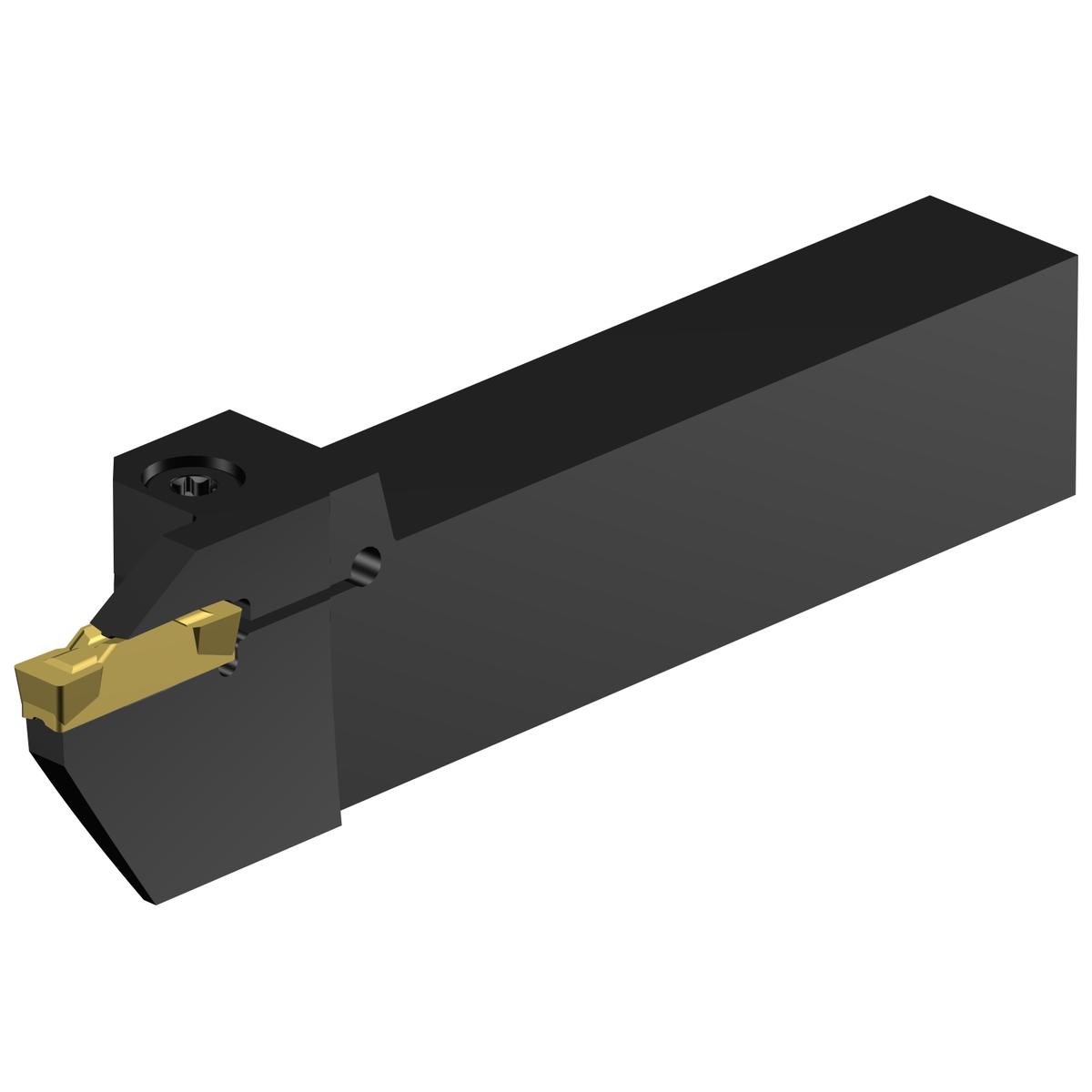

Sandvik Coromant 5908201
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 6.69 |
| Insert Style | R/LF123..B..B |
| Short Description | CoroCut® 1-2 shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Shank Width | 25 mm |
| Shank Width (Decimal) | 0.87 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 32 |
| Overall Height (Metric) | 32 |
| Overall Height (Decimal) | 1.26 |
| Overall Length | 170 mm |
| Insert Compatibility | N123L2-0800-0008-TF |
| ANSI Code | RF123L28-3225B-140BM |
| Coolant Through | No |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Shank Height (Decimal) | 1.26 |
| Clamping Type Code | Clamp |
| Torque | 6.7 Nm |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 15.75 |
| Max. Axial Groove Outside Diameter (Metric) | 400 |
| Max. Cutting Depth (Decimal) | 1.1 |
| Max. Cutting Depth (Metric) | 28 |
| Max. Overhang (Decimal) | 2.21 |
| Max. Overhang (Metric) | 56 |
| Min. Axial Groove Inside Diameter (Decimal) | 5.51 |
| Min. Axial Groove Inside Diameter (Metric) | 140 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.11 LB |
