Sandvik Coromant
5909034

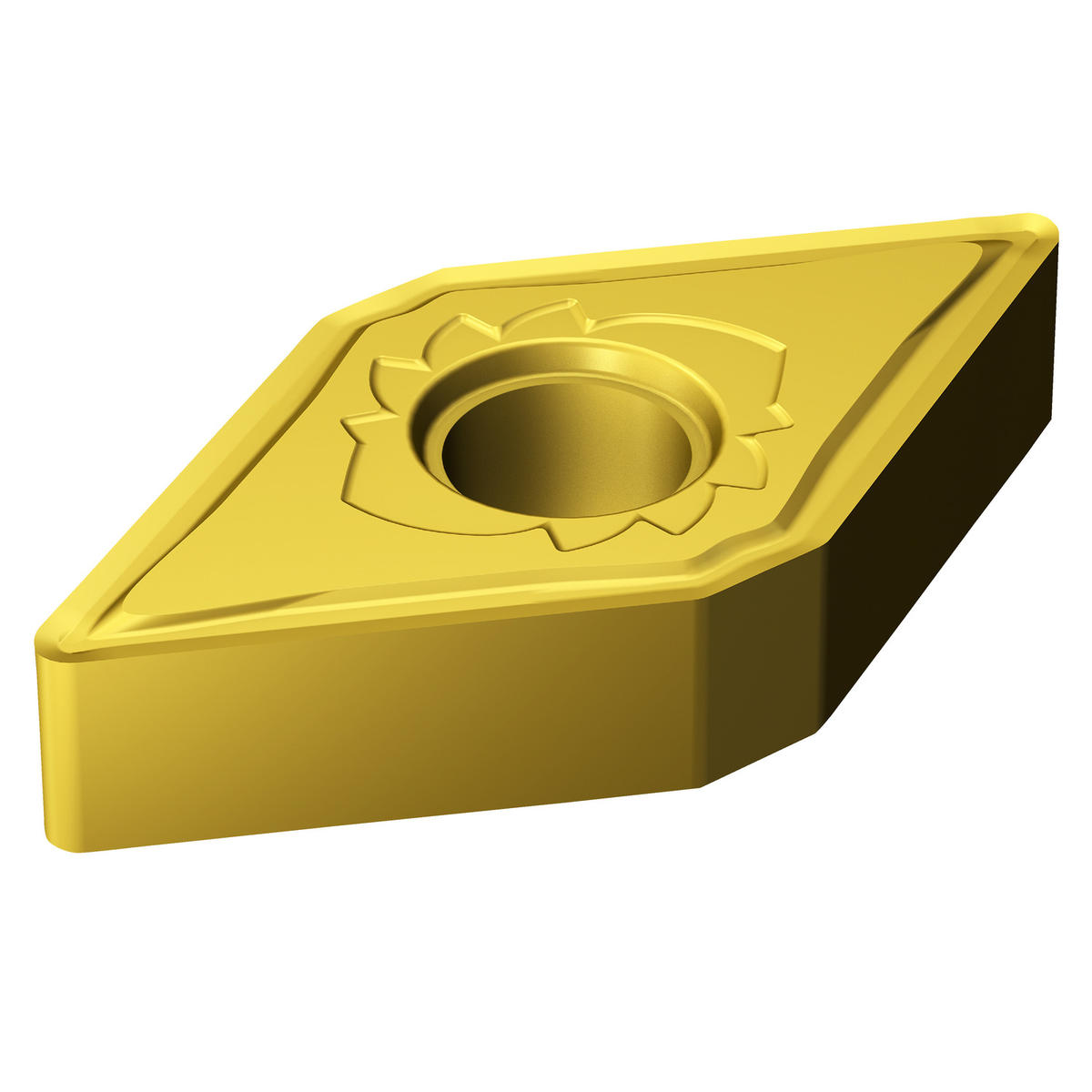

Sandvik Coromant 5909034
Specifications
| Coating/Finish | TiCrN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 1.19 |
| Material | WC or Cermet |
| Size | 433 |
| Corner Radius (Inch) | 0.05 |
| Style | DNMG |
| Thickness (Inch) | 0.19 |
| Short Description | T-Max® P insert for turning |
| Grade | S05F |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.25 |
| Length (Metric) | 6.4 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | SMR |
| ANSI Code | DNMG 433-SMR S05F |
| ISO Code | DNMG 15 04 12-SMR S05F |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.2 |
| Fixing Hole Diameter (Metric) | 5.16 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | S |
| Base Item Number | 1049 |
| Length | 6.4 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.026 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DNMG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DNMG150412-SMRS05F |
| Insert Size | 433 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DNMG 15 04 12-SMR S05F |
| Length Packed Product Imperial | 5.079 inch |
