Sandvik Coromant
5909099

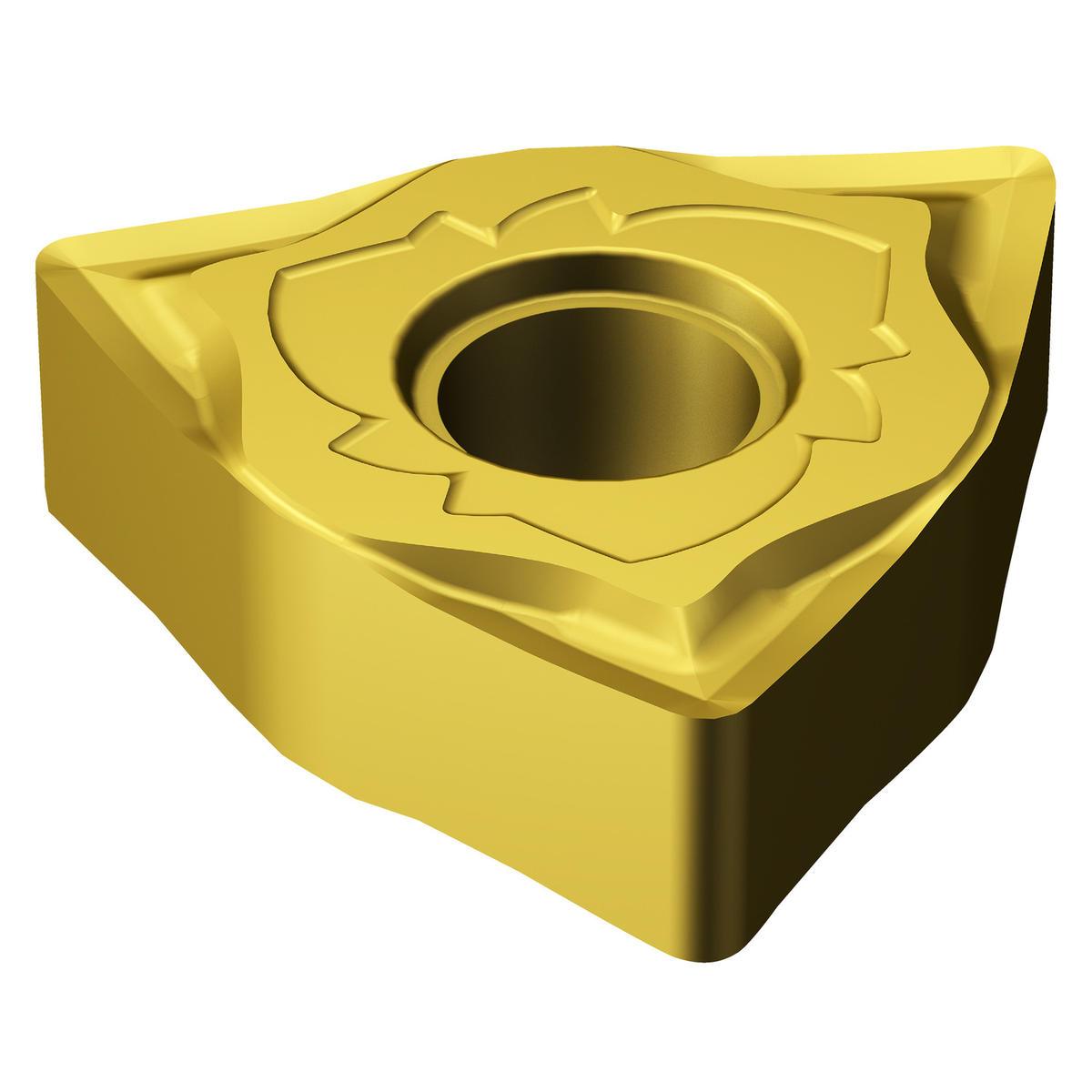

Sandvik Coromant 5909099
Specifications
| Coating/Finish | TiCrN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 0.4 |
| Material | WC or Cermet |
| Size | 432 |
| Corner Radius (Inch) | 0.02 |
| Style | WNGG |
| Thickness (Inch) | 0.19 |
| Short Description | T-Max® P insert for turning |
| Grade | S05F |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.13 |
| Length (Metric) | 3.2 |
| Shape | Trigon |
| Country of Origin | United States |
| Series | T-Max P |
| Chip Breaker Type | SGF |
| ANSI Code | WNGG 431-SGF S05F |
| ISO Code | WNGG 08 04 04-SGF S05F |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.2 |
| Fixing Hole Diameter (Metric) | 5.16 |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | S |
| Base Item Number | 1049 |
| Length | 3.2 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.022 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | WNGG |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | WNGG080404-SGFS05F |
| Insert Size | 432 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | WNGG 08 04 04-SGF S05F |
| Length Packed Product Imperial | 3.74 inch |
