Sandvik Coromant
5910464

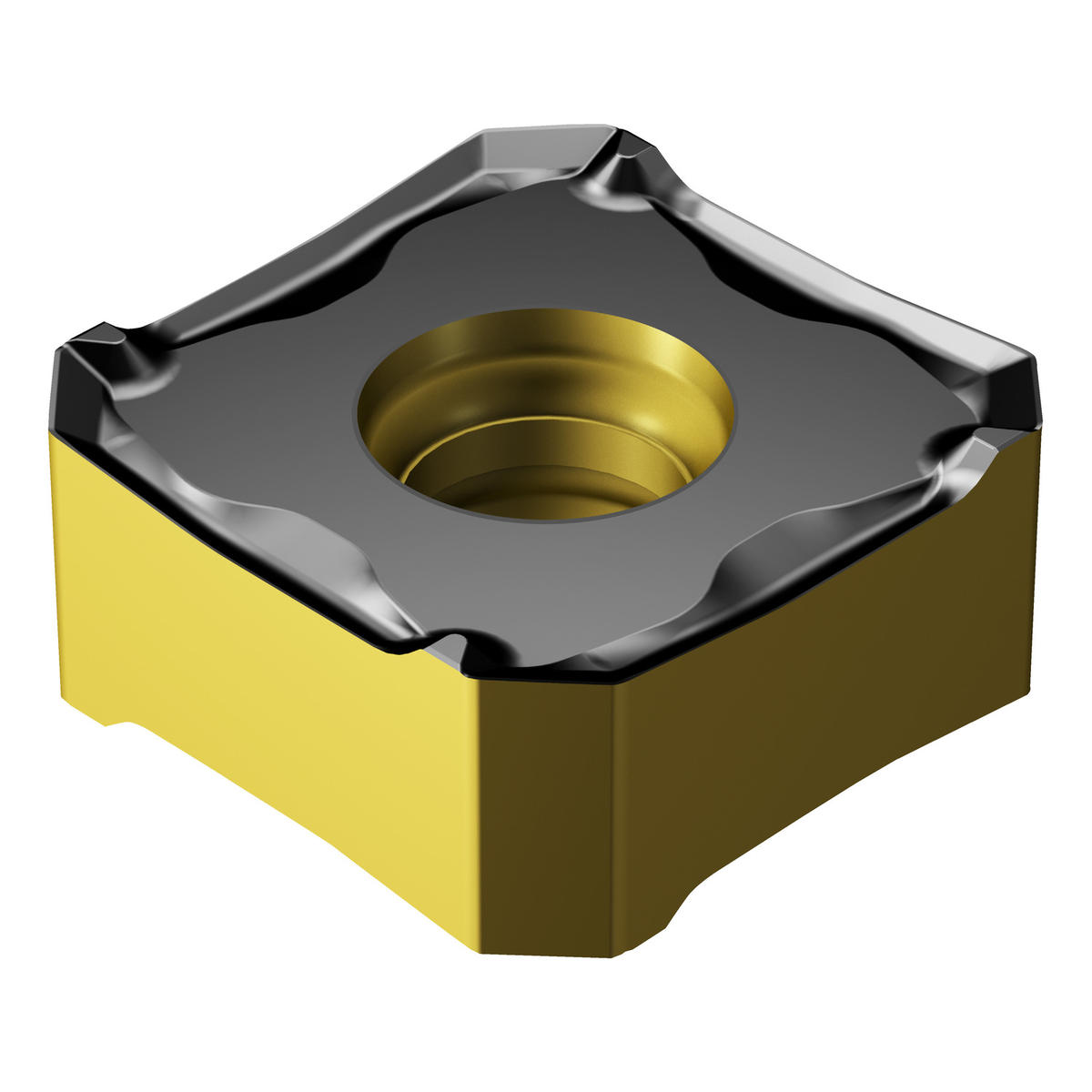

Sandvik Coromant 5910464
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 5.05 |
| Thickness (Inch) | 0.2 |
| Short Description | CoroMill® 345 insert for milling |
| Shape | Square |
| Style | 345R |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 345 |
| Size | 1305 |
| Grade | 3220 |
| Inscribed Circle Diameter | 13 mm |
| Thickness | 5.05 mm |
| Chip Breaker Type | KL |
| Length (Decimal) | 0.35 |
| Inscribed Circle Diameter (Decimal) | 0.51 |
| Inscribed Circle Diameter (Metric) | 13 |
| ANSI Code | 345R-1305E-KL 3220 |
| ISO Code | 345R-1305E-KL 3220 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.03 |
| Coner Radius (Metric) | 0.8 |
| Fixing Hole Diameter (Decimal) | 0.19 |
| Fixing Hole Diameter (Metric) | 4.8 |
| Coating Process Type | CVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.08 |
| Wiper Edge Length (Metric) | 2 |
| Major Cutting Edge Angle | 45 degrees |
| Rake Angle | 30 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Wiper Edge Radius (Decimal) | 4.21 |
| Wiper Edge Radius (Metric) | 107 |
| Application | Milling, General |
| ISO Material Classification | K |
| Base Item Number | 2006 |
| Insert Size | 1305 |
| Length | 8.8 mm |
| Max. Depth Of Cut (Decimal) | 0.24 |
| Max. Depth Of Cut (Metric) | 6 |
| Maximum Depth Of Cut (Inch) | 0.24 |
| Maximum Depth Of Cut (Metric) | 6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.022 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 345R |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 345R-1305E-KL3220 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 345R-1305E-KL 3220 |
| Length Packed Product Imperial | 3.74 inch |
