Sandvik Coromant
5910832

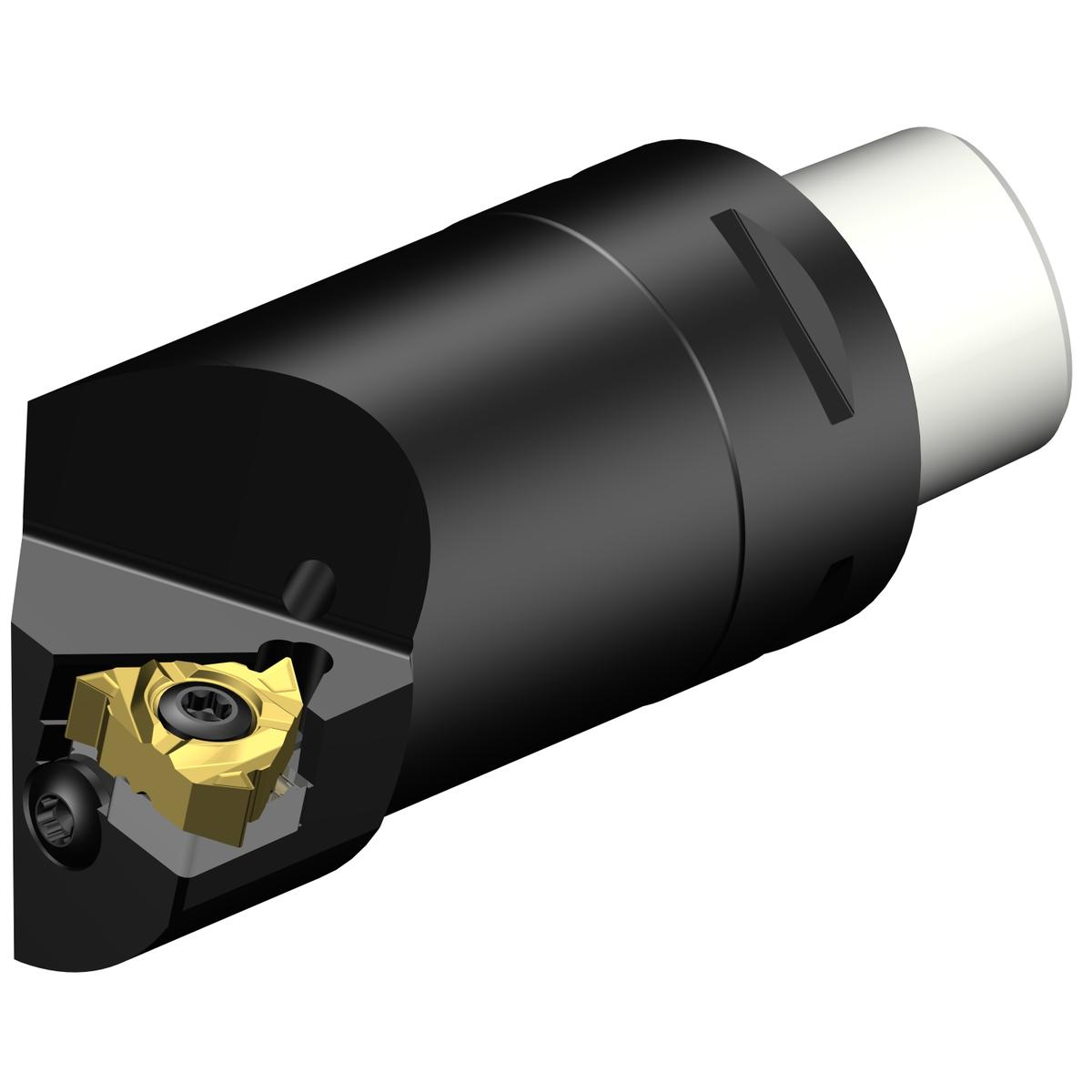

Sandvik Coromant 5910832
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.97 |
| Size | C4 |
| Series | CoroThread 266 |
| Bore Diameter (Metric) | 50 |
| Center to Cutting Edge (Metric) | 27 |
| Short Description | CoroThread® 266 cutting unit for thread turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | 266.RL-22/254LG-22CC |
| ANSI Code | C4-266RKF-27080-22 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 5 Nm |
| Machine Side Body Angle | 0 degrees |
| Axial Clearance Angle | -15 degrees |
| Thread Helix Correction Angle | 1 degrees |
| Usable Length (Decimal) | 2.36 |
| Usable Length (Metric) | 60 |
| Body Diameter (Decimal) | 1.56 |
| Body Diameter (Metric) | 39.5 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Country of Origin | Sweden |
| Base Item Number | 1187 |
| Max. Hole Depth | 80 mm |
| Max. Hole Depth (Decimal) | 3.15 |
| Max. Hole Depth (Metric) | 80 |
| Max. Overhang (Decimal) | 3.15 |
| Max. Overhang (Metric) | 80 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.541 LB |
| Height Packed Product Metric | 70 mm |
| Height Packed Product Imperial | 2.756 inch |
| ISO Code (packed) | C4-266RKF-27080-22 |
| Length Packed Product Metric | 112 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | C4-266RKF-27080-22 |
| Length Packed Product Imperial | 4.409 inch |
