Sandvik Coromant
5918497
Sandvik Coromant 5918497
Specifications
| Series | CoroCut 1-2 |
|---|---|
| Corner Radius (Metric) | 4 |
| Material | CBN Low Content |
| Corner Radius (Inch) | 0.16 |
| Insert Size | L1 |
| Coating/Finish | Uncoated |

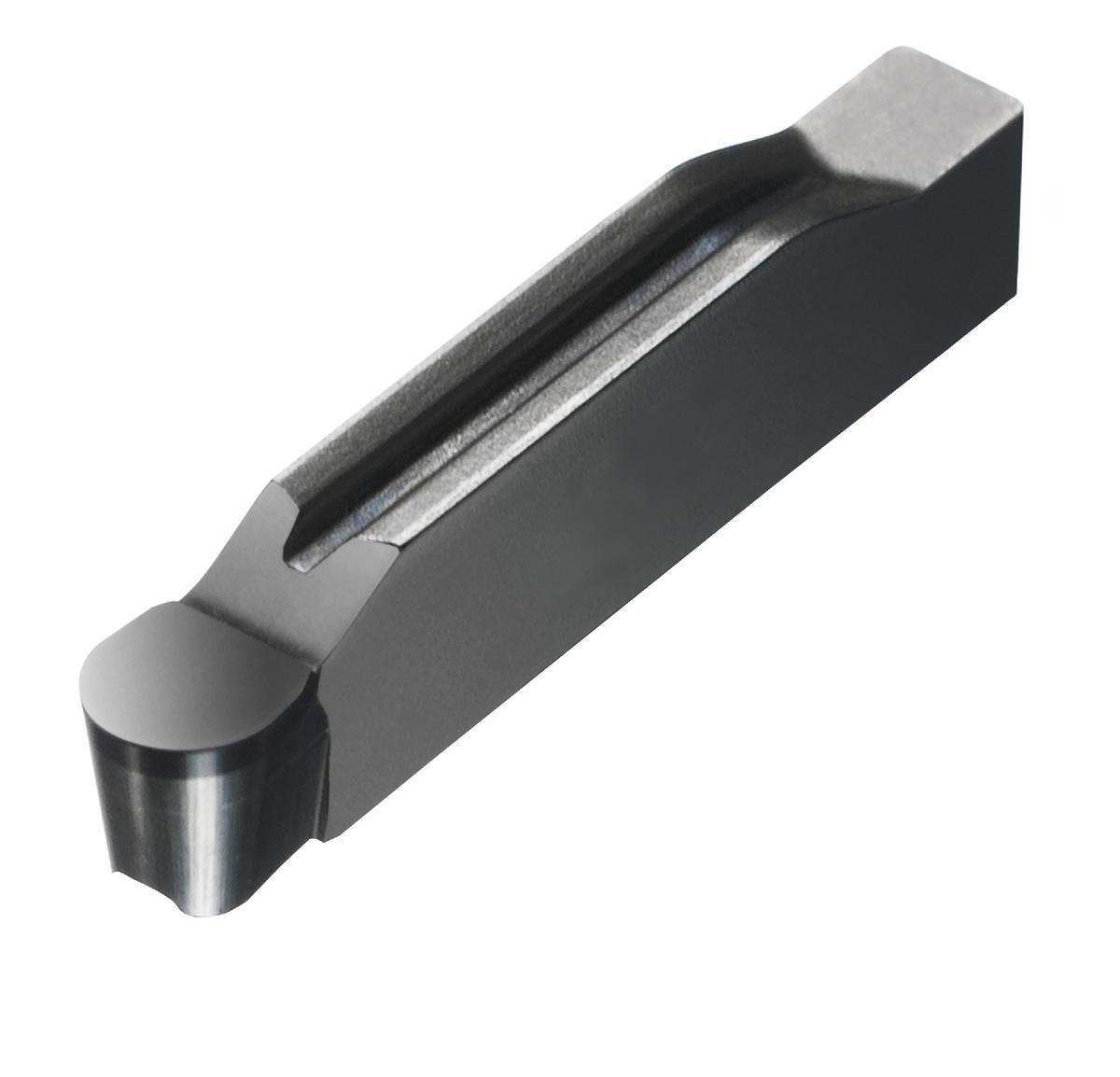

| Short Description | CoroCutĀ® 1-2 insert for profiling |
| Style | N123 |
| Grade | 7015 |
| Unit Of Measure | Metric |
| Cutting Width | 8 mm |
| Chip Breaker Type | RE |
| Cutting Width (Decimal) | 0.32 |
| Cutting Width (Metric) | 8 |
| ANSI Code | N123L1-0800-RE 7015 |
| ISO Code | N123L1-0800-RE 7015 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | CBN |
| Number of Cutting Edges | 1 |
| Insert Seat Size Code | L |
| Corner Radius Lower Tolerance (Decimal) | -0.000787 |
| Corner Radius Lower Tolerance (Metric) | -0.02 |
| Corner Radius Upper Tolerance (Decimal) | 0.000787 |
| Corner Radius Upper Tolerance (Metric) | 0.02 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Cutting Width Lower Tolerance (Decimal) | -0.000787 |
| Cutting Width Lower Tolerance (Metric) | -0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.000787 |
| Cutting Width Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | SH |
| Country of Origin | Poland |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.32 |
| Max. Depth Of Cut (Decimal) | 0.03 |
| Max. Depth Of Cut (Metric) | 0.85 |
| Maximum Depth Of Cut (Inch) | 0.03 |
| Maximum Depth Of Cut (Metric) | 0.85 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.064 LB |
