Sandvik Coromant
5922158

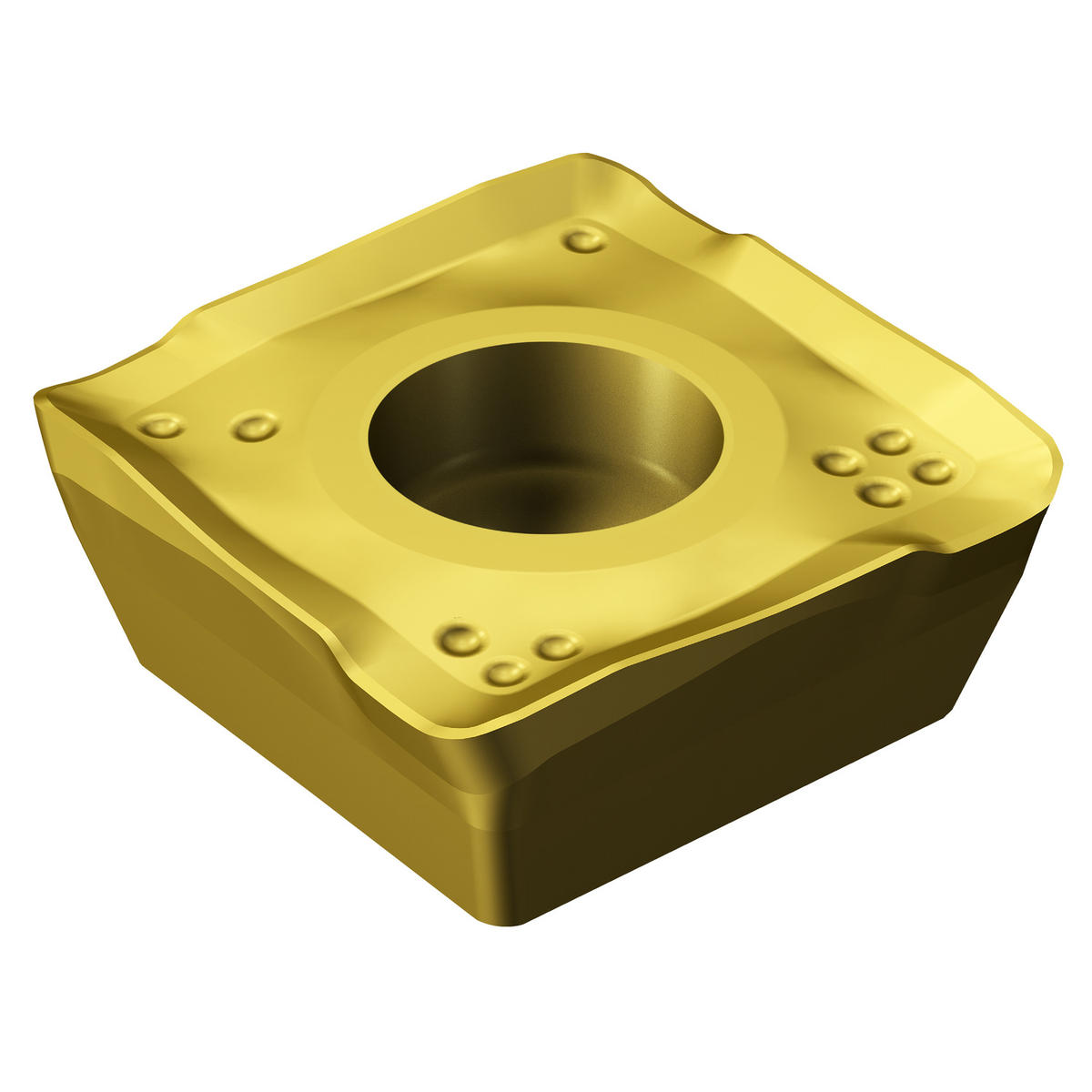

Sandvik Coromant 5922158
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCrN+Al2O3+TiN |
| Thickness (Metric) | 3.9 |
| Thickness (Inch) | 0.15 |
| Short Description | CoroMill® 490 insert for milling |
| Shape | Square |
| Style | 490R |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 490 |
| Size | 1404 |
| Grade | 2040 |
| Inscribed Circle Diameter | 13.8 mm |
| Thickness | 3.9 mm |
| Chip Breaker Type | MM |
| Length (Decimal) | 0.41 |
| Inscribed Circle Diameter (Decimal) | 0.54 |
| Inscribed Circle Diameter (Metric) | 13.8 |
| ANSI Code | 490R-140416E-MM 2040 |
| ISO Code | 490R-140416E-MM 2040 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.6 |
| Fixing Hole Diameter (Decimal) | 0.16 |
| Fixing Hole Diameter (Metric) | 4.1 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.05 |
| Wiper Edge Length (Metric) | 1.2 |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Application | Milling, General |
| ISO Material Classification | PMS |
| Base Item Number | 2007 |
| Insert Size | 1404 |
| Length | 10.3 mm |
| Max. Depth Of Cut (Decimal) | 0.39 |
| Max. Depth Of Cut (Metric) | 10 |
| Maximum Depth Of Cut (Inch) | 0.39 |
| Maximum Depth Of Cut (Metric) | 10 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.017 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | 490R |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | 490R-140416E-MM2040 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 490R-140416E-MM 2040 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 25922158 |
