Sandvik Coromant
5923428

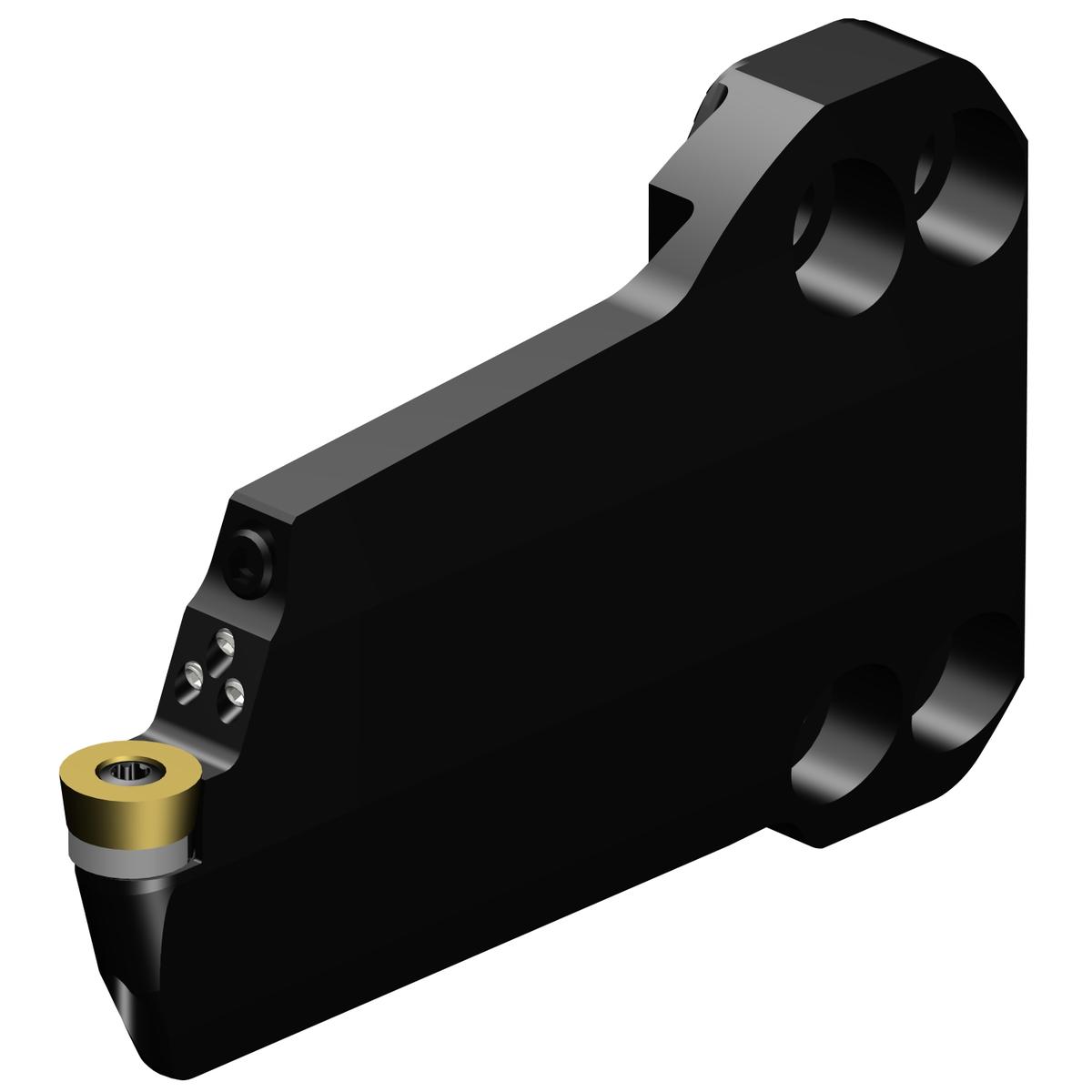

Sandvik Coromant 5923428
Specifications
| Center to Cutting Edge (Inch) | 3.78 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 4.72; 10.24 |
| Size | 70 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 120; 260 |
| Center to Cutting Edge (Metric) | 96 |
| Short Description | CoroTurn® 107 head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 96 mm |
| Insert Style | RCMT 1204M0 |
| ANSI Code | SL70-SRDCL-75-12HP |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 435.113 lbf/in2 |
| Torque | 3 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Body Diameter (Decimal) | 2.76 |
| Body Diameter (Metric) | 70 |
| Clamping Width (Decimal) | 2.76 |
| Clamping Width (Metric) | 70 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Insert Seat Size Code | 12 |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Cutting Depth (Decimal) | 2.95 |
| Max. Cutting Depth (Metric) | 75 |
| Max. Hole Depth | 18 mm |
| Max. Hole Depth (Decimal) | 0.71 |
| Max. Hole Depth (Metric) | 18 |
| Max. Overhang (Decimal) | 0.71 |
| Max. Overhang (Metric) | 18 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.996 LB |
| Height Packed Product Metric | 70 mm |
| Height Packed Product Imperial | 2.756 inch |
| ISO Code (packed) | SL70-SRDCL-75-12HP |
| Length Packed Product Metric | 119 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL70-SRDCL-75-12HP |
| Length Packed Product Imperial | 4.685 inch |
