Sandvik Coromant
5937374

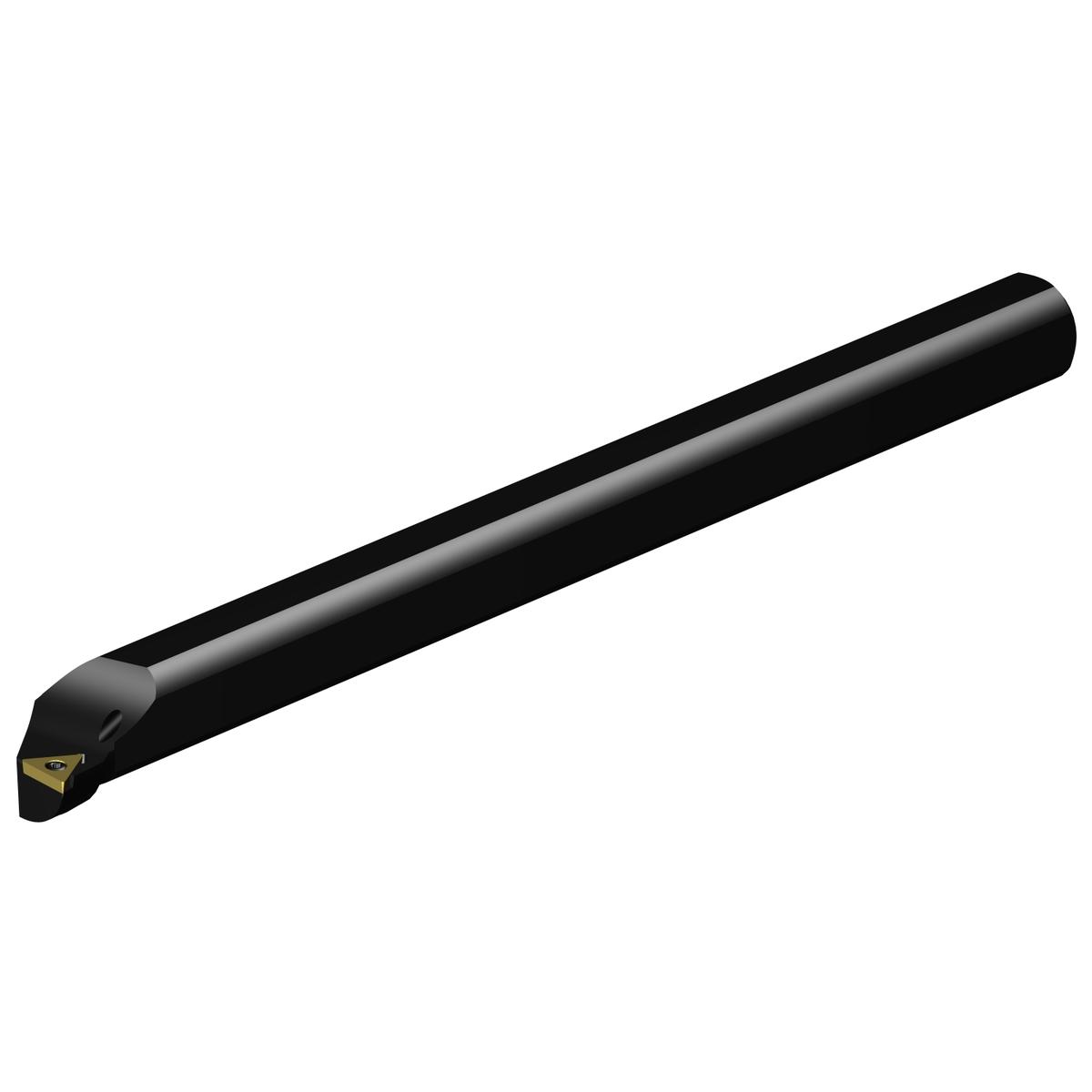

Sandvik Coromant 5937374
Specifications
| Minimum Bore Diameter (Metric) | 25 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.98 |
| Shank Diameter (Metric) | 20 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 250 |
| Shank Diameter (Inch) | 0.79 |
| Overall Length (Inch) | 9.84 |
| Short Description | CoroTurn® 107 boring bar for turning |
| Unit Of Measure | Metric |
| Series | CoroTurn 107 |
| Shank Height (Metric) | 18 |
| Shank Height (Decimal) | 0.71 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 250 mm |
| Shank Diameter | 20 mm |
| Coolant Through | Yes |
| Tool Lead Angle | -1 degrees |
| ANSI Code | A20S-STFCR 11 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Body Diameter (Decimal) | 0.79 |
| Body Diameter (Metric) | 20 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.51 |
| Overall Width (Metric) | 13 |
| Inclination Angle | -2.761 degrees |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 3.15 |
| Max. Overhang (Metric) | 80 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 25 mm |
| Min. Overhang (Decimal) | 1.18 |
| Min. Overhang (Metric) | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.1 LB |
| Height Packed Product Metric | 30 mm |
| Height Packed Product Imperial | 1.181 inch |
| ISO Code (packed) | A20S-STFCR11 |
| Length Packed Product Metric | 253 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A20S-STFCR 11 |
| Length Packed Product Imperial | 9.961 inch |
| EAN Code | 25937374 |
