Sandvik Coromant
5954539

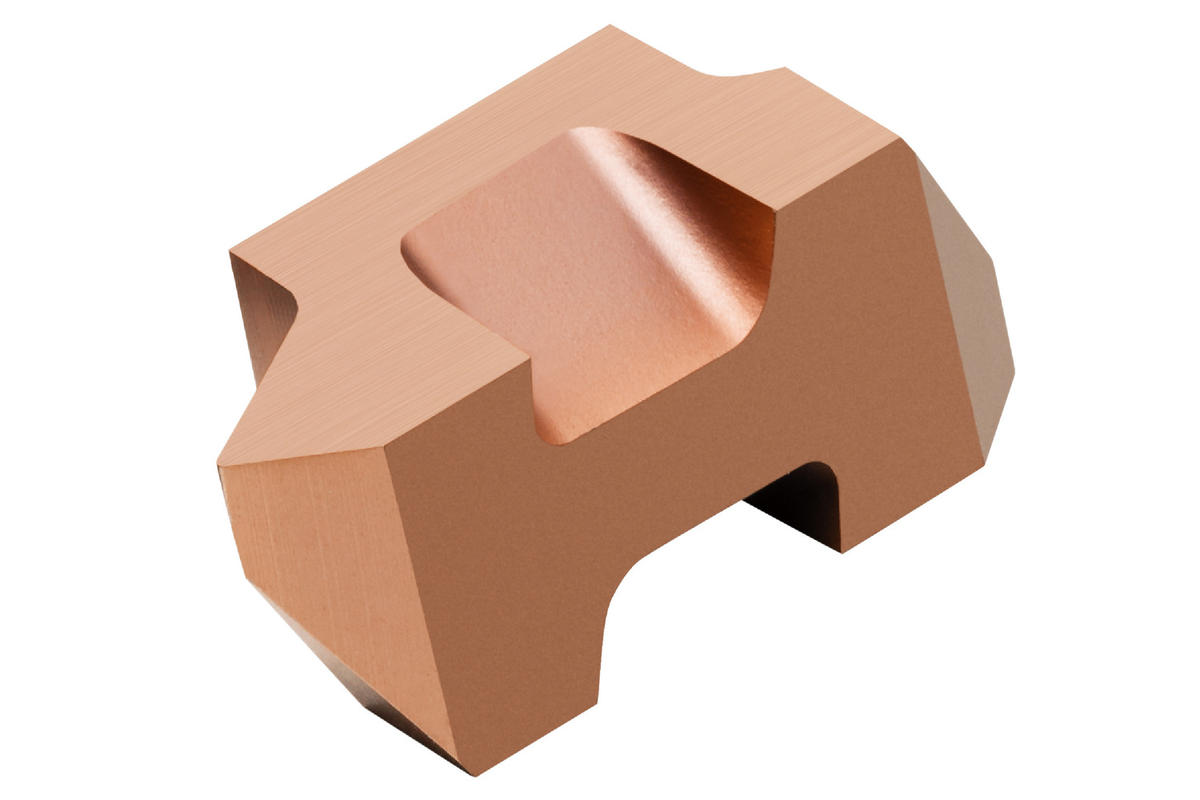

Sandvik Coromant 5954539
Specifications
| Insert Style | TLT |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiAlN |
| Short Description | Top Lok insert for thread turning |
| Unit Of Measure | Imperial |
| Grade | 1125 |
| Series | Top Lok |
| Size | 2 |
| Thread Type | External/Internal |
| Thread Form | VP60 |
| Thread Pitch | 0.02 to 0.08 Inch |
| Threads per Inch | 12 to 44 |
| Thread Profile Type | Partial |
| Thickness | 0.22 Inch |
| Thread Pitch (Decimal) | 0.024 to 0.079 |
| Thread Pitch (Metric) | 0.6 to 2 |
| Thickness (Decimal) | 0.22 |
| Thickness (Metric) | 5.56 |
| ANSI Code | TLTF-2R 1125 |
| ISO Code | TLTF-2R 1125 |
| Hand of Insert | Right |
| Corner Radius (Decimal) | 0.003 |
| Corner Radius (Metric) | 0.08 |
| Coating Process Type | PVD |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Theoretical Thread Height (Decimal) | 0.06 |
| Theoretical Thread Height (Metric) | 1.58 |
| Profile Distance EX (Decimal) | 0.11 |
| Profile Distance EX (Metric) | 2.79 |
| ISO Material Classification | PMKNSH |
| Country of Origin | United States |
| Base Item Number | 2017 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.004 LB |
| Height Packed Product Metric | 11 mm |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | TLTF-2R1125 |
| Insert Size | 2 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TLTF-2R 1125 |
| Length Packed Product Imperial | 3.74 inch |
