Sandvik Coromant
5961365

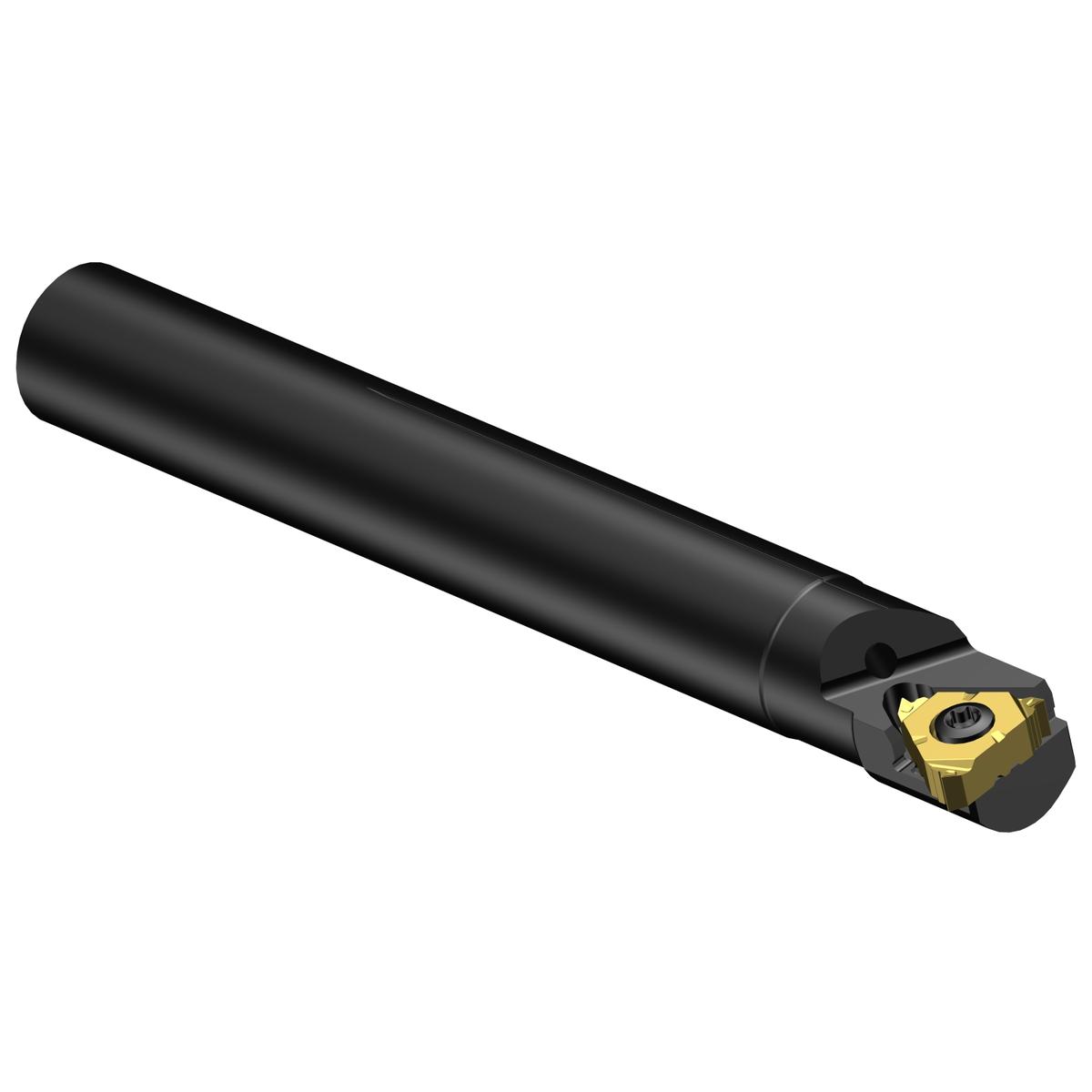

Sandvik Coromant 5961365
Specifications
| Minimum Bore Diameter (Metric) | 20 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.79 |
| Shank Diameter (Metric) | 16 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 125 |
| Shank Diameter (Inch) | 0.63 |
| Overall Length (Inch) | 4.92 |
| Short Description | CoroThread® 266 boring bar for grooving |
| Unit Of Measure | Metric |
| Series | CoroThread 266 |
| Overall Length | 125 mm |
| Shank Diameter | 16 mm |
| Coolant Through | Yes |
| ANSI Code | 254LKF-16-16-R |
| Usable Length (Decimal) | 1.06 |
| Usable Length (Metric) | 27 |
| Workpiece Side Body Angle | 90 degrees |
| Body Diameter (Decimal) | 0.63 |
| Body Diameter (Metric) | 16 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.47 |
| Overall Width (Metric) | 12 |
| Clamping Type Code | Screw/Clamp |
| Torque | 3 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1187 |
| Max. Cutting Depth (Decimal) | 0.05 |
| Max. Cutting Depth (Metric) | 1.3 |
| Max. Overhang (Decimal) | 1.89 |
| Max. Overhang (Metric) | 48 |
| Min Bore Diameter | 20 mm |
| Min. Overhang (Decimal) | 1.06 |
| Min. Overhang (Metric) | 27 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.351 LB |
| Height Packed Product Metric | 36 mm |
| Height Packed Product Imperial | 1.417 inch |
| ISO Code (packed) | 254LKF-16-16-R |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 254LKF-16-16-R |
| Length Packed Product Imperial | 5.079 inch |
