Sandvik Coromant
5961374
Sandvik Coromant 5961374
Specifications
| Minimum Bore Diameter (Metric) | 20 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.79 |
| Shank Diameter (Metric) | 16 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 200 |
| Shank Diameter (Inch) | 0.63 |
| Overall Length (Inch) | 7.87 |

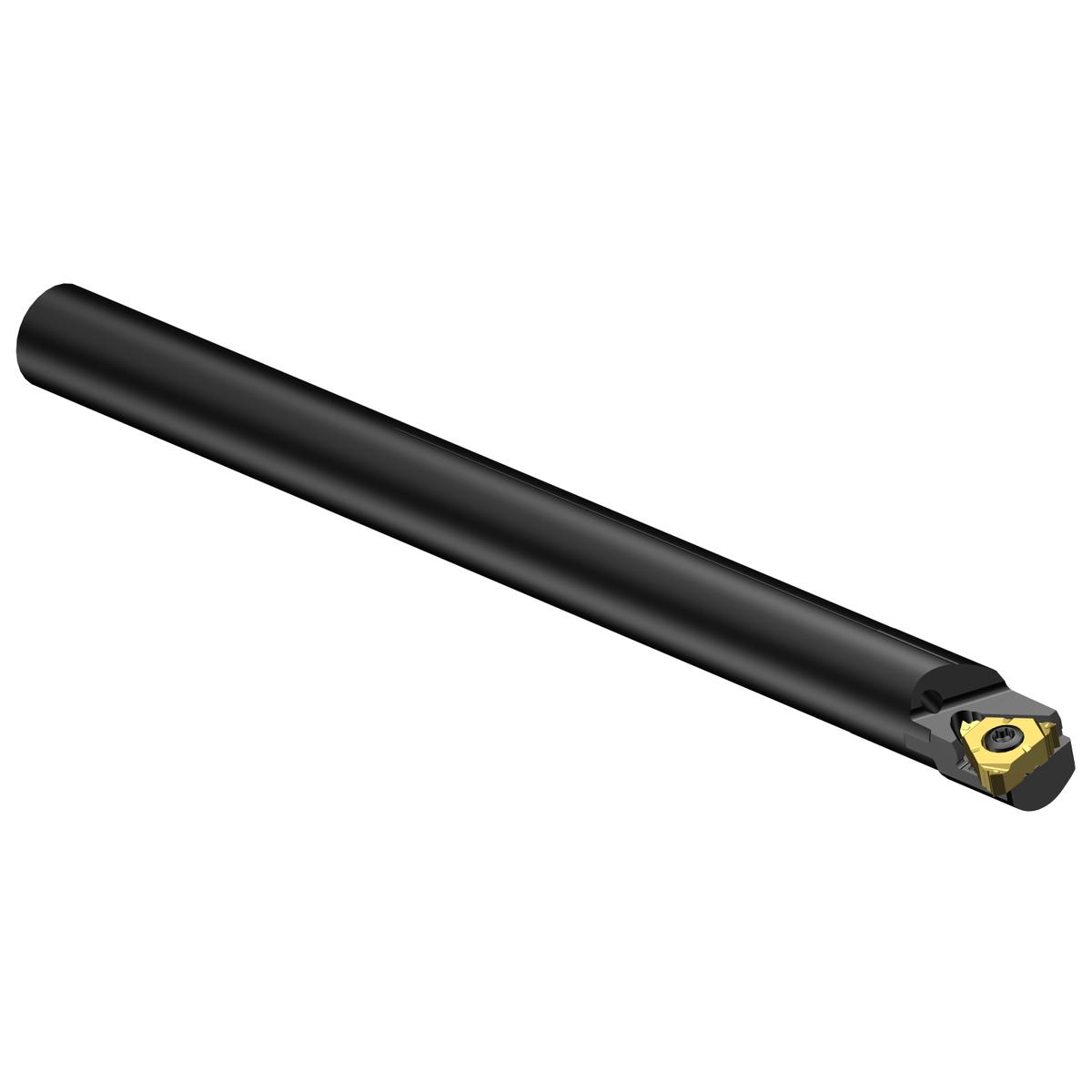

| Short Description | CoroThread® 266 solid carbide boring bar for thread turning |
| Unit Of Measure | Metric |
| Series | CoroThread 266 |
| Overall Length | 200 mm |
| Shank Diameter | 16 mm |
| Coolant Through | Yes |
| ANSI Code | 266LKF-16-16-RE |
| Usable Length (Decimal) | 3.78 |
| Usable Length (Metric) | 96 |
| Machine Side Body Angle | 0 degrees |
| Axial Clearance Angle | -15 degrees |
| Body Diameter (Decimal) | 0.63 |
| Body Diameter (Metric) | 16 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.47 |
| Overall Width (Metric) | 12 |
| Clamping Type Code | Screw/Clamp |
| Thread Helix Correction Angle | 2 degrees |
| Torque | 3 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | India |
| Base Item Number | 1187 |
| Max. Overhang (Decimal) | 3.78 |
| Max. Overhang (Metric) | 96 |
| Min Bore Diameter | 20 mm |
| Min. Overhang (Decimal) | 1.31 |
| Min. Overhang (Metric) | 33.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.582 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | 266LKF-16-16-RE |
| Length Packed Product Metric | 237 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 266LKF-16-16-RE |
| Length Packed Product Imperial | 9.331 inch |
