Sandvik Coromant
5961375

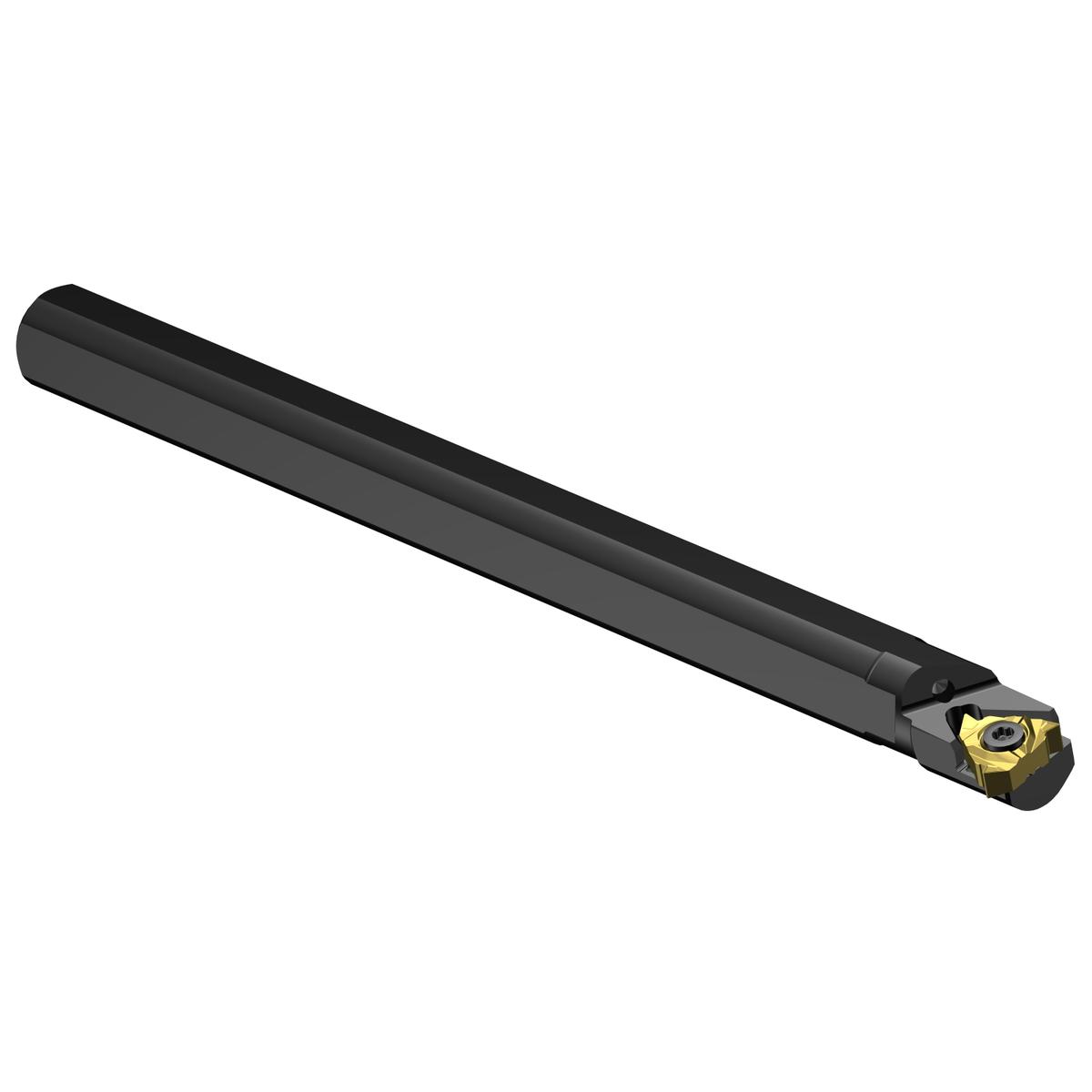

Sandvik Coromant 5961375
Specifications
| Minimum Bore Diameter (Metric) | 25 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.98 |
| Shank Diameter (Metric) | 20 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 250 |
| Shank Diameter (Inch) | 0.79 |
| Overall Length (Inch) | 9.84 |
| Short Description | CoroThread® 266 boring bar for thread turning |
| Unit Of Measure | Metric |
| Series | CoroThread 266 |
| Shank Height (Metric) | 18 |
| Shank Height (Decimal) | 0.71 |
| Overall Length | 250 mm |
| Shank Diameter | 20 mm |
| Coolant Through | Yes |
| ANSI Code | 266LKF-20-22 |
| Usable Length (Decimal) | 2.36 |
| Usable Length (Metric) | 60 |
| Machine Side Body Angle | 0 degrees |
| Axial Clearance Angle | -15 degrees |
| Body Diameter (Decimal) | 0.79 |
| Body Diameter (Metric) | 20 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.59 |
| Overall Width (Metric) | 15 |
| Clamping Type Code | Screw/Clamp |
| Thread Helix Correction Angle | 2 degrees |
| Torque | 5 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 1187 |
| Max. Overhang (Decimal) | 2.36 |
| Max. Overhang (Metric) | 60 |
| Min Bore Diameter | 25 mm |
| Min. Overhang (Decimal) | 1.38 |
| Min. Overhang (Metric) | 35 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.098 LB |
| Height Packed Product Metric | 42 mm |
| Height Packed Product Imperial | 1.654 inch |
| ISO Code (packed) | 266LKF-20-22 |
| Length Packed Product Metric | 257 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 266LKF-20-22 |
| Length Packed Product Imperial | 10.118 inch |
