Sandvik Coromant
5961406
Sandvik Coromant 5961406
Specifications
| Center to Cutting Edge (Inch) | 0.55 |
|---|---|
| Bore Diameter (Inch) | 0.98 |
| Size | 20 |
| Series | CoroThread 266 |
| Bore Diameter (Metric) | 25 |
| Center to Cutting Edge (Metric) | 14 |

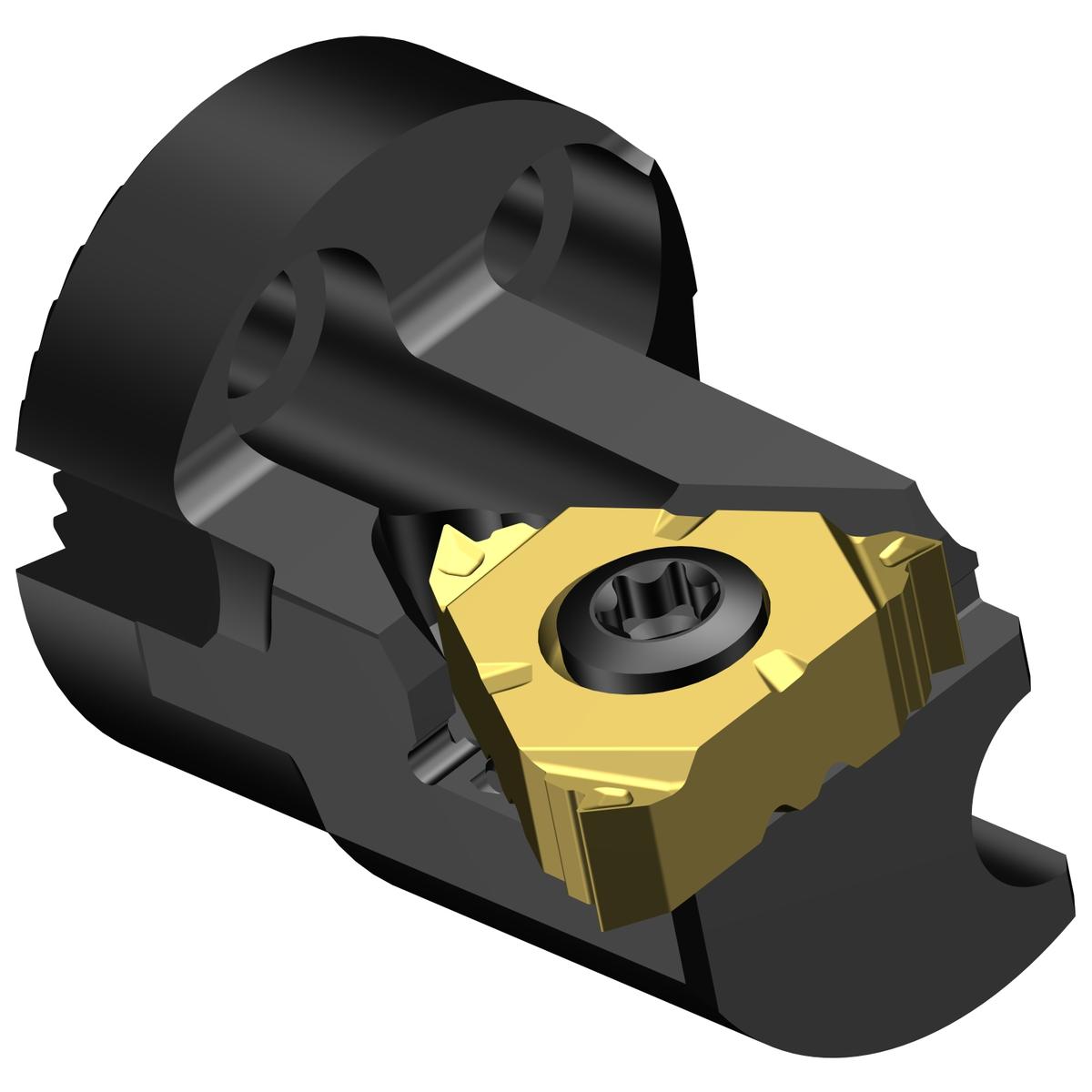

| Short Description | CoroThread® 266 head for thread turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 14 mm |
| Insert Style | 266.LL-16 |
| ANSI Code | SL-266LKF-202514-16 |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Axial Clearance Angle | -15 degrees |
| Thread Helix Correction Angle | 2 degrees |
| Coolant Entry Style Code | 8: Decentral Over Slots On The Shank |
| Country of Origin | India |
| Base Item Number | 1187 |
| Max. Hole Depth | 25 mm |
| Max. Hole Depth (Decimal) | 0.98 |
| Max. Hole Depth (Metric) | 25 |
| Max. Overhang (Decimal) | 0.98 |
| Max. Overhang (Metric) | 25 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.064 LB |
| Height Packed Product Metric | 40 mm |
| Height Packed Product Imperial | 1.575 inch |
| ISO Code (packed) | SL-266LKF-202514-16 |
| Length Packed Product Metric | 80 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL-266LKF-202514-16 |
| Length Packed Product Imperial | 3.15 inch |
