Sandvik Coromant
5962013
Sandvik Coromant 5962013
Specifications
| Overall Length (Metric) | 69.85 |
|---|---|
| Overall Length (Inch) | 2.75 |
| Shank Width (Inch) | 0.63 |
| Shank Width (Metric) | 15.88 |
| Insert Style | QS-R/LF123T/U..B (INCH) |
| Base Item Number | 1072 |
| Max. Cutting Depth | 0.25 Inch |
| Max. Cutting Depth (Decimal) | 0.25 |
| Max. Cutting Depth (Metric) | 6.35 |
| Max. Overhang (Decimal) | 1.25 |
| Max. Overhang (Metric) | 31.7 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.251 LB |

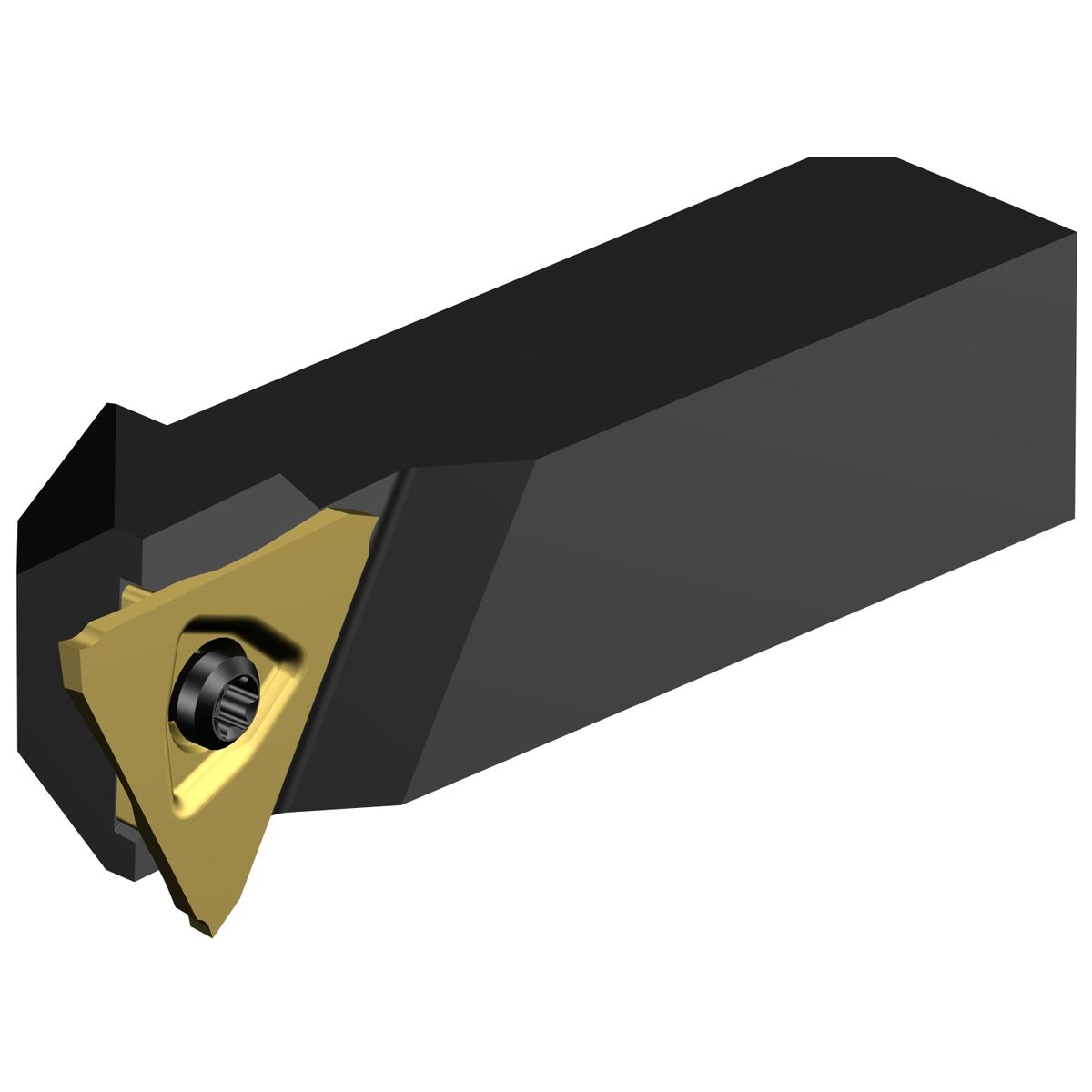

| Short Description | CoroCut® 3 QS shank tool for parting and grooving |
| Series | CoroCut 3 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123T3-CM |
| Shank Height | 0.63 Inch |
| Shank Width | 0.63 Inch |
| Shank Height (Decimal) | 0.63 |
| Shank Height (Metric) | 15.88 |
| ANSI Code | QS-RF123T023-10B |
| Coolant Through | No |
| Overall Width (Decimal) | 0.63 |
| Overall Width (Metric) | 15.88 |
| Overall Height (Decimal) | 0.63 |
| Overall Height (Metric) | 15.88 |
| Insert Seat Size Code | T |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Screw/Clamp |
| Torque | 3 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
