Sandvik Coromant
5962241

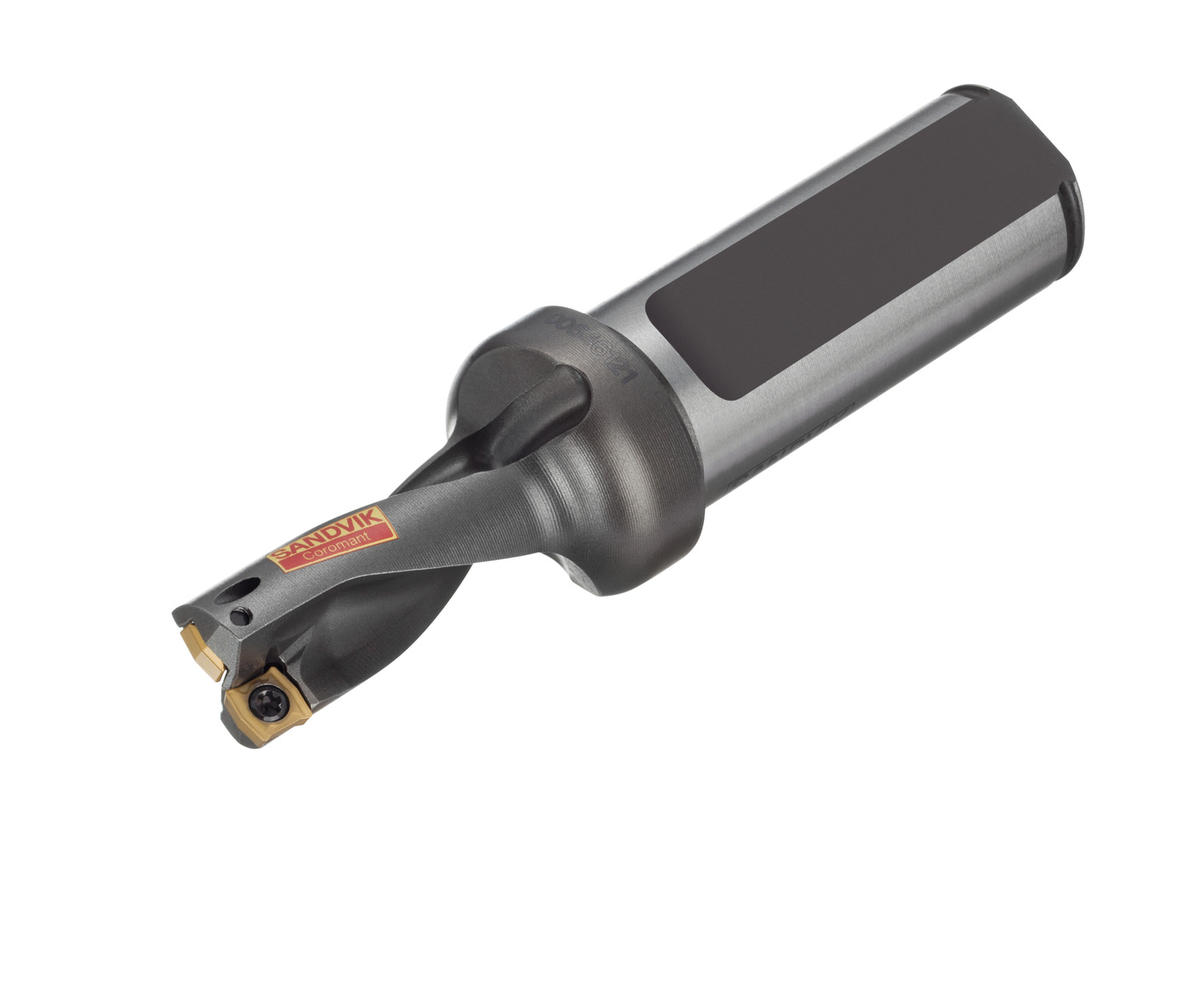

Sandvik Coromant 5962241
Specifications
| Cutting Diameter (Metric) | 15.5 |
|---|---|
| Shank Diameter (Metric) | 20 |
| Series | CoroDrill 881 |
| Cutting Diameter (Inch) | 0.61 |
| Shank Diameter (Inch) | 0.79 |
| Depth x Diameter Ratio | 2 x D |
| Short Description | CoroDrill® 881 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 15.5 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 20 mm |
| Coolant Through | Yes |
| ANSI Code | 881-D1550L20-02 |
| Overall Length (Decimal) | 3.9 |
| Overall Length (Metric) | 99 |
| Functional Length (Decimal) | 1.92 |
| Point Length (Decimal) | 0.01 |
| Point Length (Metric) | 0.27 |
| Functional Length (Metric) | 48.73 |
| Body Length (Decimal) | 1.38 |
| Body Length (Metric) | 35 |
| Usable Length (Decimal) | 1.22 |
| Usable Length (Metric) | 31 |
| Cutting Edge Angle | 78 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Lower (Decimal) | -0.003937 |
| Achievable Hole Tolerance Lower (Metric) | -0.1 |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.3 |
| Usable Length Diameter Ratio | 2 |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2024 |
| Body Length (Inch) | 1.38 |
| Max. Adjustment Limit (Decimal) | 0.03 |
| Max. Adjustment Limit (Metric) | 0.75 |
| Max. Rotational Speed | 33000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.474 LB |
| Height Packed Product Metric | 40 mm |
| Height Packed Product Imperial | 1.575 inch |
| ISO Code (packed) | 881-D1550L20-02 |
| Length Packed Product Metric | 132 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 881-D1550L20-02 |
| Length Packed Product Imperial | 5.197 inch |
