Sandvik Coromant
5962607
Sandvik Coromant 5962607
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.97 |
| Size | 40 |
| Series | T-Max P |
| Bore Diameter (Metric) | 50 |
| Center to Cutting Edge (Metric) | 27 |

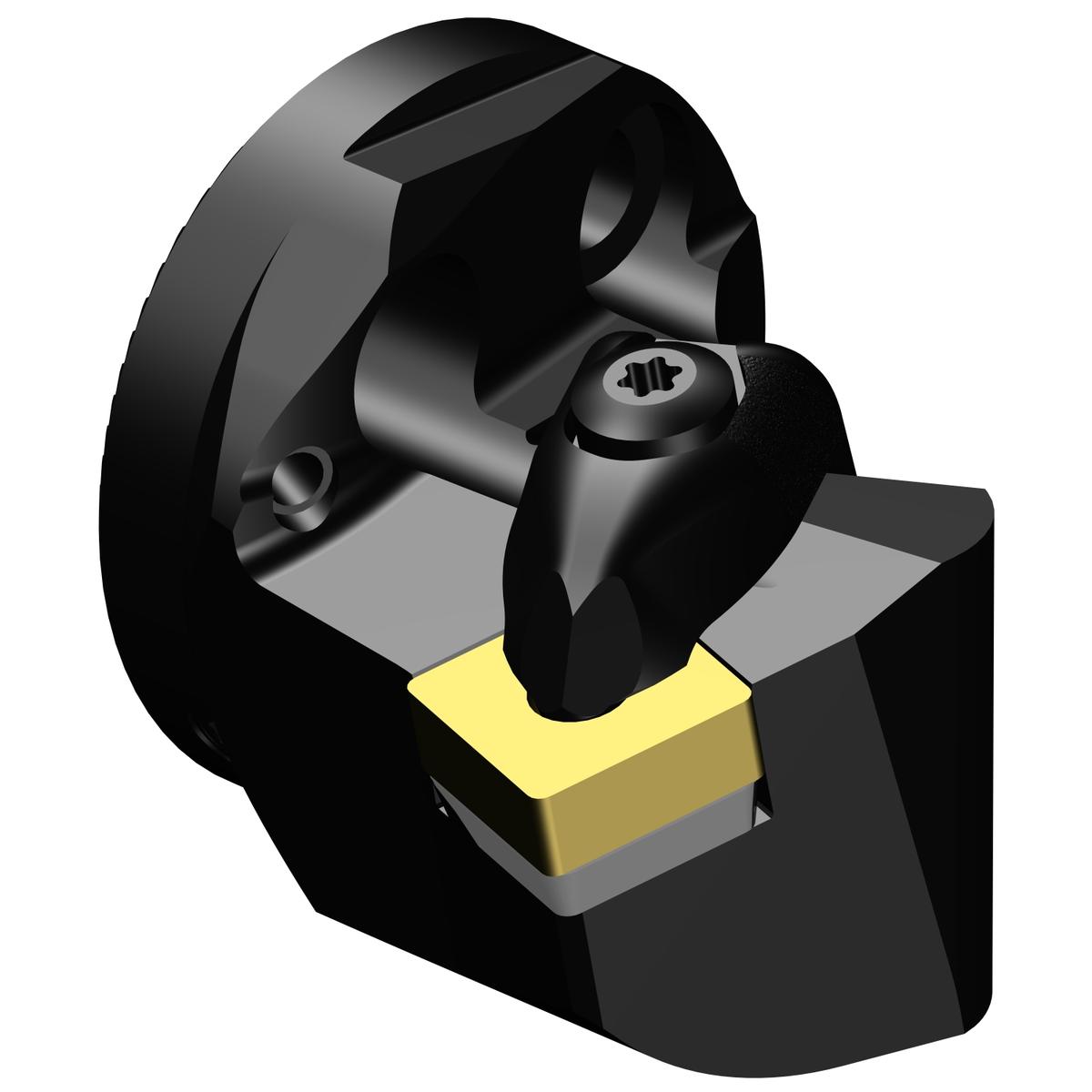

| Short Description | T-Max® P head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | SNMG 120408 |
| ANSI Code | 570-DSKNL-40-12 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -13 degrees |
| Orthogonal Rake Angle | -6 degrees |
| Tool Cutting Edge Angle | 75 degrees |
| Tool Lead Angle | 15 degrees |
| Protruding Length (Decimal) | 1.62 |
| Protruding Length (Metric) | 41.05 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Norway |
| Base Item Number | 1049 |
| Max. Hole Depth | 38 mm |
| Max. Hole Depth (Decimal) | 1.5 |
| Max. Hole Depth (Metric) | 38 |
| Max. Overhang (Decimal) | 1.5 |
| Max. Overhang (Metric) | 38 |
| Maximum Ramping Angle | 10 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.598 LB |
| Height Packed Product Metric | 72 mm |
| Height Packed Product Imperial | 2.835 inch |
| ISO Code (packed) | 570-DSKNL-40-12 |
| Length Packed Product Metric | 83 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 570-DSKNL-40-12 |
| Length Packed Product Imperial | 3.268 inch |
