Sandvik Coromant
5963301
Sandvik Coromant 5963301
Specifications
| Coating/Finish | AlCrN |
|---|---|
| Shank Type | Cylindrical |
| Diameter (Metric) | 2 |
| Overall Length (Inch) | 2.17 |
| Length Of Cut (Inch) | 0.07 |
| Overall Length (Metric) | 55 |
| Shank Size (Metric) | 6 |
| Shank Size (Inch) | 0.24 |
| Material | Solid Carbide |
| Length Of Cut (Metric) | 1.7 |
| Diameter (Inch) | 0.08 |
| Unit Of Measure | Metric |
| Corner Radius (Decimal) | 0.04 |
| Corner Radius (Metric) | 1 |
| Neck Diameter (Decimal) | 0.08 |
| Neck Diameter (Metric) | 1.92 |
| Flute Helix Angle | 30 degrees |

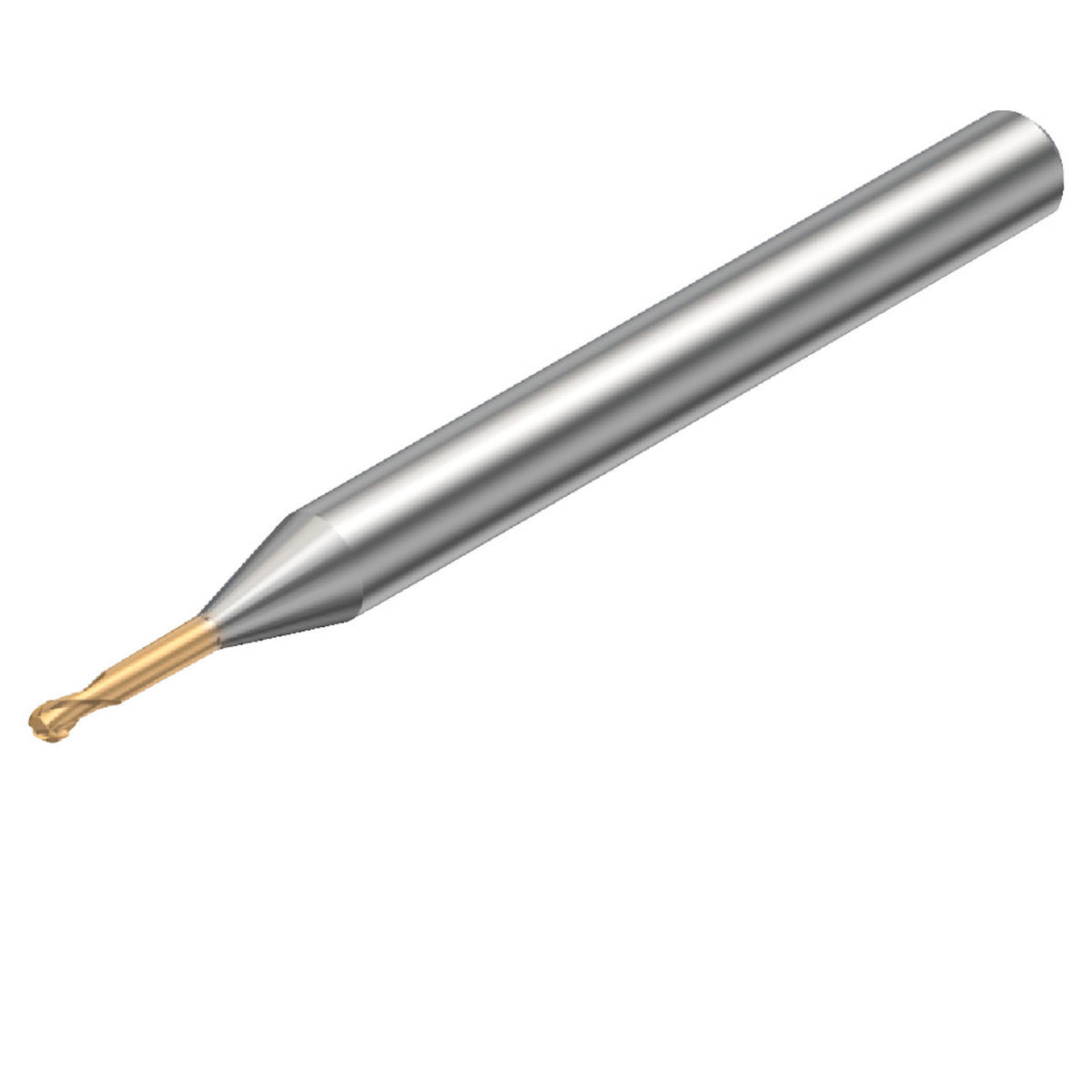

| Short Description | CoroMill® Plura solid carbide ball nose end mill for Profiling |
| Country of Origin | Japan |
| Overall Length | 55 mm |
| Length of Cut | 1.7 mm |
| Shank Size | 6 mm |
| Series | CoroMill Plura |
| Diameter | 2 mm |
| Coolant Through | No |
| ANSI Code | R216.42-02030-JC20G 1700 |
| Grade | 1700 |
| Coating Process Type | PVD |
| Usable Length (Decimal) | 0.79 |
| Usable Length (Metric) | 20 |
| Body Length (Decimal) | 0.79 |
| Body Length (Metric) | 20 |
| Body Diameter (Decimal) | 0.08 |
| Body Diameter (Metric) | 1.92 |
| Body Half Taper Angle | 0 degrees |
| Radial Rake Angle | -6 degrees |
| Axial Rake Angle | 1.5 degrees |
| Shank Diameter Tolerance | H5 |
| Cutting Edge Count | 2 |
| Coolant Entry Style Code | 0: Without Coolant |
| Material Classification Level All | H |
| Base Item Number | 1040 |
| Body Length (Inch) | 0.79 |
| Max. Rotational Speed | 80000 1/min |
| Maximum Ramping Angle | 15 degrees |
| Neck Diameter (Inch) | 0.08 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.04 LB |
| Height Packed Product Metric | 13 mm |
| Height Packed Product Imperial | 0.512 inch |
| ISO Code (packed) | R216.42-02030-JC20G1700 |
| Length Packed Product Metric | 65 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R216.42-02030-JC20G 1700 |
| Length Packed Product Imperial | 2.559 inch |
| Substrate Type | Carbide |
