Sandvik Coromant
5963313
Sandvik Coromant 5963313
Specifications
| Coating/Finish | AlCrN |
|---|---|
| Shank Type | Cylindrical |
| Diameter (Metric) | 6 |
| Overall Length (Inch) | 3.54 |
| Length Of Cut (Inch) | 0.35 |
| Overall Length (Metric) | 90 |
| Shank Size (Metric) | 6 |
| Shank Size (Inch) | 0.24 |
| Material | Solid Carbide |
| Length Of Cut (Metric) | 9 |
| Diameter (Inch) | 0.24 |
| Unit Of Measure | Metric |
| Corner Radius (Decimal) | 0.12 |
| Corner Radius (Metric) | 3 |
| Flute Helix Angle | 30 degrees |

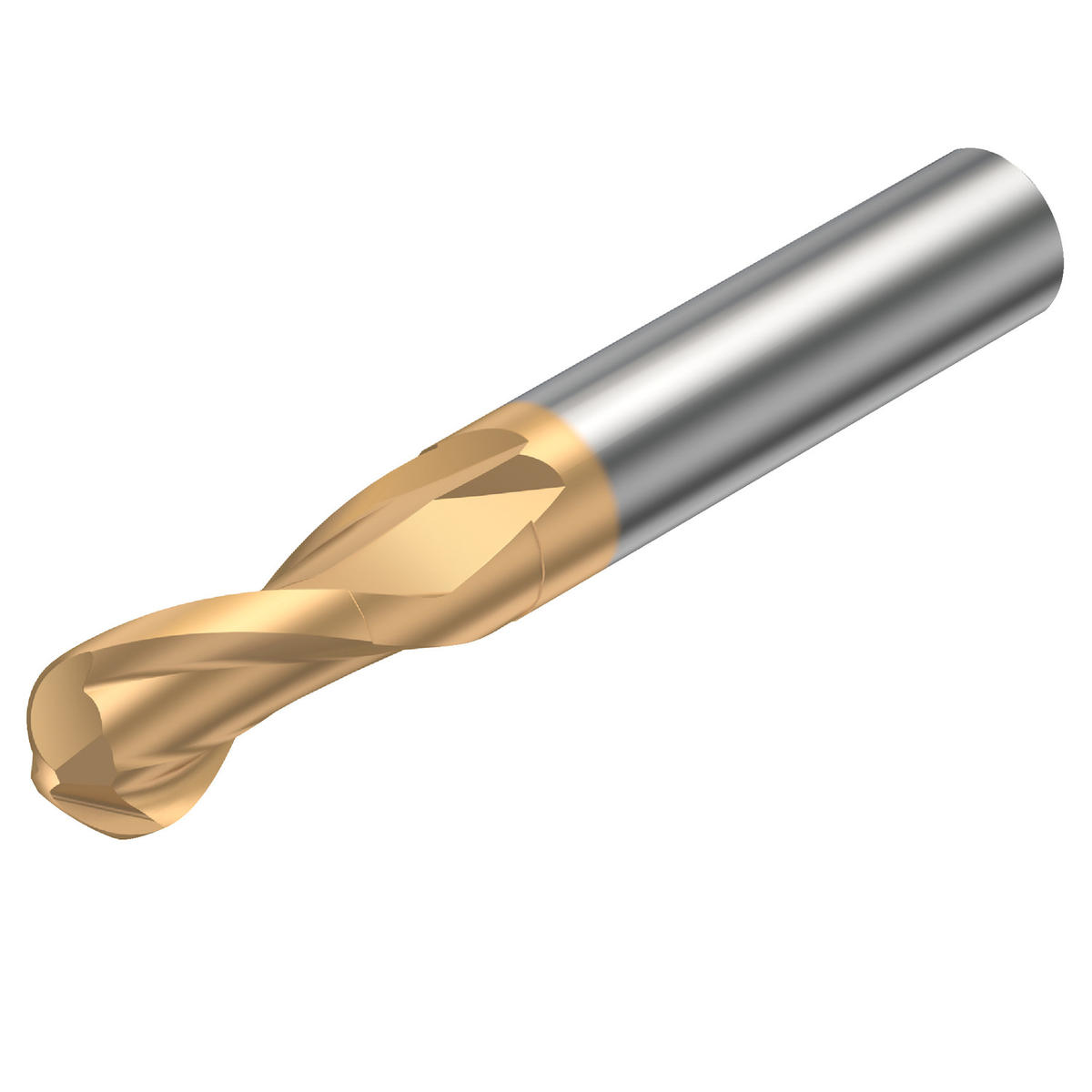

| Short Description | CoroMill® Plura solid carbide ball nose end mill for Profiling |
| Country of Origin | Japan |
| Overall Length | 90 mm |
| Length of Cut | 9 mm |
| Shank Size | 6 mm |
| Series | CoroMill Plura |
| Diameter | 6 mm |
| Coolant Through | No |
| ANSI Code | R216.42-06030-AC09G 1700 |
| Grade | 1700 |
| Coating Process Type | PVD |
| Usable Length (Decimal) | 0.35 |
| Usable Length (Metric) | 9 |
| Radial Rake Angle | -6 degrees |
| Axial Rake Angle | 1.5 degrees |
| Lower Cutting Diameter Tolerance (Decimal) | -0.000394 |
| Lower Cutting Diameter Tolerance (Metric) | -0.01 |
| Shank Diameter Tolerance | H5 |
| Cutting Edge Count | 2 |
| Coolant Entry Style Code | 0: Without Coolant |
| Material Classification Level All | H |
| Base Item Number | 1040 |
| Max. Regrinds | 1 |
| Max. Rotational Speed | 80000 1/min |
| Maximum Ramping Angle | 15 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.104 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | R216.42-06030-AC09G1700 |
| Length Packed Product Metric | 112 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R216.42-06030-AC09G 1700 |
| Length Packed Product Imperial | 4.409 inch |
| Substrate Type | Carbide |
