Sandvik Coromant
5965435

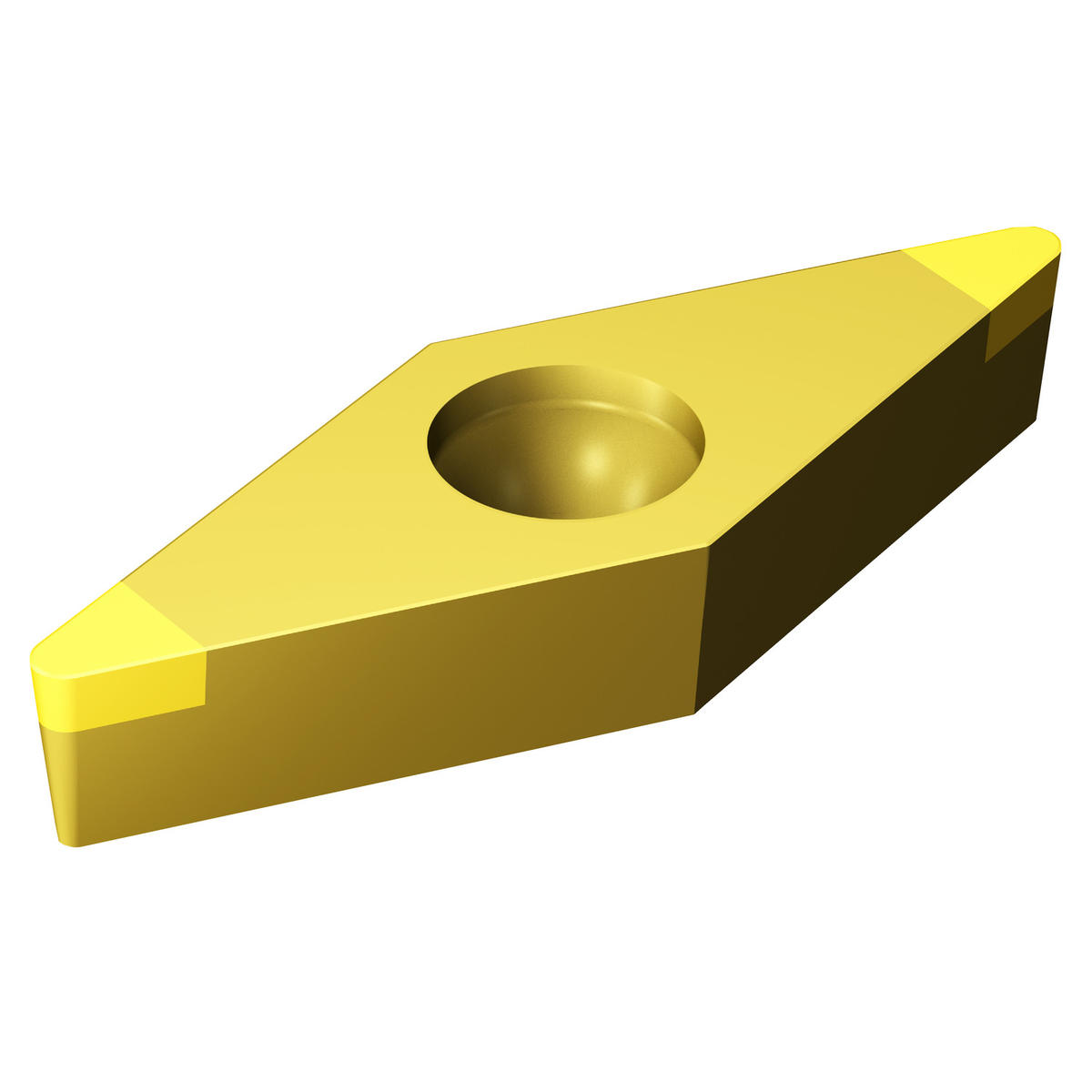

Sandvik Coromant 5965435
Specifications
| Coating/Finish | TiN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 0.4 |
| Material | CBN |
| Size | 331 |
| Corner Radius (Inch) | 0.02 |
| Style | VBGW |
| Thickness (Inch) | 0.19 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 7525 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 5 degrees |
| Face Land Width (Metric) | 0.1 |
| Face Land Width (Decimal) | 0.004 |
| Length (Decimal) | 0.16 |
| Length (Metric) | 4 |
| Face Land Angle | 20 degrees |
| Shape | Diamond |
| Country of Origin | Poland |
| Series | CoroTurn 107 |
| ANSI Code | VBGW331T0320F 7525 |
| ISO Code | VBGW160404T01020F 7525 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | CBN |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | KH |
| Base Item Number | 1053 |
| Length | 4 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.019 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | VBGW |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | VBGW160404T01020F7525 |
| Insert Size | 331 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | VBGW160404T01020F 7525 |
| Length Packed Product Imperial | 3.74 inch |
