Sandvik Coromant
6010142

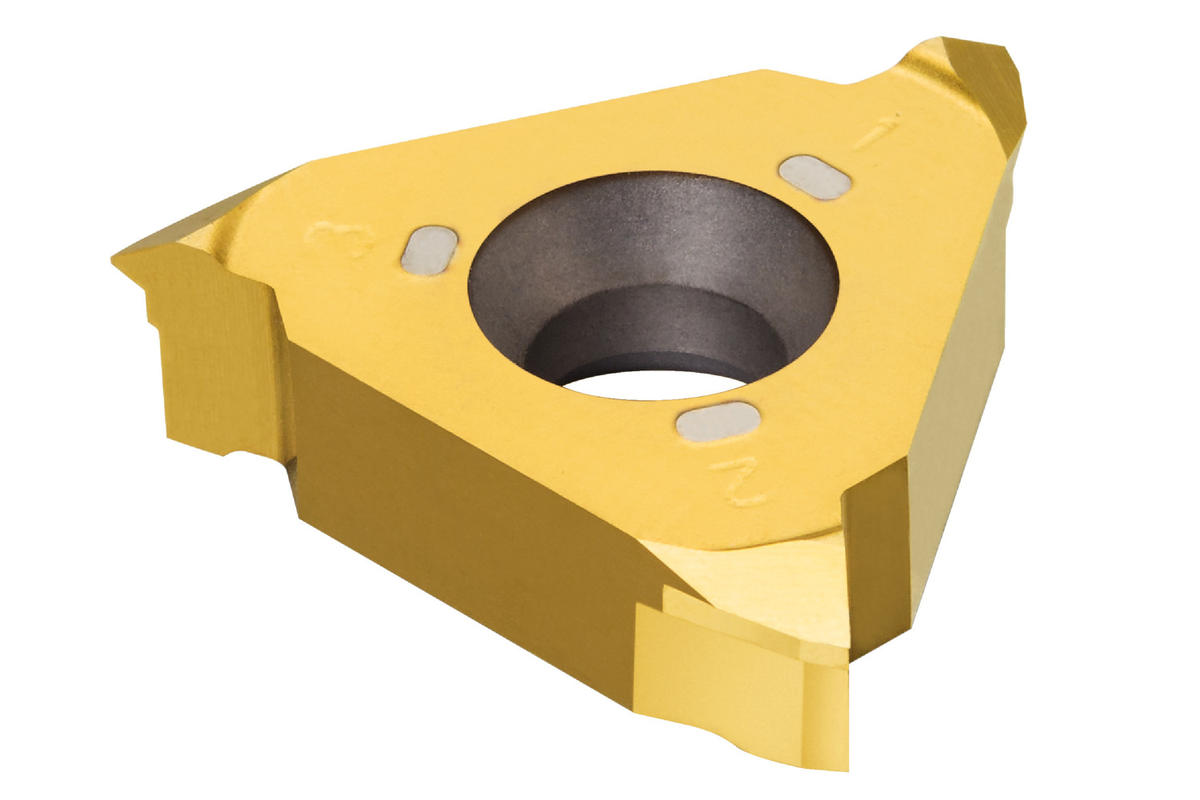

Sandvik Coromant 6010142
Specifications
| Insert Style | 328R |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiAlN+TiN |
| Short Description | CoroMill® 328 insert for thread milling |
| Unit Of Measure | Metric |
| Grade | 1025 |
| Series | CoroMill 328 |
| Size | 13 |
| Thread Type | Internal |
| Thread Form | M60 |
| Thread Pitch | 4 mm |
| Thread Profile Type | Full |
| Thickness | 5.25 mm |
| Thread Pitch (Decimal) | 0.16 |
| Thread Pitch (Metric) | 4 |
| Thickness (Decimal) | 0.21 |
| Thickness (Metric) | 5.25 |
| ANSI Code | 328R13-400 MM-TH 1025 |
| ISO Code | 328R13-400 MM-TH 1025 |
| Hand of Insert | Right |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.6 |
| Coating Process Type | PVD |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Thread Tolerance Class | IT 6 |
| Spot Chamfer (Decimal) | 0.02 |
| Spot Chamfer (Metric) | 0.5 |
| Theoretical Thread Height (Decimal) | 0.1 |
| Theoretical Thread Height (Metric) | 2.6 |
| Thread Height Difference (Decimal) | 0.017 |
| Thread Height Difference (Metric) | 0.43 |
| Profile Distance EX (Decimal) | 0.069 |
| Profile Distance EX (Metric) | 1.75 |
| Application | Milling, General |
| ISO Material Classification | PMKNSH |
| Country of Origin | France |
| Base Item Number | 1017 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.025 LB |
| Height Packed Product Metric | 18 mm |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | 328R13-400MM-TH1025 |
| Insert Size | 13 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 328R13-400 MM-TH 1025 |
| Length Packed Product Imperial | 5.827 inch |
