Sandvik Coromant
6035607
Sandvik Coromant 6035607
Specifications
| Shank Diameter (Metric) | 15.88 |
|---|---|
| Shank Diameter (Inch) | 0.63 |
| Series | CoroDrill 870 |

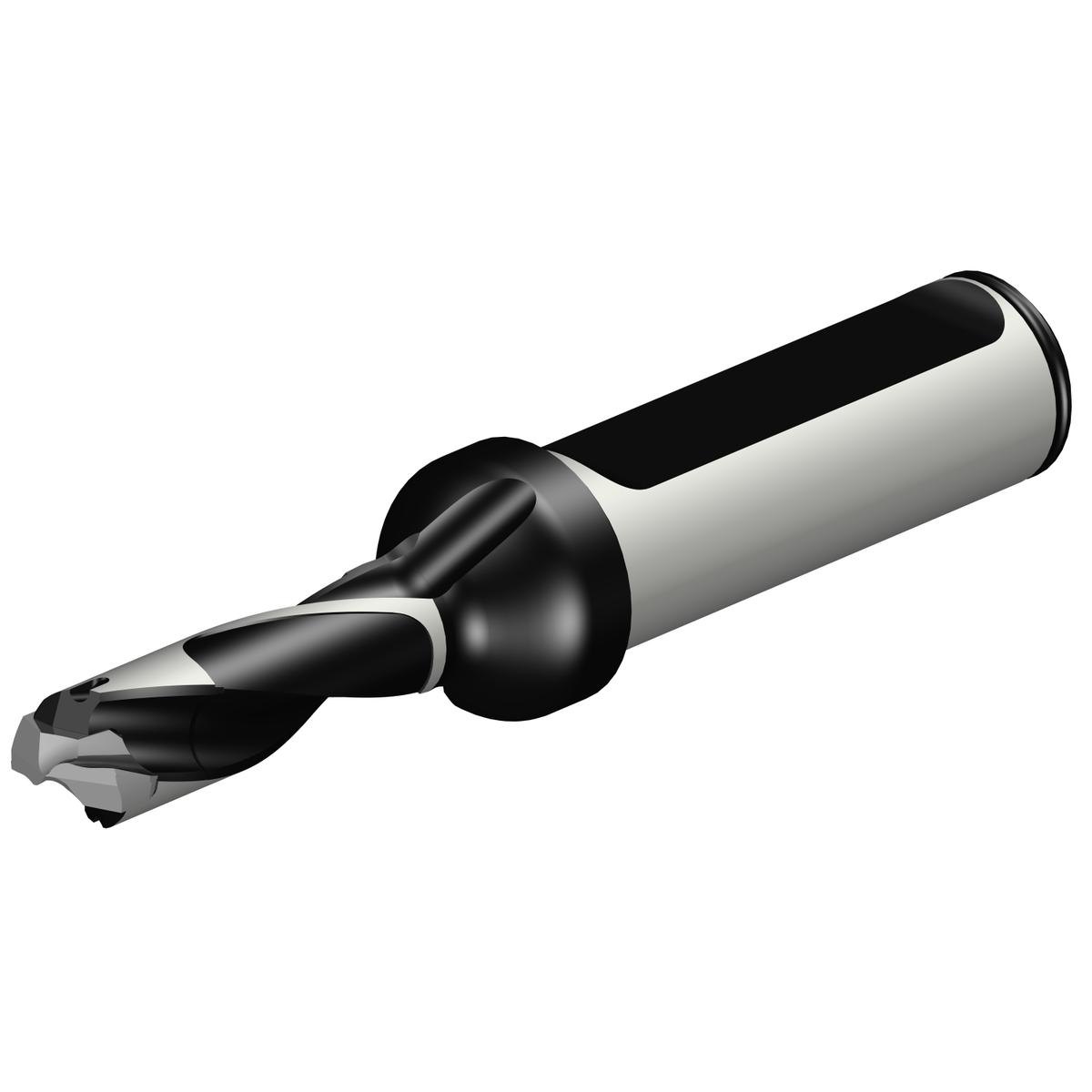

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Imperial |
| Depth x Diameter Ratio | 3 x D |
| Shank Diameter | 0.63 Inch |
| Coolant Through | Yes |
| ANSI Code | 870-1050-7LX063-3 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.43 |
| Cutting Diameter (Metric) | 10.9 |
| Overall Length (Decimal) | 3.82 |
| Overall Length (Metric) | 97 |
| Point Length (Decimal) | 0.07 |
| Point Length (Metric) | 1.69 |
| Functional Length (Decimal) | 1.86 |
| Functional Length (Metric) | 47.31 |
| Usable Length (Decimal) | 1.37 |
| Usable Length (Metric) | 34.67 |
| Body Length (Decimal) | 1.42 |
| Body Length (Metric) | 36 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 3.181 |
| Torque (ft lbf) | 0.443 |
| Torque (NM) | 0.6 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 1.42 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 0.43 Inch |
| Max. Cutting Diameter (Decimal) | 0.43 |
| Max. Cutting Diameter (Metric) | 10.99 |
| Max. Rotational Speed | 33000 1/min |
| Min. Cutting Diameter | 0.41 Inch |
| Min. Cutting Diameter (Decimal) | 0.41 |
| Min. Cutting Diameter (Metric) | 10.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.22 LB |
| Height Packed Product Metric | 36 mm |
| Height Packed Product Imperial | 1.417 inch |
| ISO Code (packed) | 870-1050-7LX063-3 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-1050-7LX063-3 |
| Length Packed Product Imperial | 5.079 inch |
