Sandvik Coromant
6035633
Sandvik Coromant 6035633
Specifications
| Shank Diameter (Metric) | 16 |
|---|---|
| Shank Diameter (Inch) | 0.63 |
| Series | CoroDrill 870 |

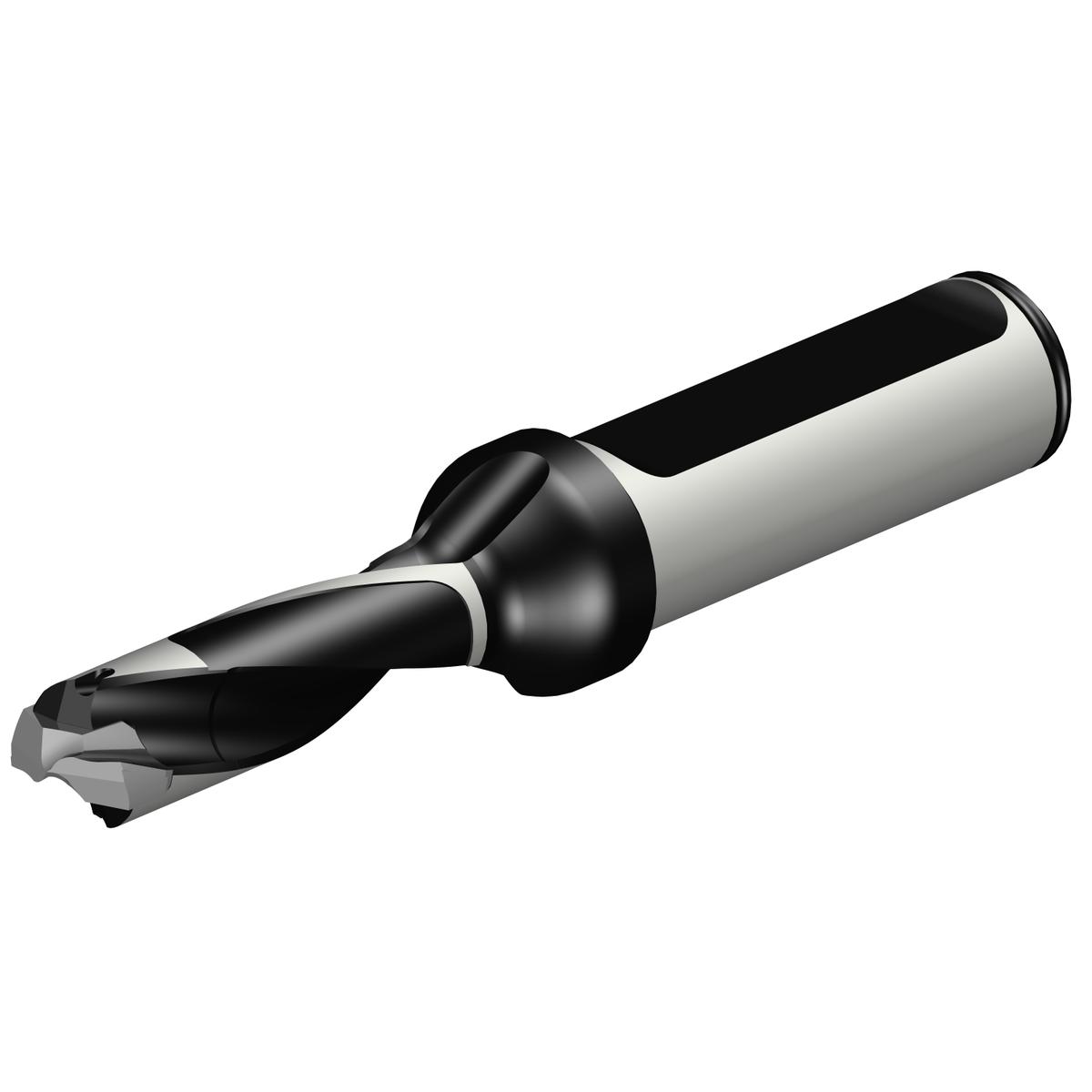

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Metric |
| Depth x Diameter Ratio | 3 x D |
| Shank Diameter | 16 mm |
| Coolant Through | Yes |
| ANSI Code | 870-1200-10L16-3 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.49 |
| Cutting Diameter (Metric) | 12.4 |
| Overall Length (Decimal) | 4.06 |
| Overall Length (Metric) | 103 |
| Point Length (Decimal) | 0.08 |
| Point Length (Metric) | 1.9 |
| Functional Length (Decimal) | 2.09 |
| Functional Length (Metric) | 53.1 |
| Usable Length (Decimal) | 1.55 |
| Usable Length (Metric) | 39.38 |
| Body Length (Decimal) | 1.65 |
| Body Length (Metric) | 42 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 3.176 |
| Torque (ft lbf) | 0.664 |
| Torque (NM) | 0.9 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 1.65 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 12.49 mm |
| Max. Cutting Diameter (Decimal) | 0.49 |
| Max. Cutting Diameter (Metric) | 12.49 |
| Max. Rotational Speed | 33000 1/min |
| Min. Cutting Diameter | 12 mm |
| Min. Cutting Diameter (Decimal) | 0.47 |
| Min. Cutting Diameter (Metric) | 12 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.234 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | 870-1200-10L16-3 |
| Length Packed Product Metric | 130 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-1200-10L16-3 |
| Length Packed Product Imperial | 5.118 inch |
