Sandvik Coromant
6035730
Sandvik Coromant 6035730
Specifications
| Shank Diameter (Metric) | 20 |
|---|---|
| Shank Diameter (Inch) | 0.79 |
| Series | CoroDrill 870 |

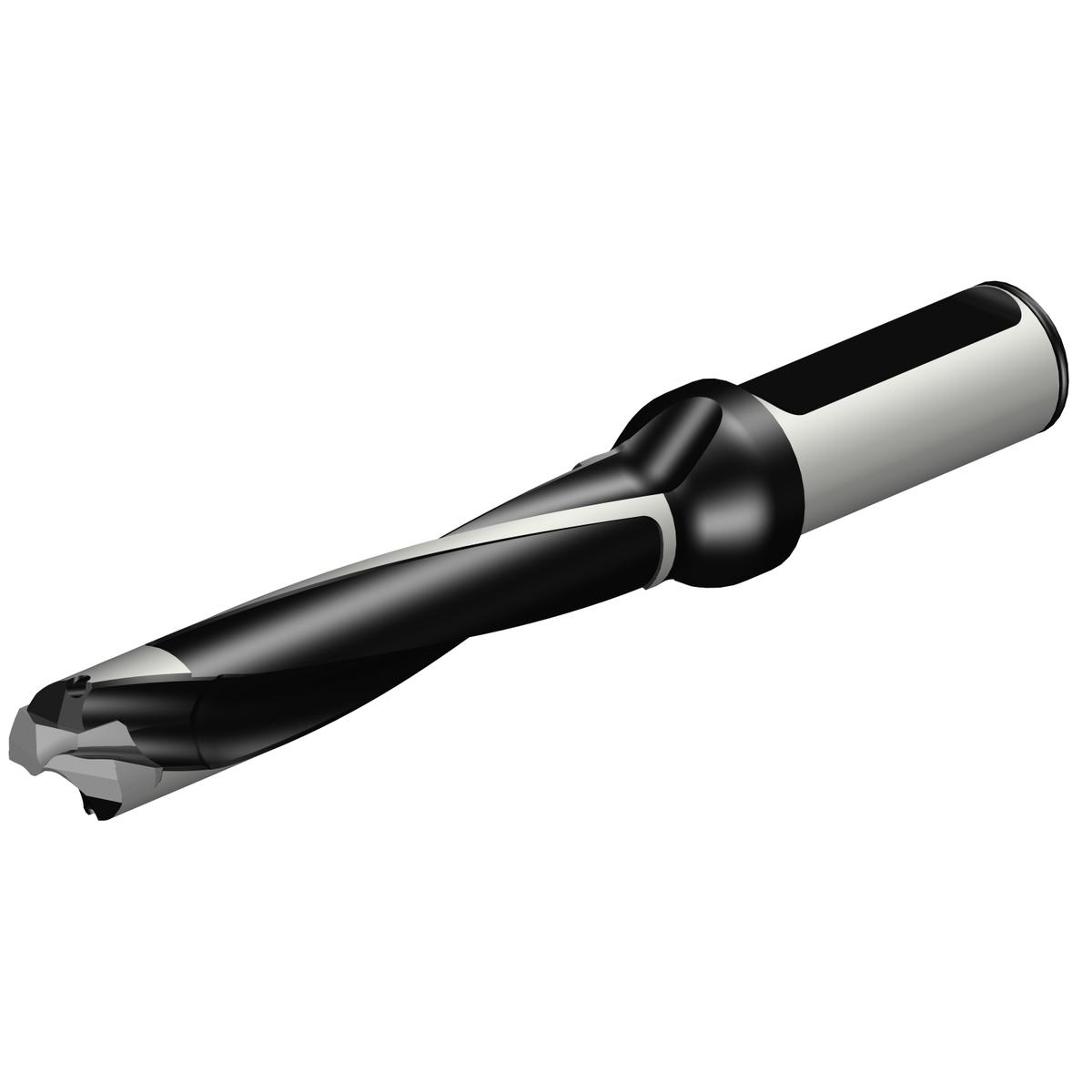

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Metric |
| Depth x Diameter Ratio | 5 x D |
| Shank Diameter | 20 mm |
| Coolant Through | Yes |
| ANSI Code | 870-1800-18L20-5 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.74 |
| Cutting Diameter (Metric) | 18.9 |
| Overall Length (Decimal) | 6.54 |
| Overall Length (Metric) | 166 |
| Point Length (Decimal) | 0.11 |
| Point Length (Metric) | 2.87 |
| Functional Length (Decimal) | 4.45 |
| Functional Length (Metric) | 113.13 |
| Usable Length (Decimal) | 3.85 |
| Usable Length (Metric) | 97.84 |
| Body Length (Decimal) | 3.94 |
| Body Length (Metric) | 100 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 5.177 |
| Torque (ft lbf) | 0.885 |
| Torque (NM) | 1.2 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 3.94 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 18.99 mm |
| Max. Cutting Diameter (Decimal) | 0.75 |
| Max. Cutting Diameter (Metric) | 18.99 |
| Max. Rotational Speed | 13500 1/min |
| Min. Cutting Diameter | 18 mm |
| Min. Cutting Diameter (Decimal) | 0.71 |
| Min. Cutting Diameter (Metric) | 18 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.549 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | 870-1800-18L20-5 |
| Length Packed Product Metric | 166 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-1800-18L20-5 |
| Length Packed Product Imperial | 6.535 inch |
