Sandvik Coromant
6038480
Sandvik Coromant 6038480
Specifications
| Center to Cutting Edge (Inch) | 1.78 |
|---|---|
| Coolant Fed | Yes |
| Size | 40 |
| Series | CoroCut 1-2 |
| Center to Cutting Edge (Metric) | 45.1 |

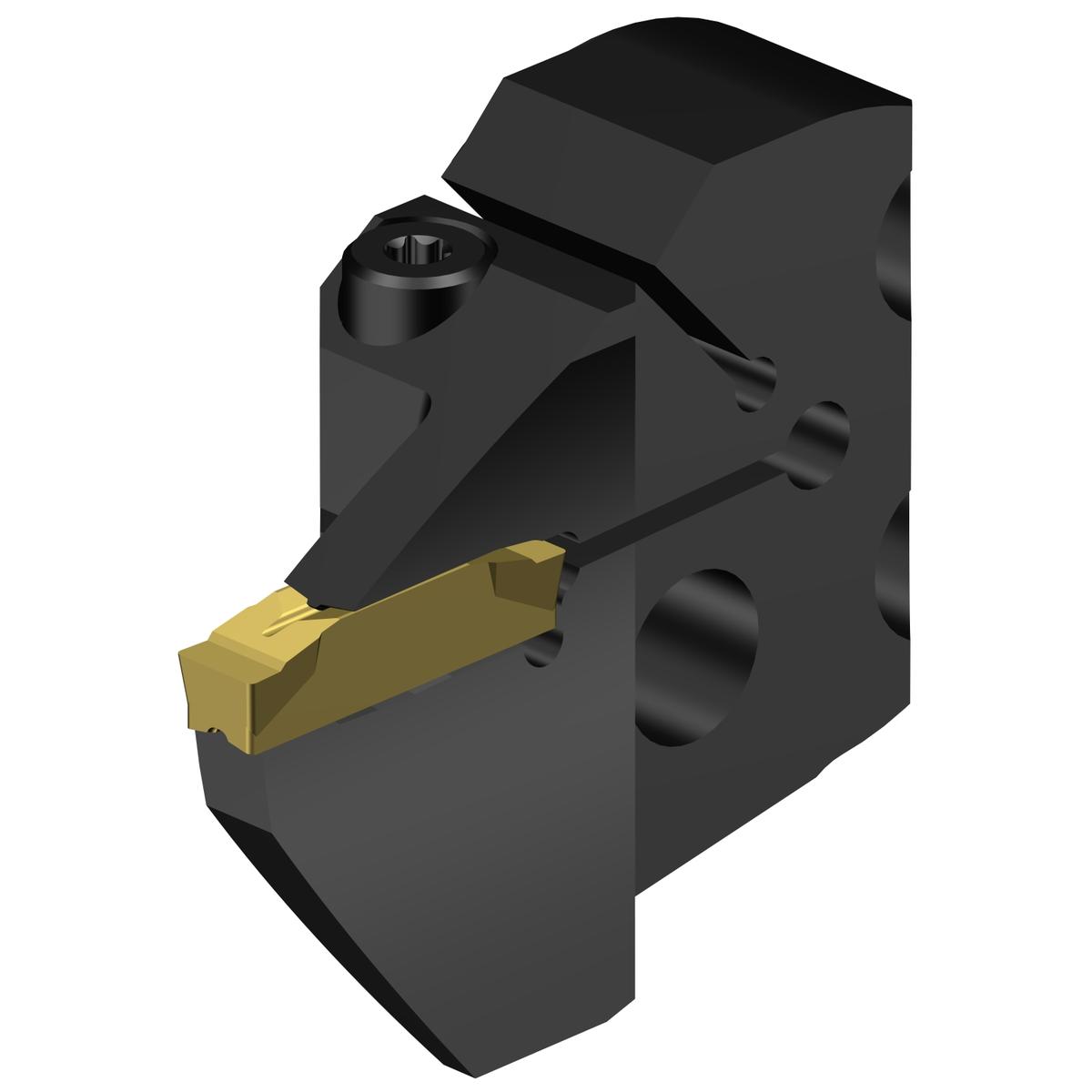

| Short Description | CoroCutĀ® 1-2 head for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 45.1 mm |
| Insert Style | N123K2-0600-0004-TF |
| ANSI Code | 570-40L123K18B058B |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 4 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Overall Height (Decimal) | 0.004 |
| Overall Height (Metric) | 0.1 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 2: Radial Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 3.94 |
| Max. Axial Groove Outside Diameter (Metric) | 100 |
| Max. Cutting Depth (Decimal) | 0.71 |
| Max. Cutting Depth (Metric) | 18 |
| Max. Hole Depth | 18 mm |
| Max. Hole Depth (Decimal) | 0.71 |
| Max. Hole Depth (Metric) | 18 |
| Max. Overhang (Decimal) | 0.71 |
| Max. Overhang (Metric) | 18 |
| Min. Axial Groove Inside Diameter (Decimal) | 2.28 |
| Min. Axial Groove Inside Diameter (Metric) | 58 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.527 LB |
| Height Packed Product Metric | 50 mm |
| Height Packed Product Imperial | 1.969 inch |
| ISO Code (packed) | 570-40L123K18B058B |
| Length Packed Product Metric | 90 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | 570-40L123K18B058B |
| Length Packed Product Imperial | 3.543 inch |
