Sandvik Coromant
6048696
Sandvik Coromant 6048696
Specifications
| Shank Diameter (Metric) | 32 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 1.26 |
| Series | Coromant EH |

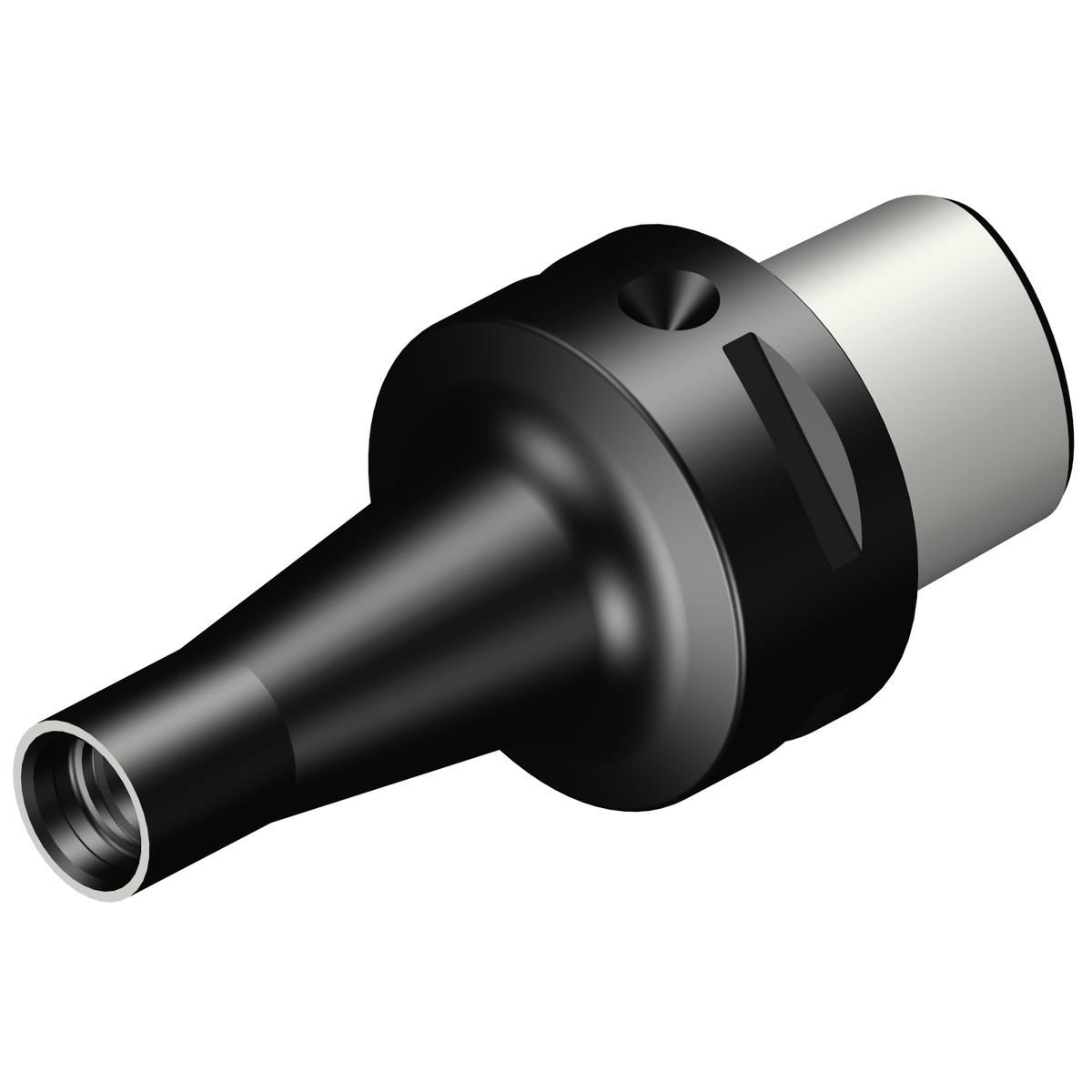

| Short Description | Coromant Capto® to Coromant EH adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 32 mm |
| Overall Length | 54 mm |
| Overall Length (Decimal) | 2.13 |
| Overall Length (Metric) | 54 |
| ANSI Code | C3-391.EH-12 054 |
| Coolant Through | Yes |
| Connection Size | C3 |
| Body Diameter (Decimal) | 0.46 |
| Body Diameter (Metric) | 11.6 |
| Body Length (Decimal) | 0.47 |
| Body Length (Metric) | 12 |
| Functional Diameter (Decimal) | 0.87 |
| Functional Diameter (Metric) | 22 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 11.063 |
| Torque (NM) | 15 |
| Coolant Pressure (Bar) | 150 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2018 |
| Body Length (Inch) | 0.47 |
| Coolant Pressure (lbf/in2) | 2175.57 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 40000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.351 LB |
