Sandvik Coromant
6048707
Sandvik Coromant 6048707
Specifications
| Shank Diameter (Metric) | 40 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 1.58 |
| Series | Coromant EH |

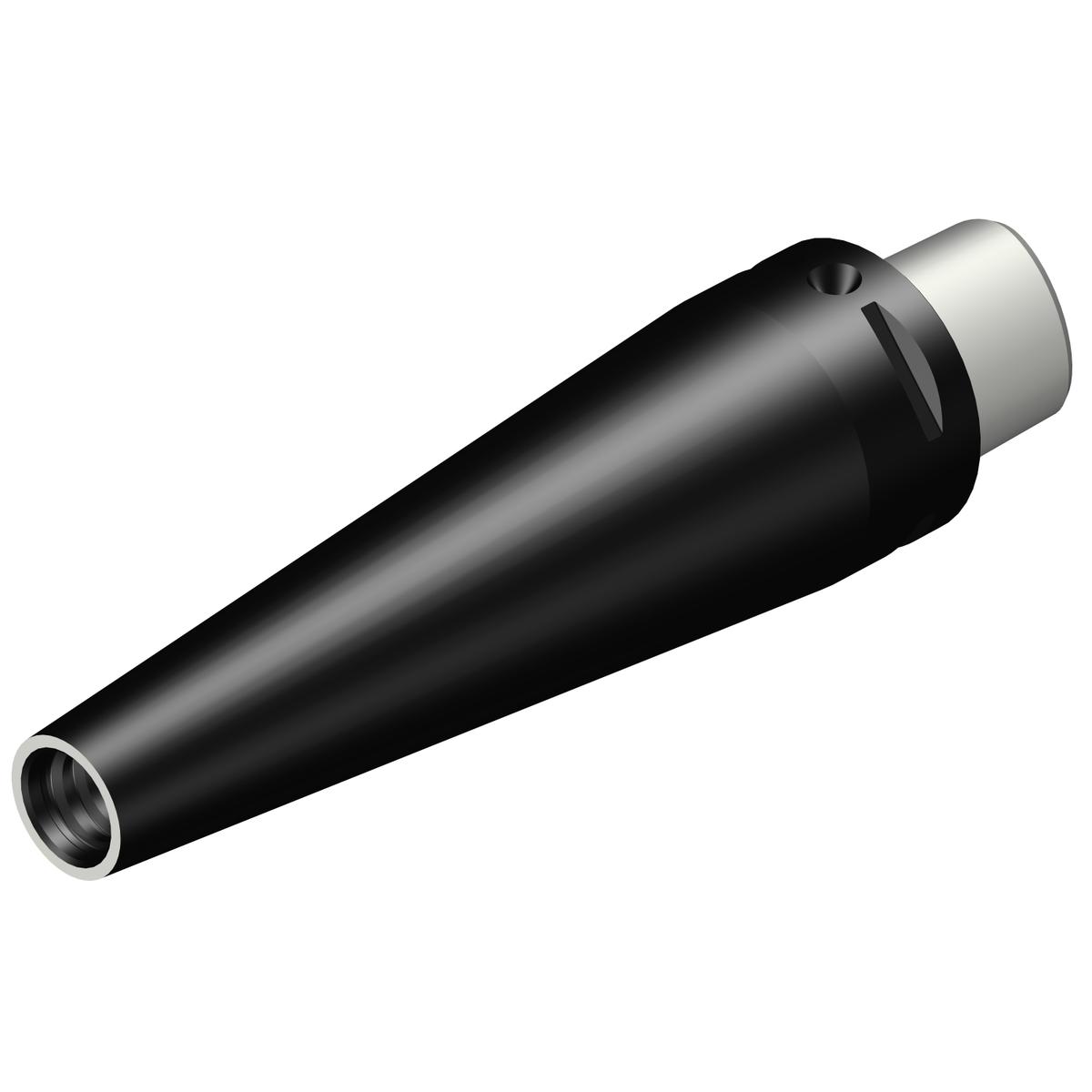

| Short Description | Coromant Capto® to Coromant EH adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 40 mm |
| Overall Length | 139 mm |
| Overall Length (Decimal) | 5.47 |
| Overall Length (Metric) | 139 |
| ANSI Code | C4-391.EH-20 139 |
| Coolant Through | Yes |
| Connection Size | C4 |
| Body Diameter (Decimal) | 1.58 |
| Body Diameter (Metric) | 40 |
| Body Length (Decimal) | 4.69 |
| Body Length (Metric) | 119 |
| Functional Diameter (Decimal) | 1.1 |
| Functional Diameter (Metric) | 28 |
| Body Half Taper Angle | 5 degrees |
| Torque (ft lbf) | 36.878 |
| Torque (NM) | 50 |
| Coolant Pressure (Bar) | 150 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2018 |
| Body Length (Inch) | 4.69 |
| Coolant Pressure (lbf/in2) | 2175.57 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 39000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.26 LB |
